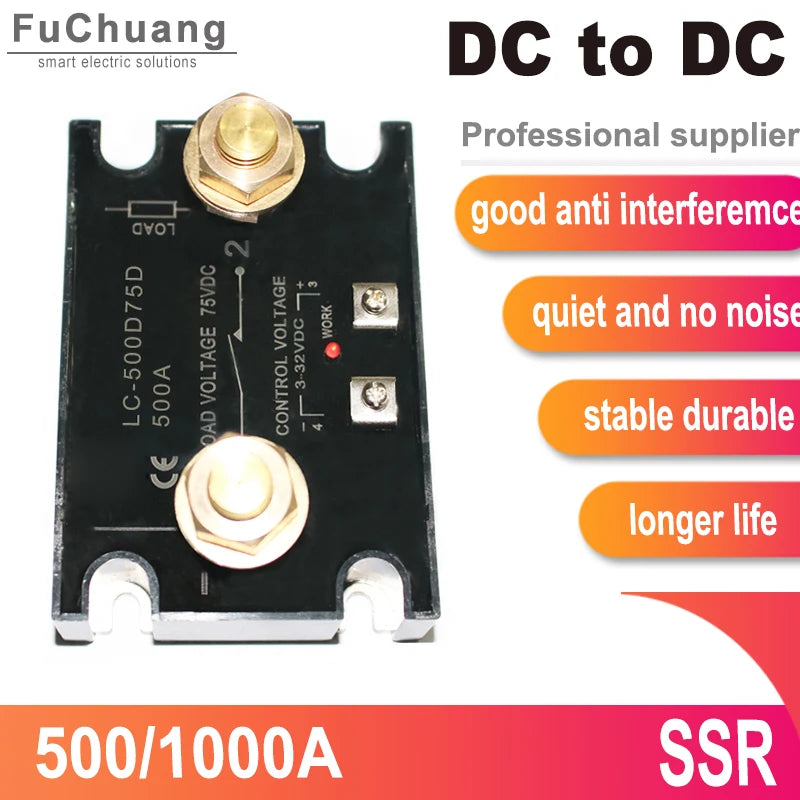

Product details

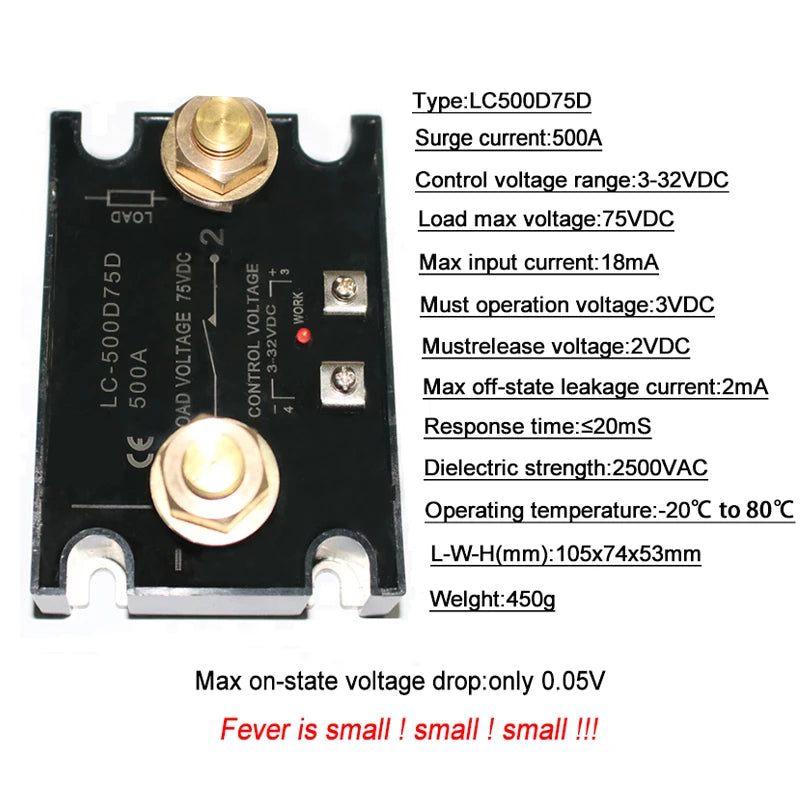

SPECIFICATIONS
Certification: NONE
Contact Load: Low Power
Control Voltage: 3-32VDC
Dielectric strength: 2500VAC
Dimensions: 105*74*53mm
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Input current (max): 18mA
Load Voltage (max): 75VDC

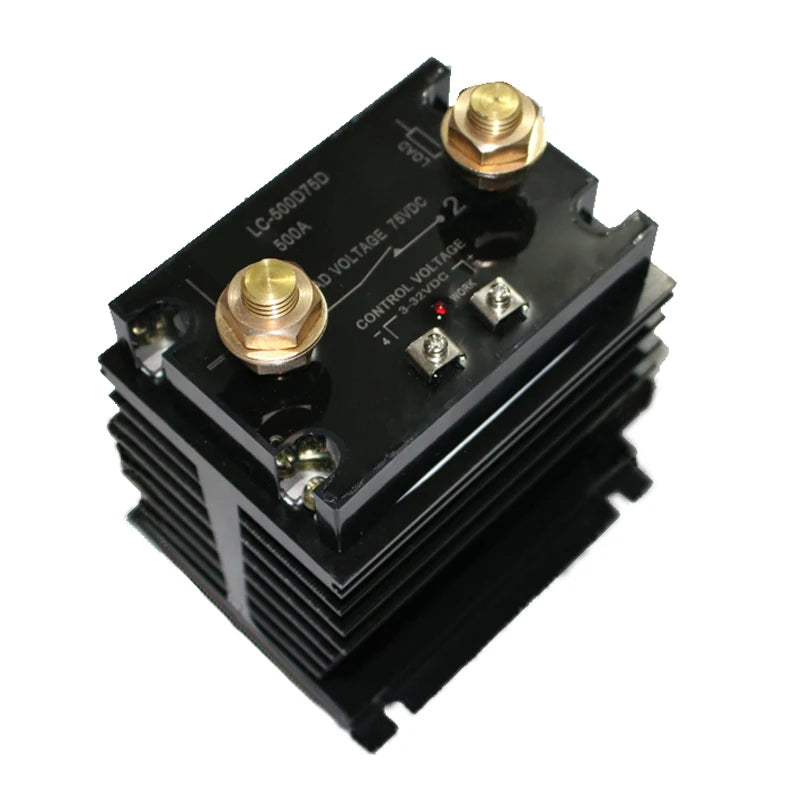

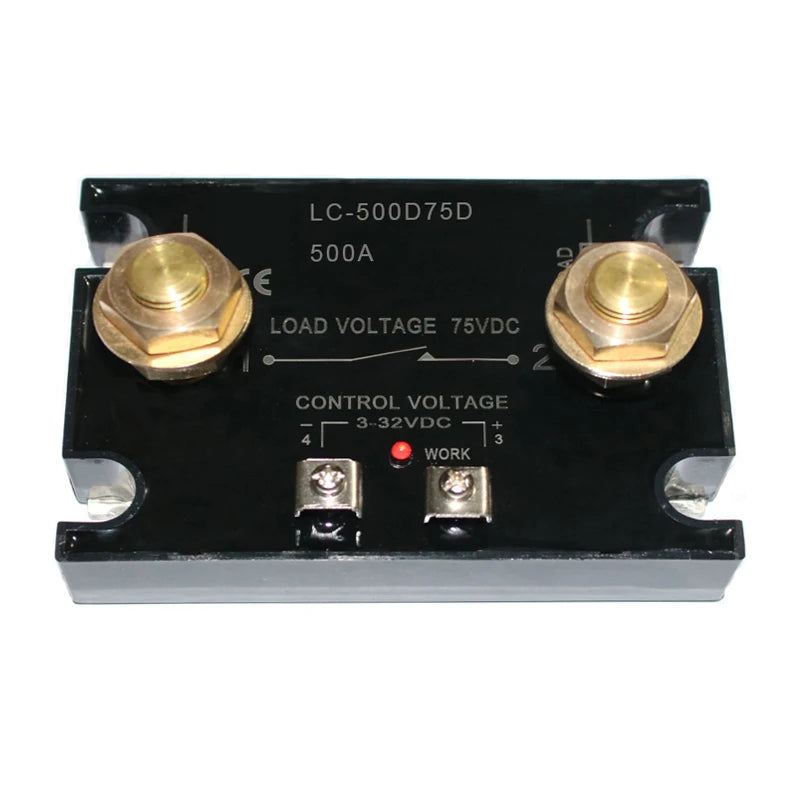

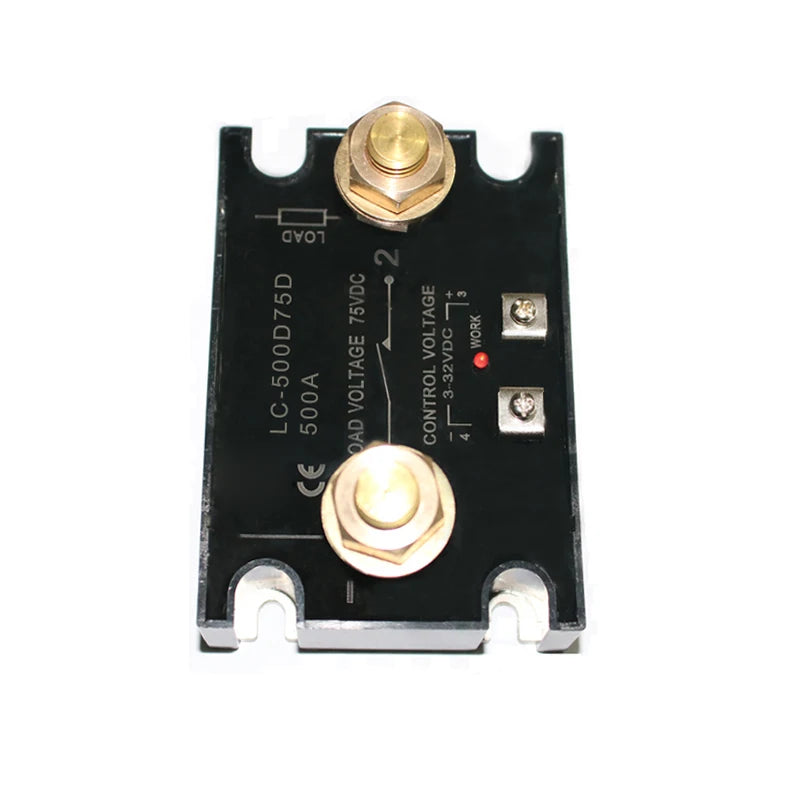

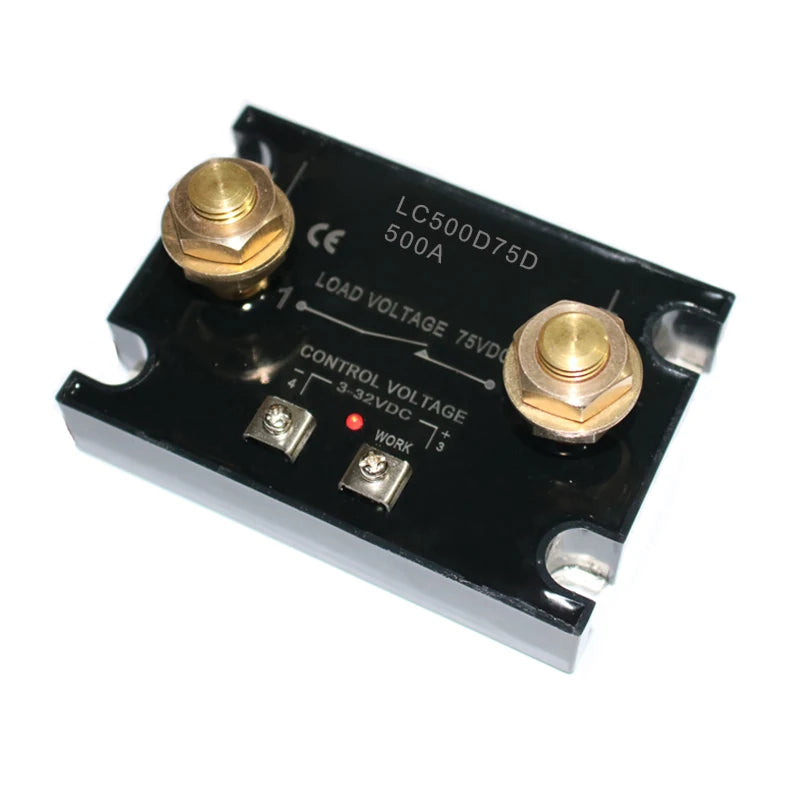

Model Number: LCxxAD75D
Must operation voltage: 3VDC
Mustrelease voltage: 2VDC
Operating temperature: -20C to +80C
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Response time: less than 20mS

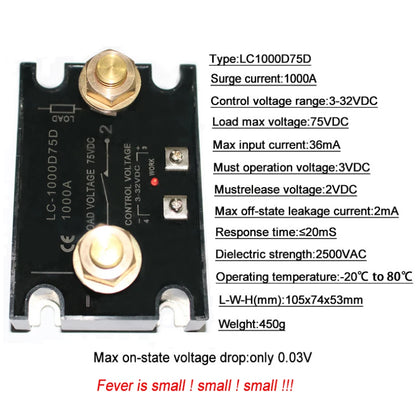

Surge Current: 500A , 1000A
Theory: Solid State Relay
Use: Protective
is_customized: Yes
off-state leakage current (max): 2mA

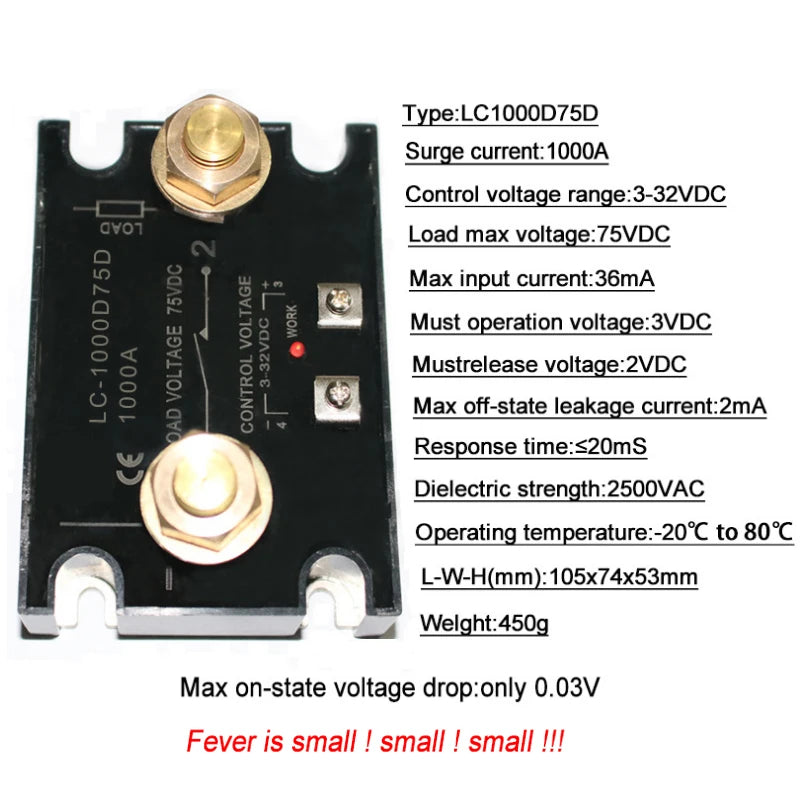

Electrical parameters:
1) Control: DC to DC
2) Load Current: 500A/1000A
3) Control Voltage: 3-32VDC
4) Max Input Current: 18mA
5) Must Operation Voltage: 3VDC
6) Must Release Voltage: 2VDC
7) Load Voltage: 75VDC
8) Operation Temperature: -30℃ to 80℃
9) Max off-state leakage current: 2mA
10) Max on-state voltage drop: ≤0.05V
11) Dielectric strength: 2500V
12) Certificates: CE
13) Dimensions(mm): 105L x 74W x 53H
Features:
1.MOSFET output.
2.With LED indicator.
3.Low on-state resistance.
4.Photo isoation.
Precautions:
1.Must add suppression circuit for inductive load.

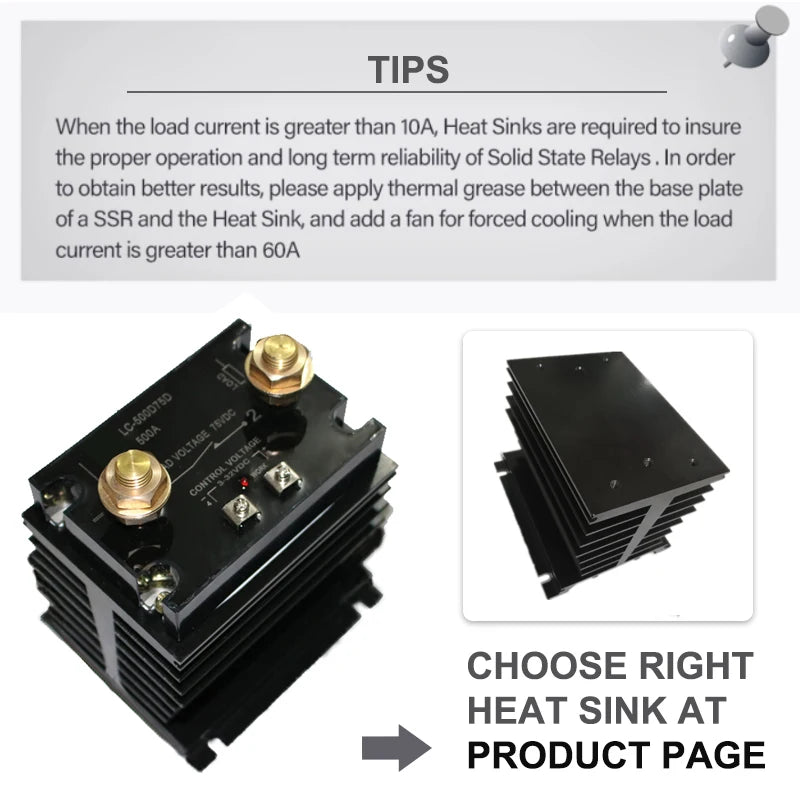

2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink.
3.Tighten the ssr terminal screws properly.
4.Please do not use the relay beyond the descriptions in the data sheet.
STEP 1: Choose a correct control Mode.
DA: DC Control AC
AA: AC Control AC
DD: DC Control DC
VA: Resistance Regulator(Controlled By Potentiometer)
LA: Current Input 4-20mA
VD: Voltage Input 0-10V
STEP 2: Choose a correct type.
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :60%, Inductive load:30%

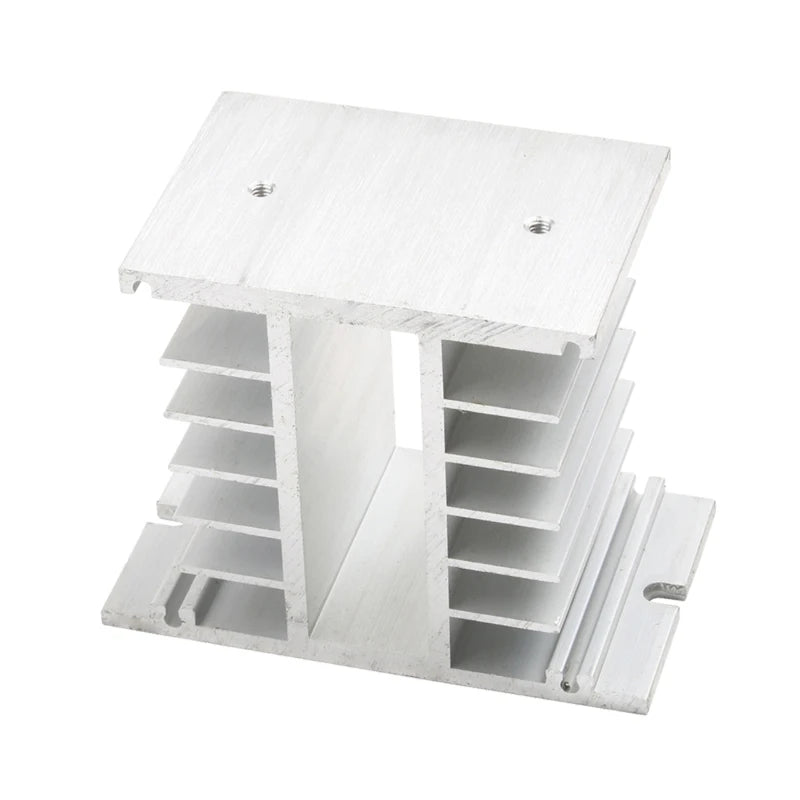

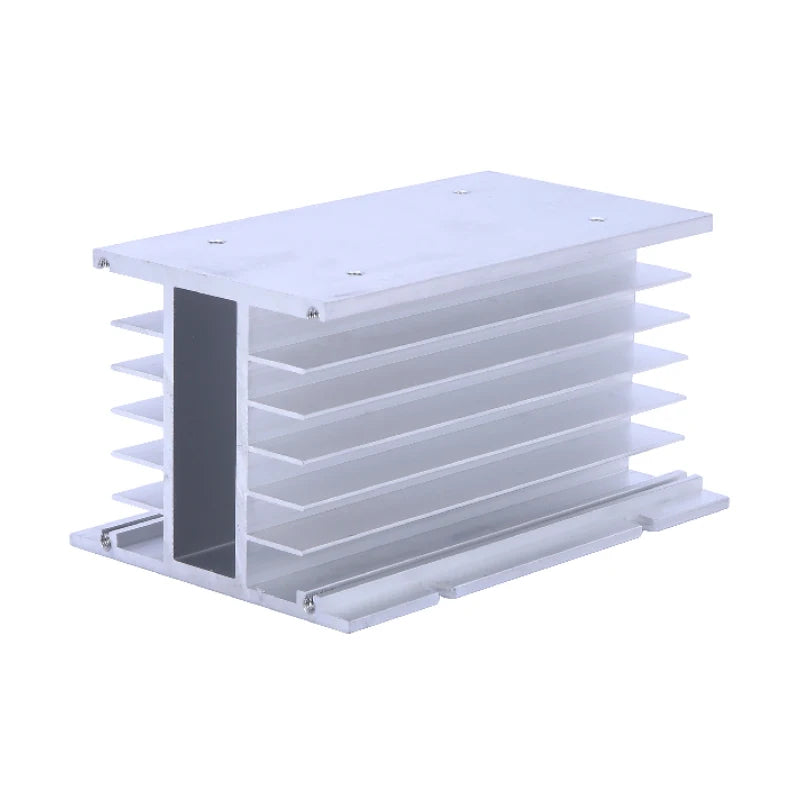

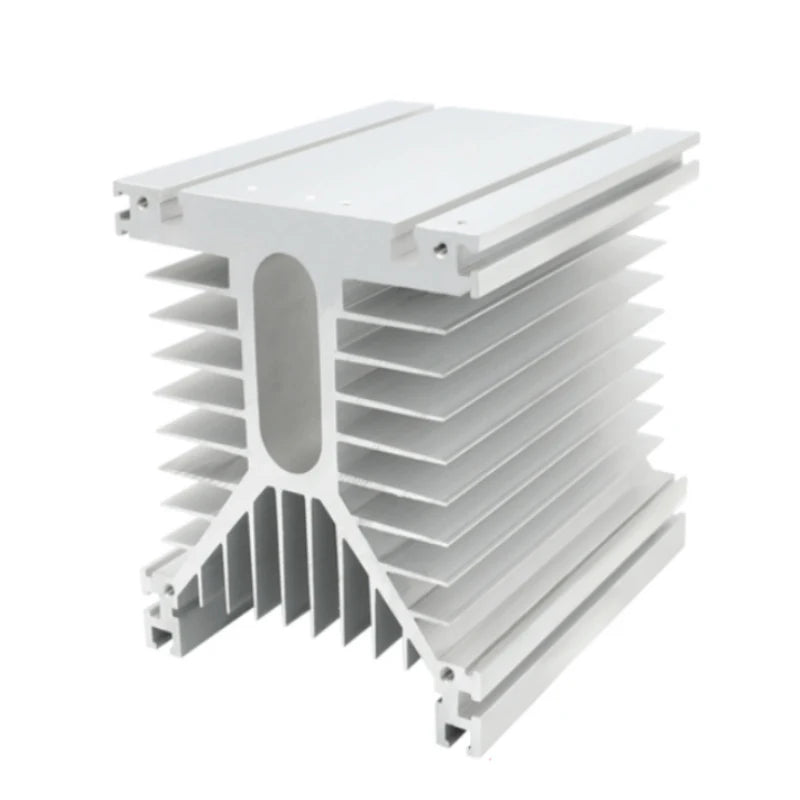

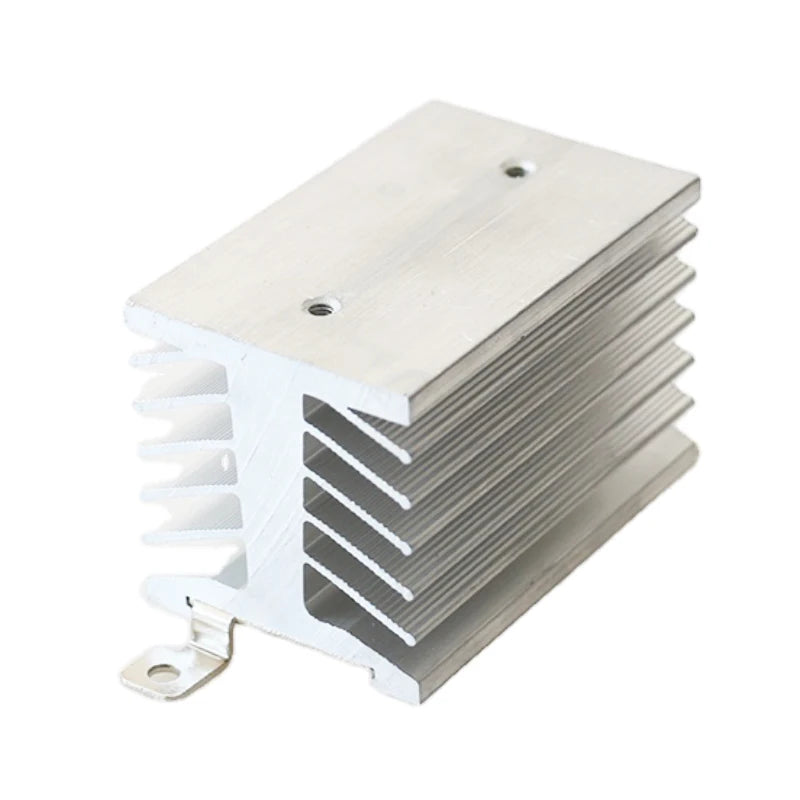

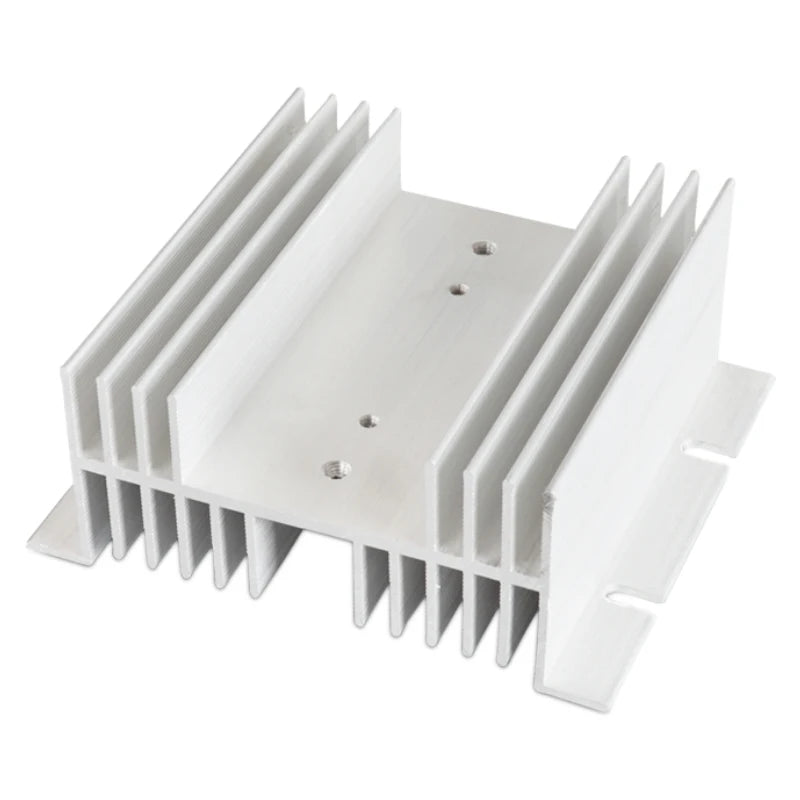

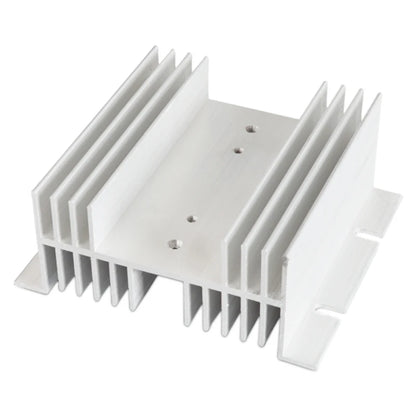

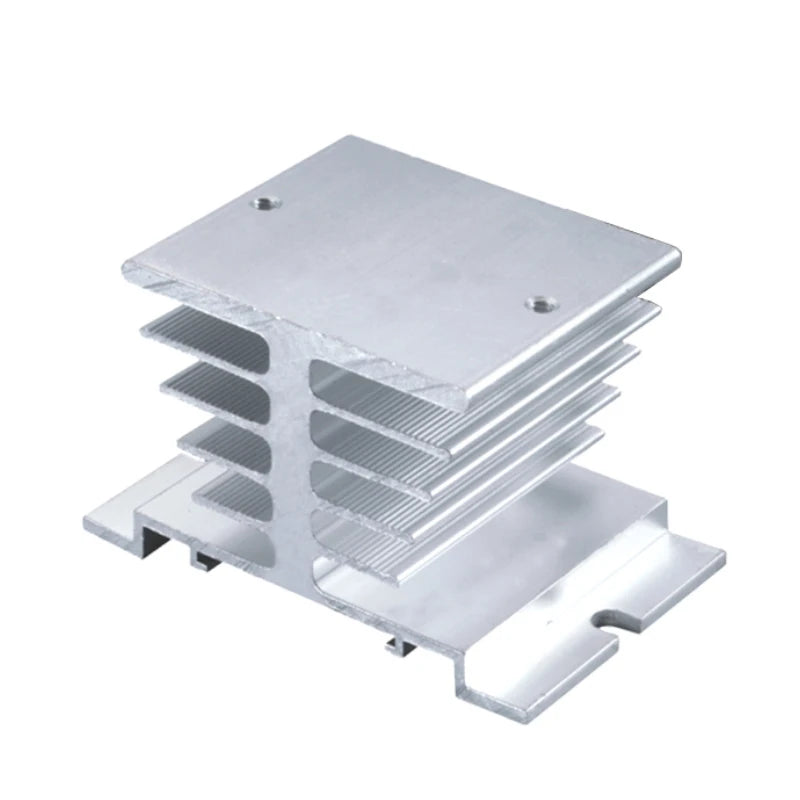

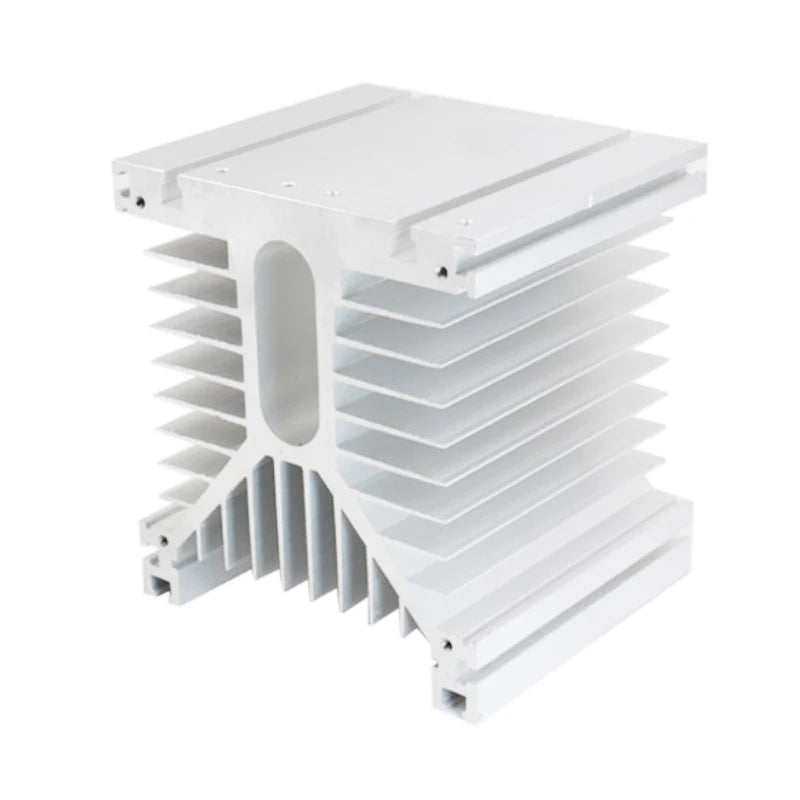

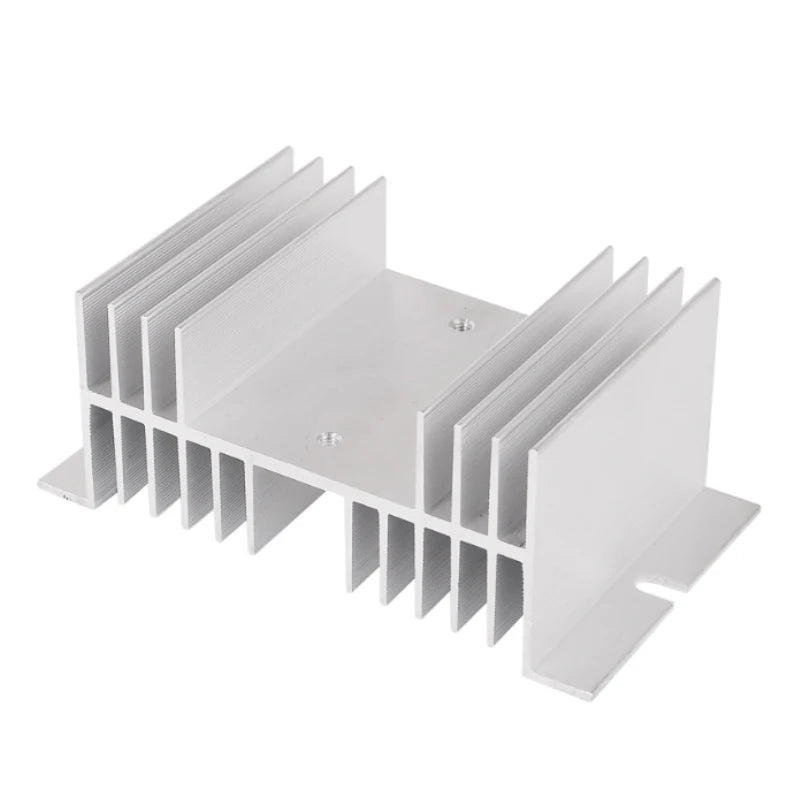

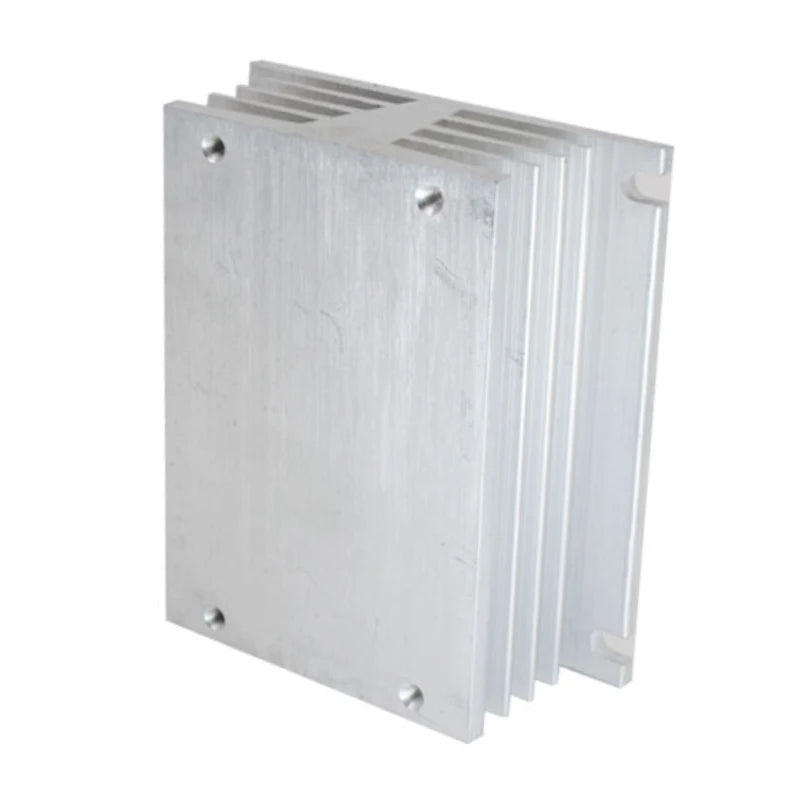

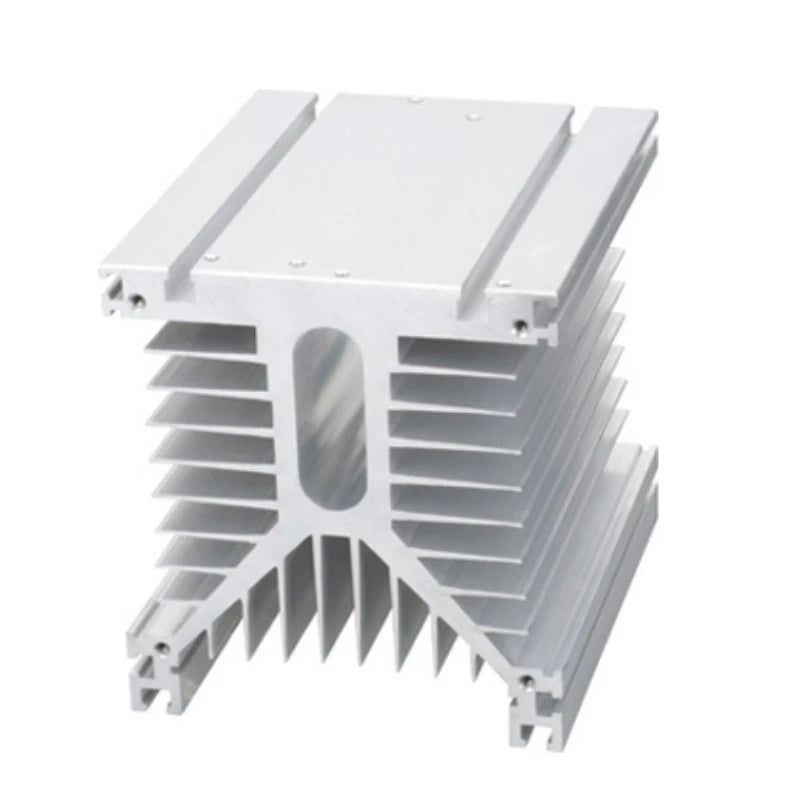

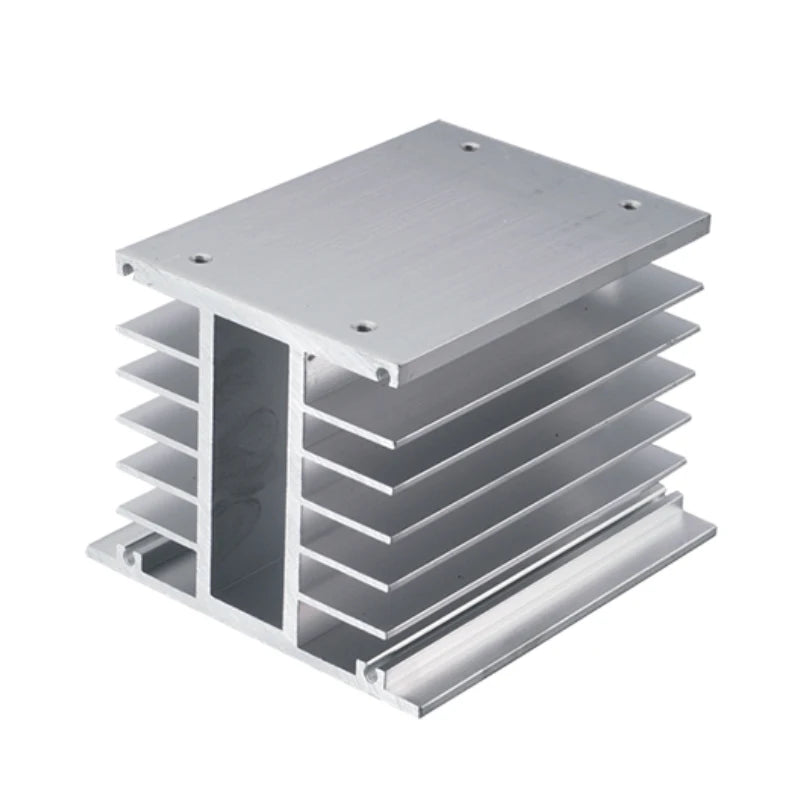

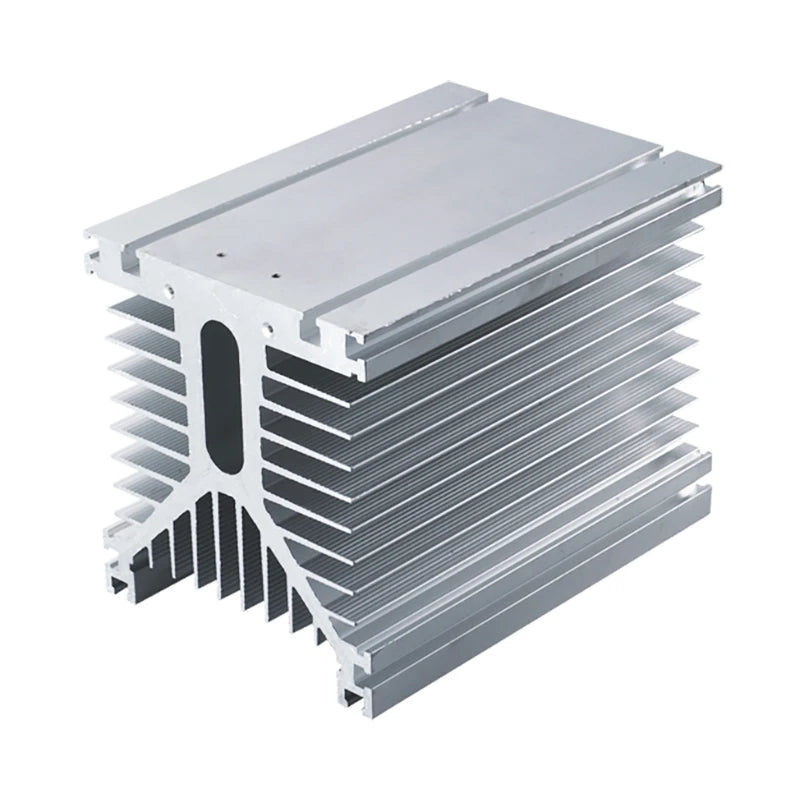

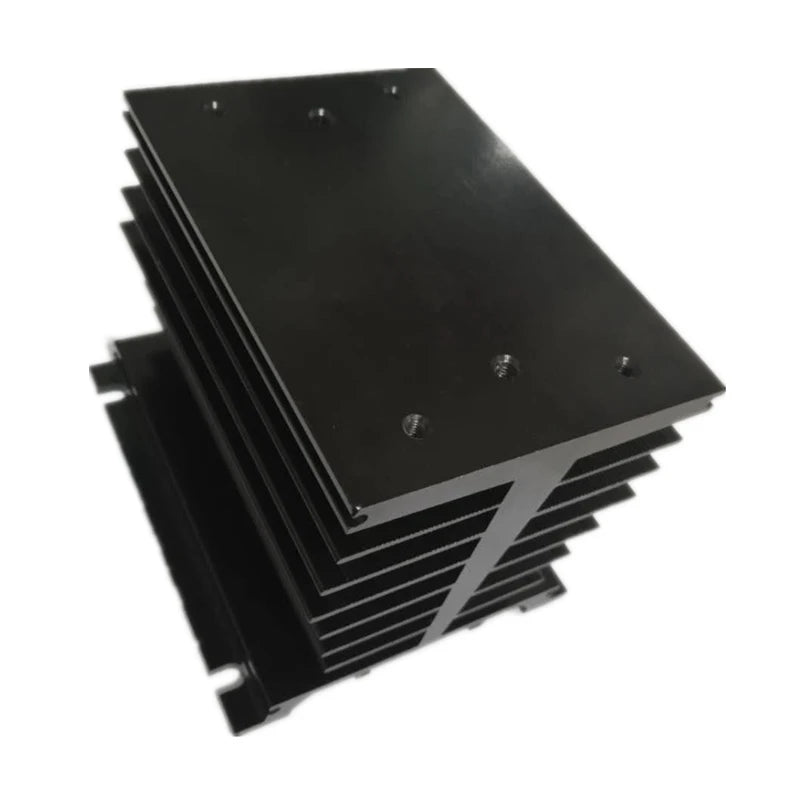

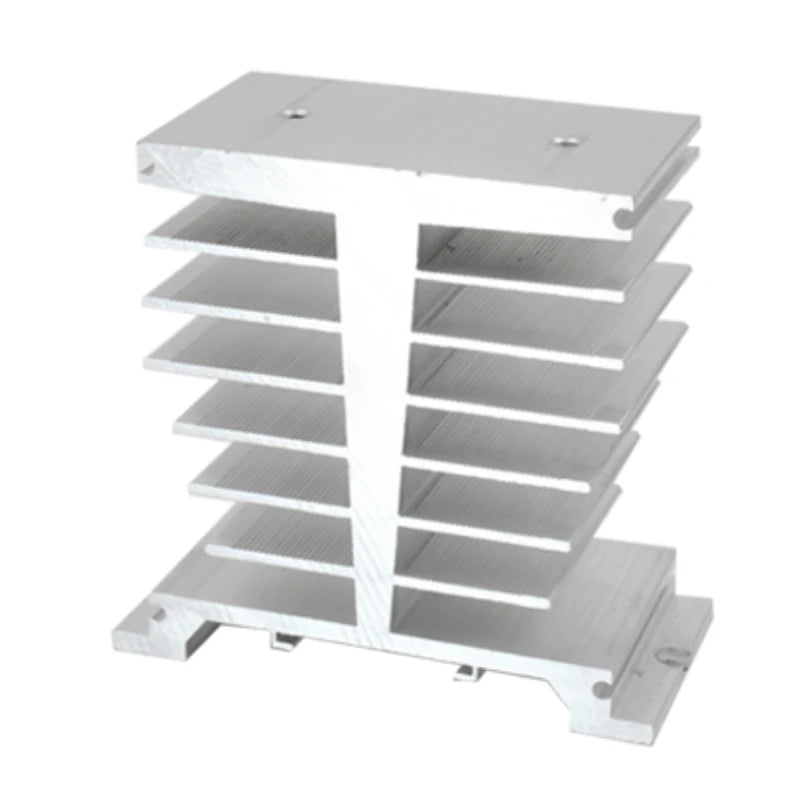

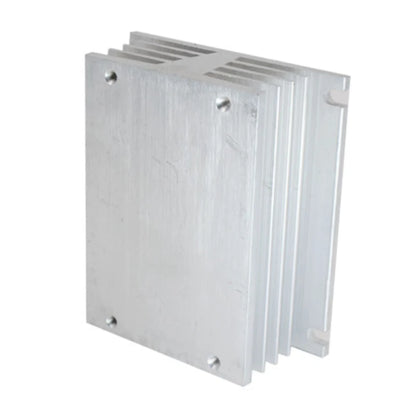

STEP 3: Choose a suitable heat sink.
Type |
Image |
Feature |
Control Mode |
|||||
DC control AC |
AC control AC |
DC control DC |
Resistance Regulator |
Current Input 4-20mA |
Voltage Input 0-10V |
|||

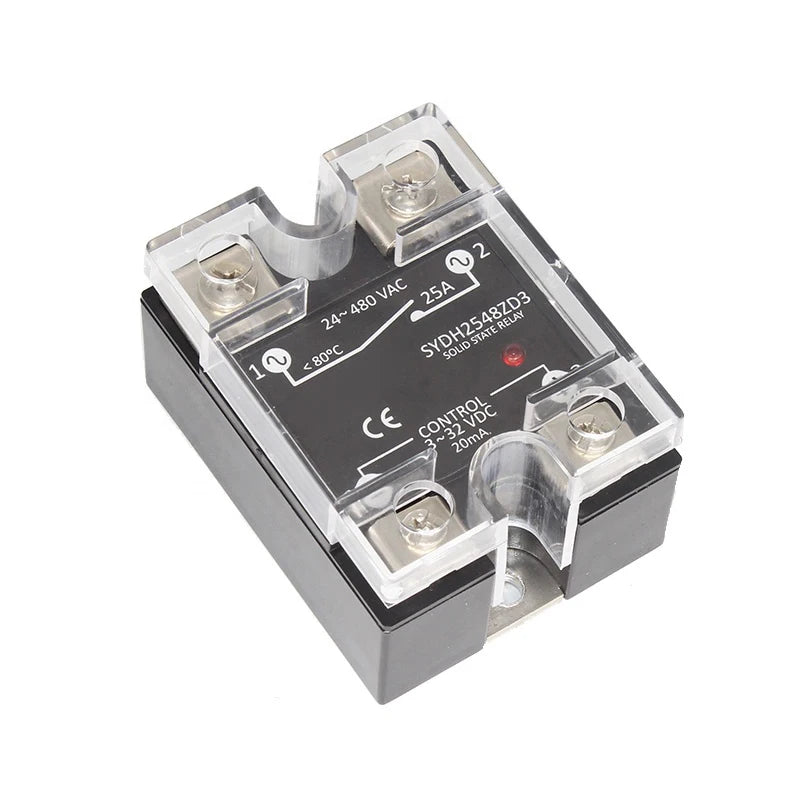

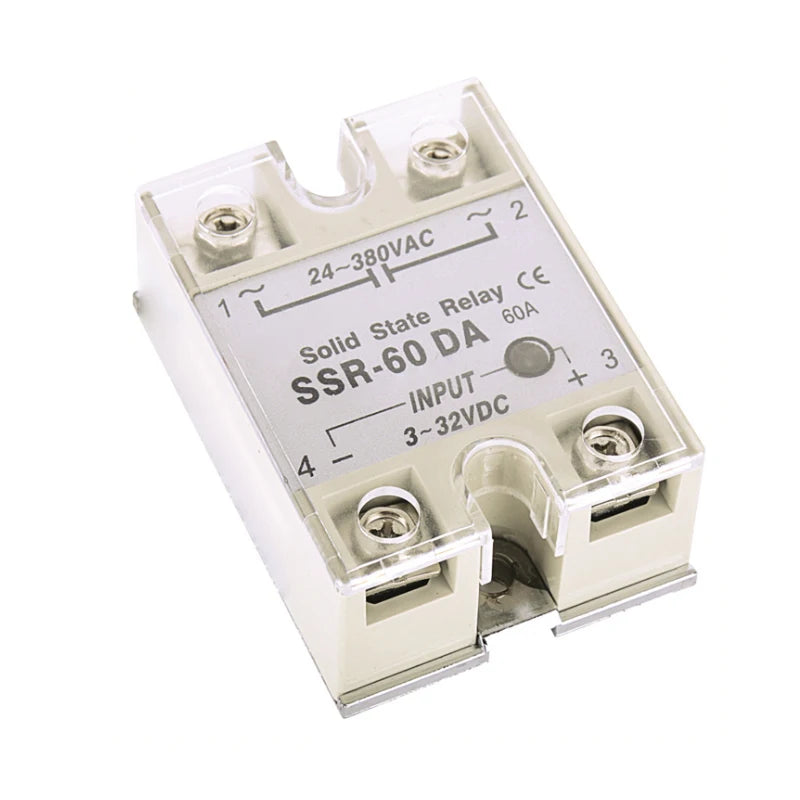

Single Phase |
|
Cost-effective |
Press |
Press |
Press |
Press |
/ |
/ |
|
Better heat dissipation |
Press |
Press |
Press |
Press |
Press |
Press |
|
|
Flip cover design for easy wiring |
Press |
Press |
Press |
Press |
Press |
Press |
|
Type |
Image |
Feature |
Control Mode |
|||||
DC control AC |
AC control AC |
DC control DC |
Resistance Regulator |
Current Input 4-20mA |
Voltage Input 0-10V |
|||
Single Phase |
|

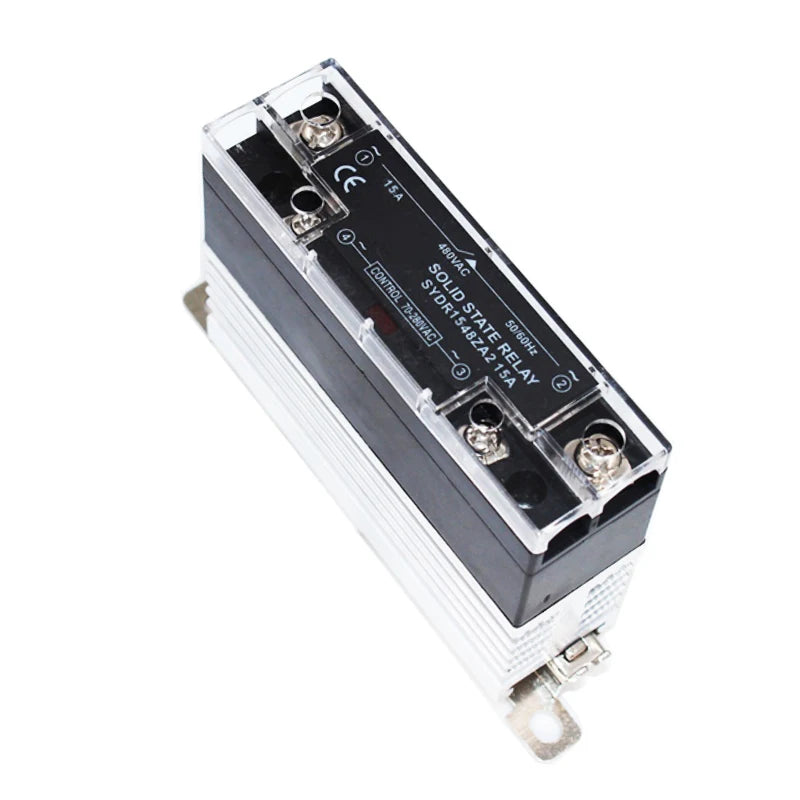

Slim, combined with heatsink, for 10-25A |
Press |
Press |
/ |
/ |
/ |
/ |
|
Slim, combined with heatsink, for 25-40A |
Press |
Press |
/ |
/ |
/ |
/ |
|
Type |
Image |
Feature |
Control Mode |
|||||
DC control AC |
AC control AC |
DC control DC |
Resistance Regulator |
Current Input 4-20mA |
Voltage Input 0-10V |
|||
Single Phase |
|

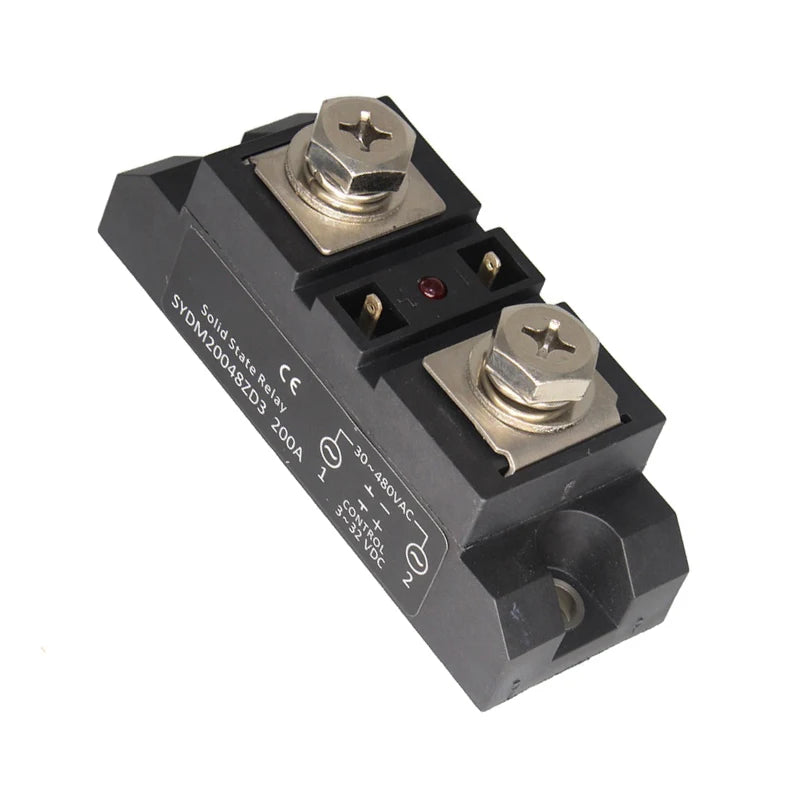

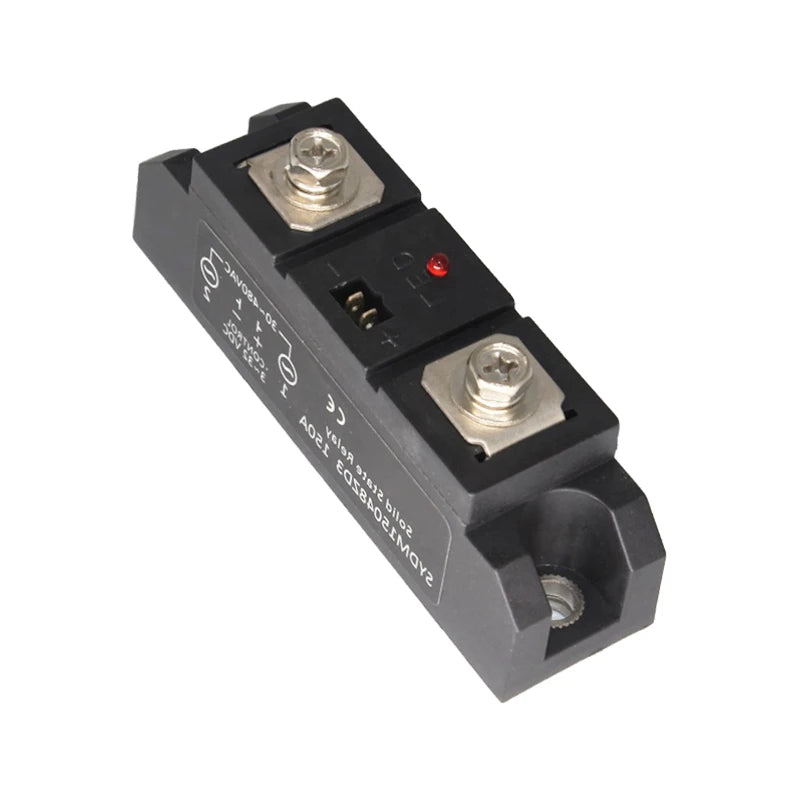

Industrial SSR, for 60-120A |
Press |
Press |
/ |
/ |
/ |
/ |
|

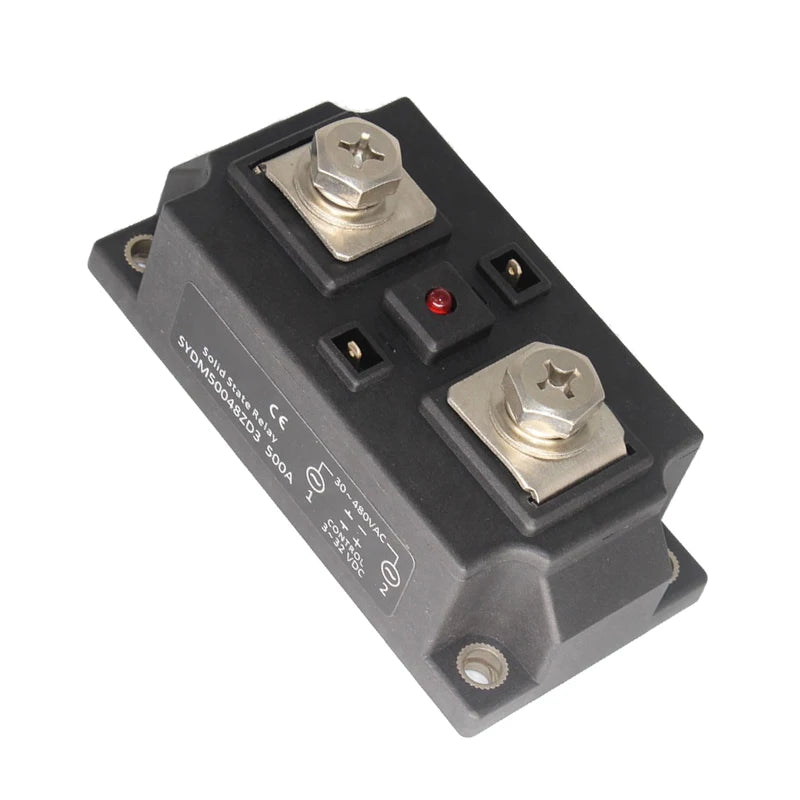

Industrial SSR, for 200-400A |
Press |
Press |
/ |
/ |
/ |
/ |
|
|
Industrial SSR, for 400-500A |
Press |
Press |
/ |
/ |
/ |
/ |
|
Type |
Image |
Feature |
Control Mode |
|||||
DC control AC |
AC control AC |
DC control DC |
Resistance Regulator |
Current Input 4-20mA |
Voltage Input 0-10V |
|||

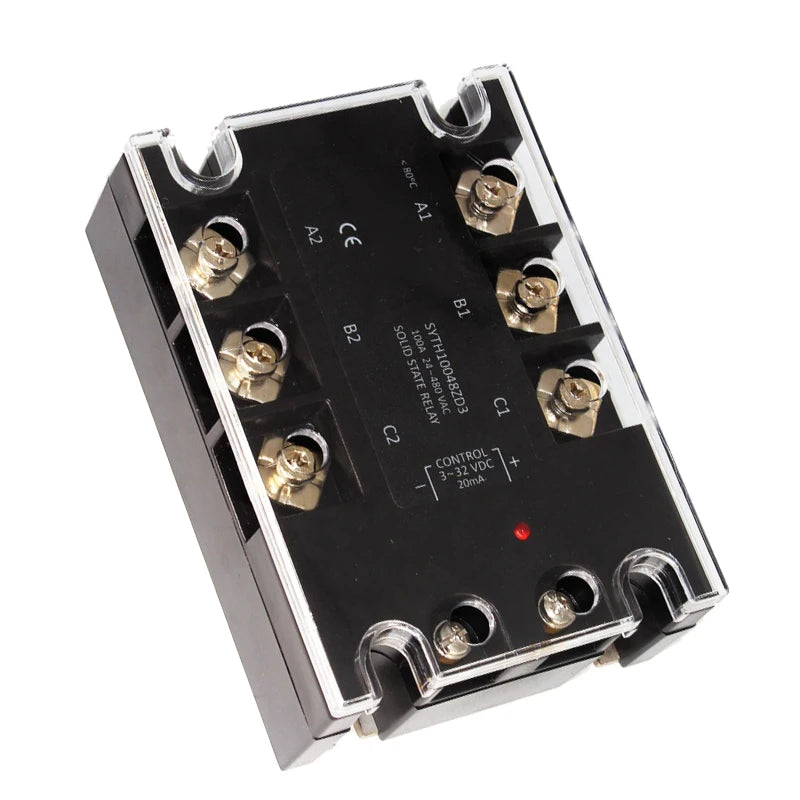

Three Phase |
|
Universal |
Press |
Press |
/ |
/ |
/ |
/ |
|

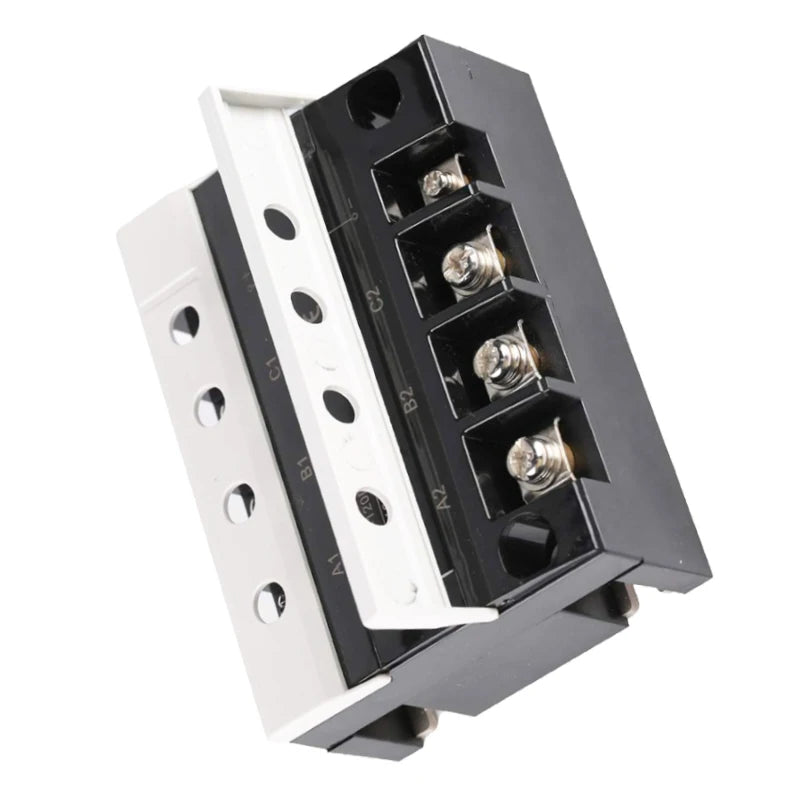

Flip cover design for easy wiring |
Press |
Press |
/ |
/ |
/ |
/ |
|
Product |
Image |
Function |
Matched relay |
Link |

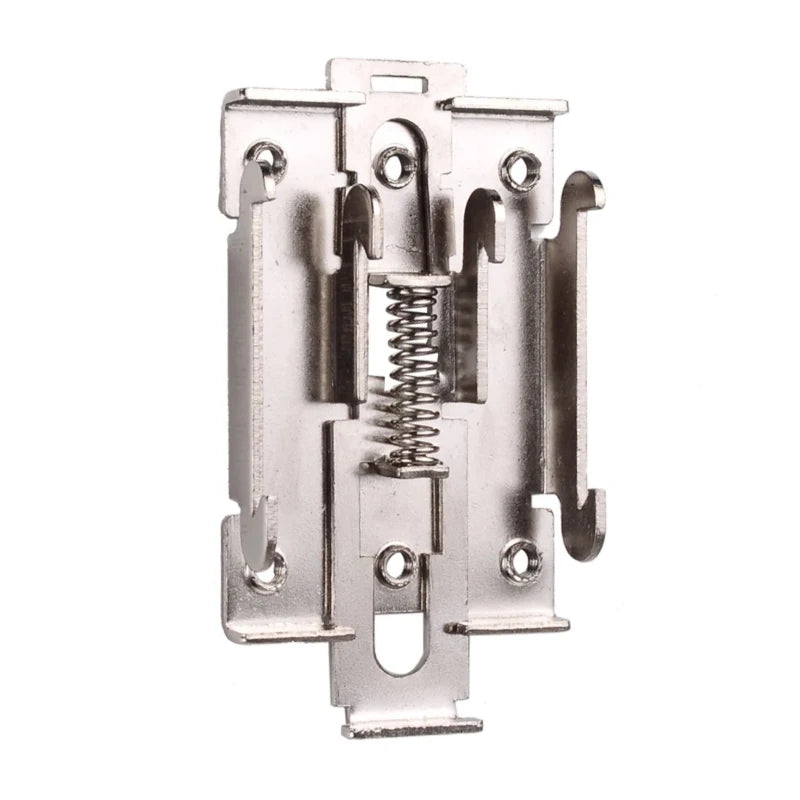

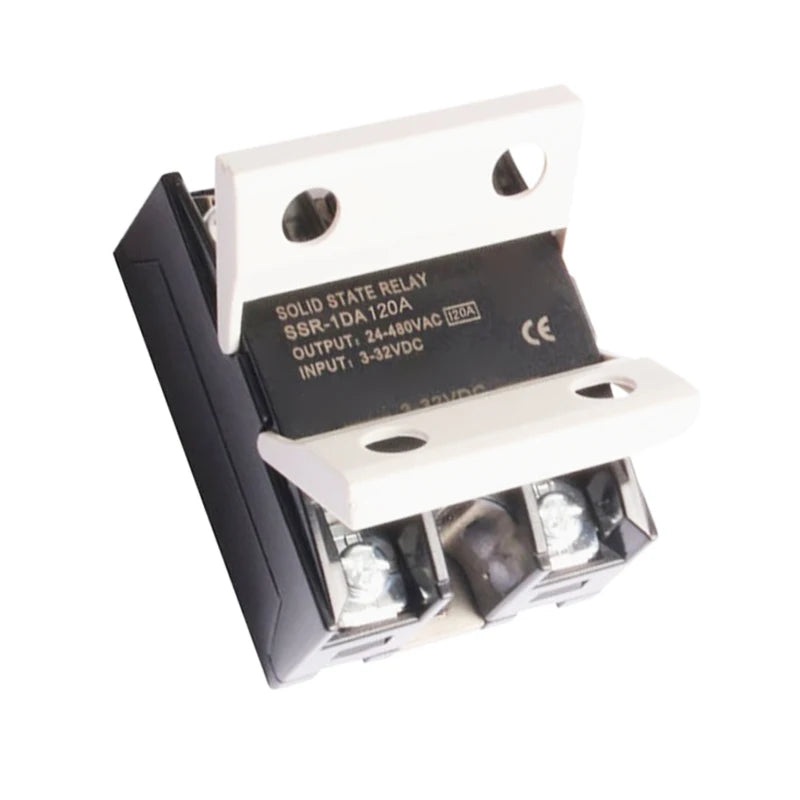

Relay Buckle |
|
35mm Rail Mounting Fixed |
Single Phasee SSR, 1 piece |
Press |
Model |
Image |
Matched relay |
Link |
I-50 |
|
Single Phase SSR, 1 piece, 10-25A |
Press |
W-70 |
|
Single Phase SSR, 1 piece, 10-40A |
Press |
D-74 |
|
Single Phase SSR, 1 piece, 10-40A |
Press |
H-50 |
|
Single Phase SSR, 1 piece, 10-60A |
Press |
W-100 |
|
Single Phase SSR, 1 piece, 10-80A |
Press |
I-96 |
|
Single Phase SSR, 1 piece, 10-120A |
Press |
Y-80 |
|
Industrial SSR, 1 piece, 60-100A |
Press |
Y-110 |
|
Industrial SSR, 1 piece, 60-200A |
Press |
Y-150 |
|
Industrial SSR, 1 piece, 60-400A |
Press |
Three phase SSR, 1 piece, 10-120A | |||
Y-200 |
|
Industrial SSR, 1 piece, 60-500A |
Press |
|
F-100 |
|
Three phase SSR, 1 piece, 10-25A |
Press |
|
H-110 |
|
Three phase SSR, 1 piece, 10-60A |
Press |
H-150 |
|
Three phase SSR, 1 piece, 10-80A |
Press |
