Product Introduction

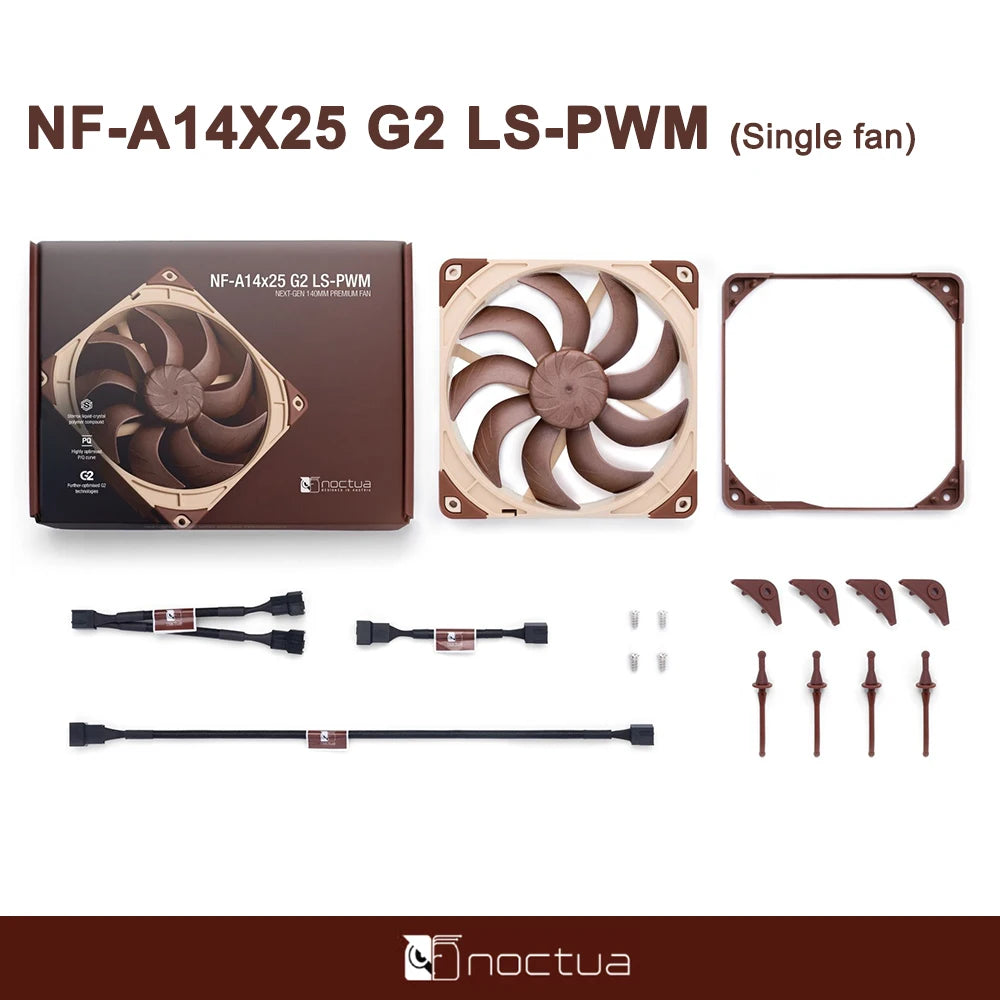

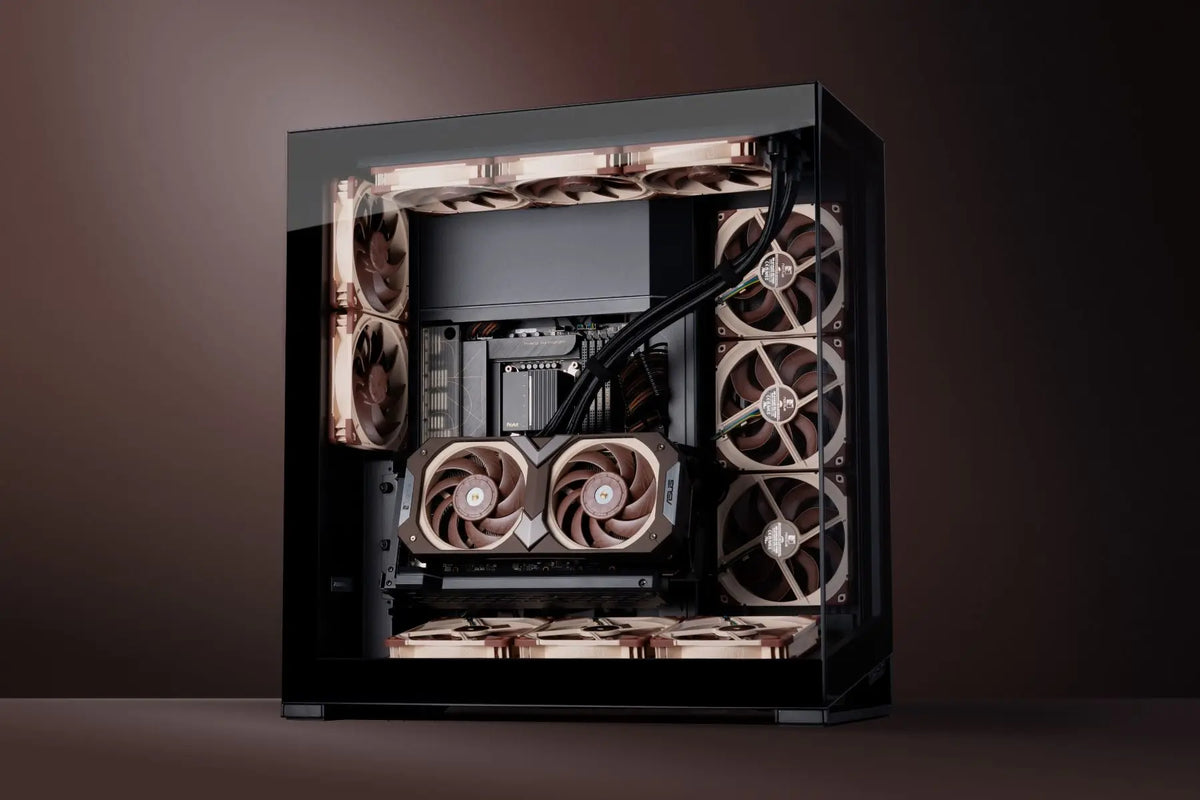

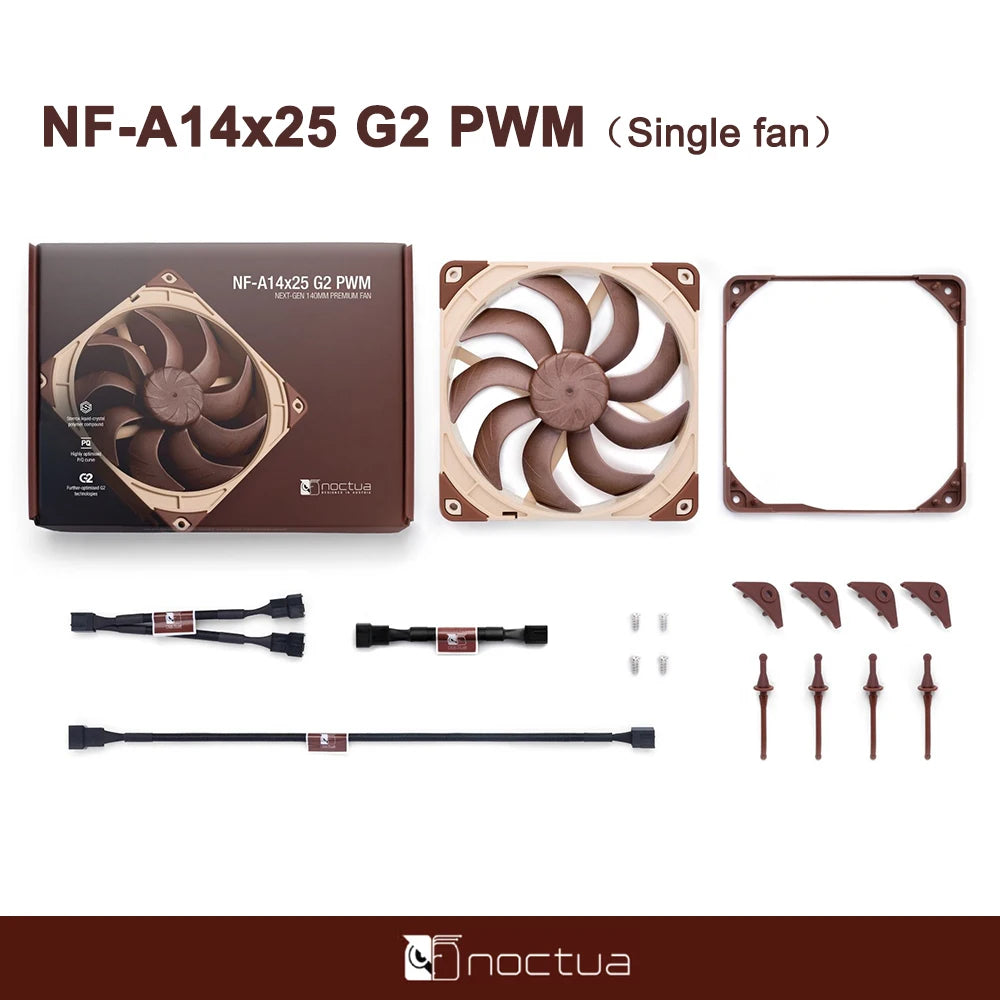

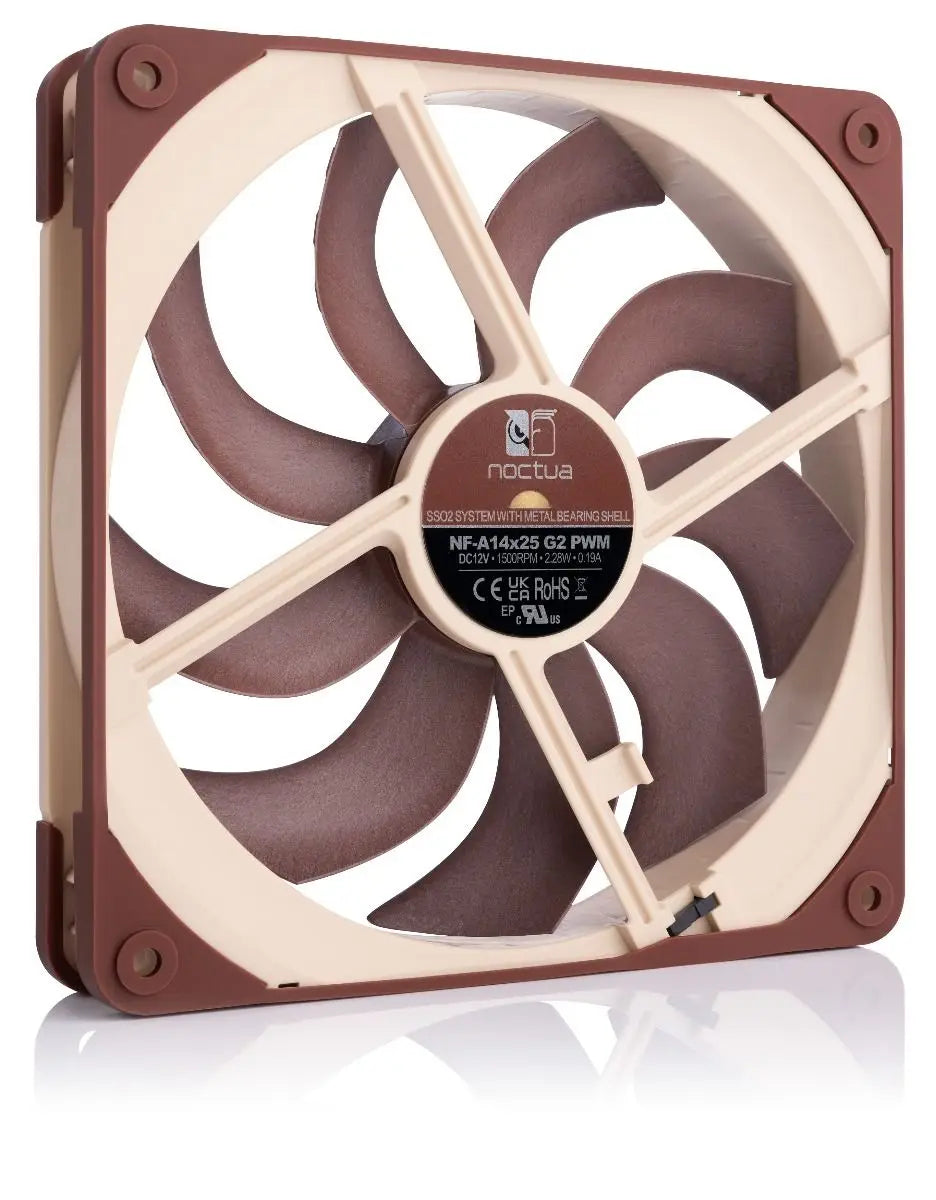

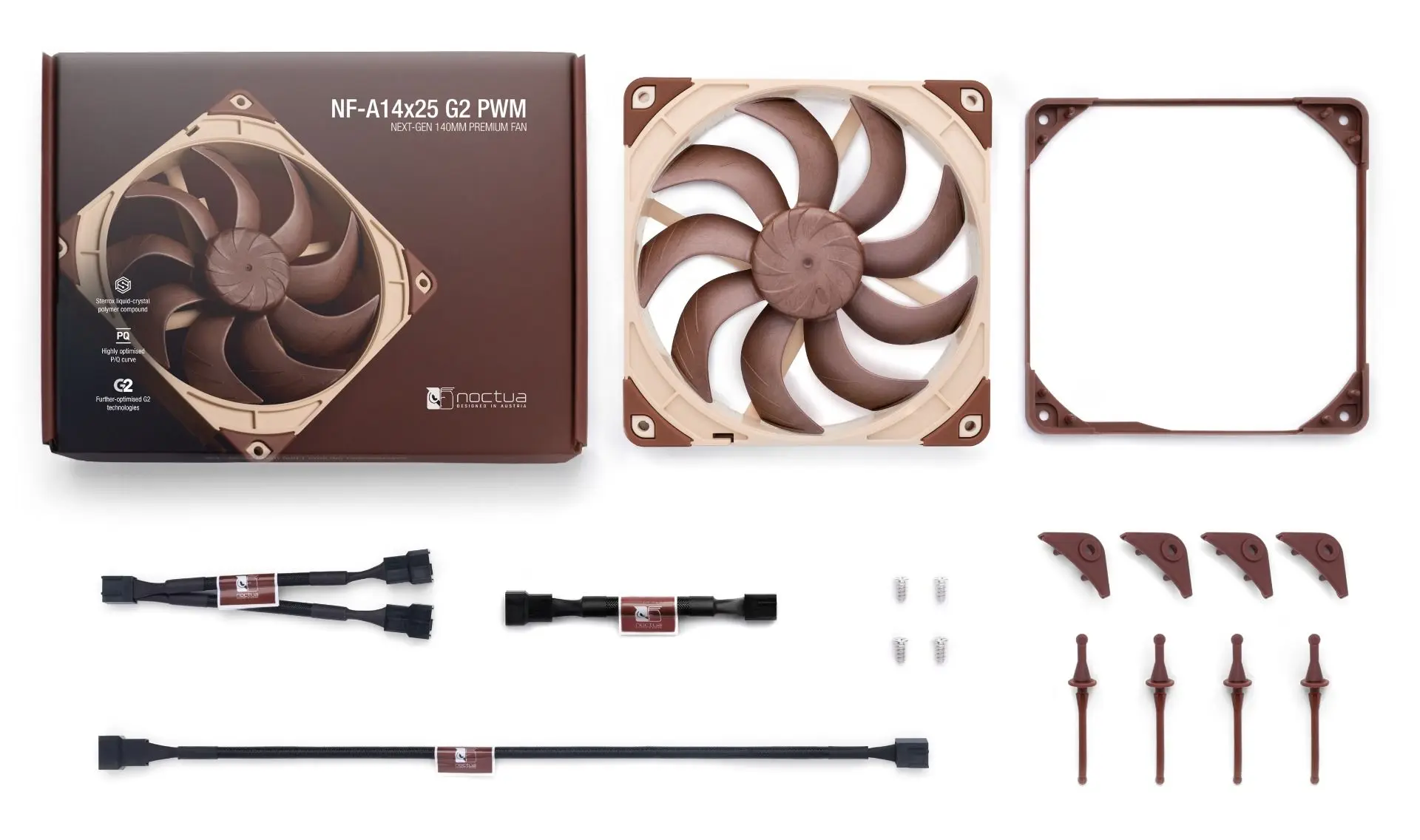

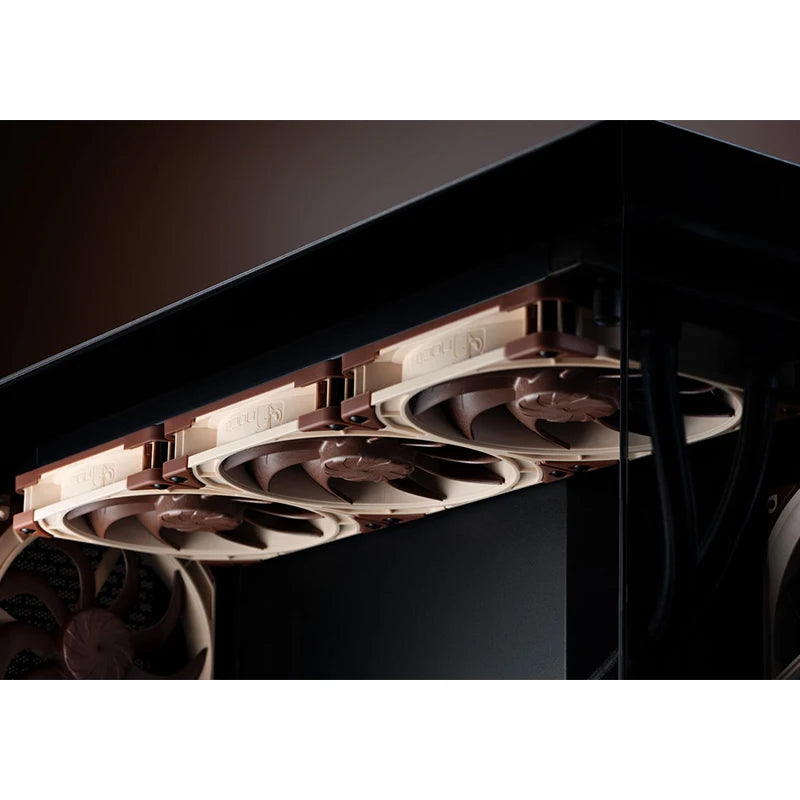

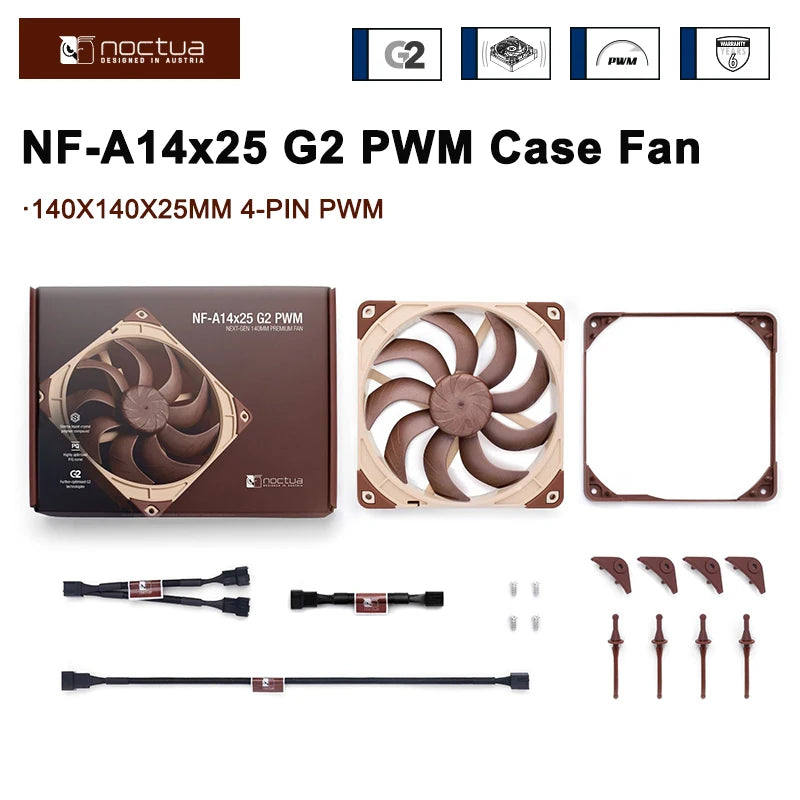

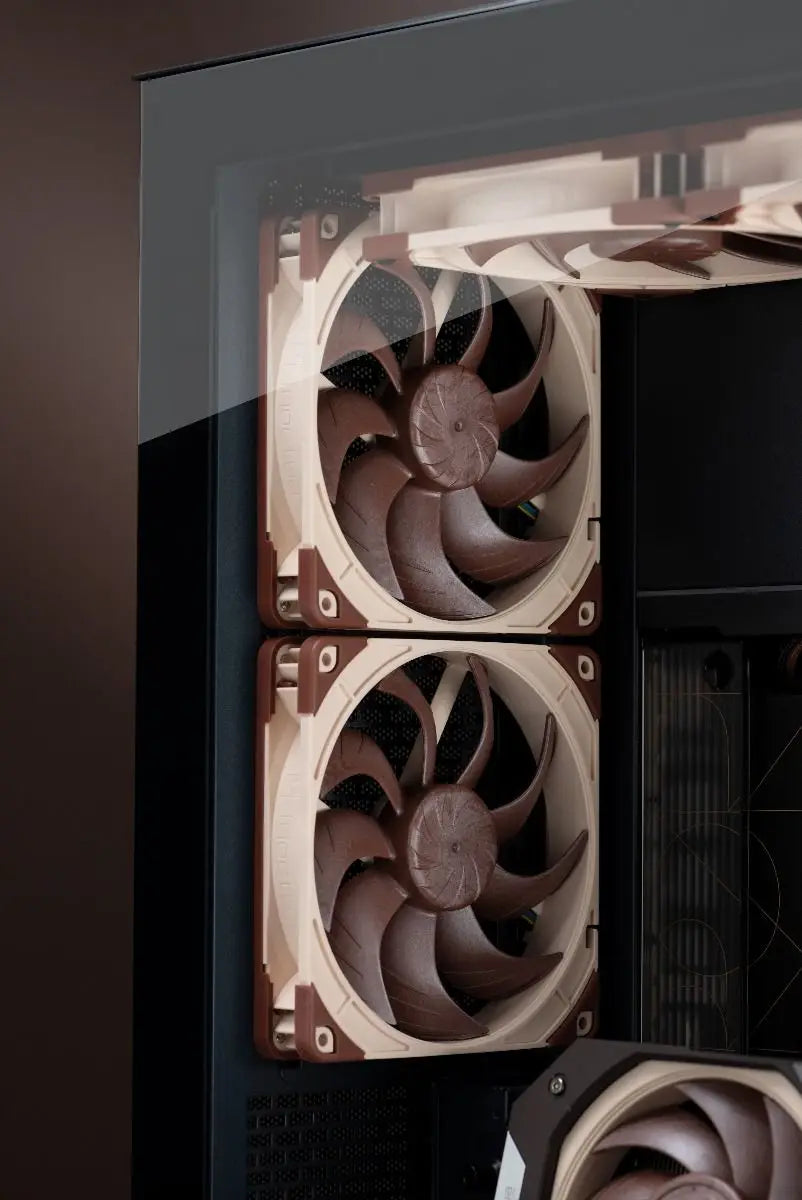

Succeeding the award-winning NF-A14 and building on the technological innovations of the ground-breaking NF-A12x25, the NF-A14x25 G2 is ’s next-generation square-frame 140mm flagship model: Made from Sterrox® LCP, its highly optimised Progressive-Bend impeller with winglets, Flow Acceleration Channels and Centrifugal Turbulator hub combined with a tip-clearance of only 0.7mm allow the NF-A14x25 G2 to further improve its predecessor’s renowned quiet cooling performance. Like the NF-A14 and NF-A12x25, it is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, static pressure demanding scenarios such as on heatsinks and water cooling radiators. For application-specific optimisation, the NF-A14x25 G2 comes with an NA-AVG2-LR anti-vibration gasket pre-installed to create a tighter seal on radiators. Additionally, its AAO (Advanced Acoustic Optimisation) frame can be combined with the optional NA-IS1-14 inlet spacer, which can help to achieve superior suction acoustics and flow rates in challenging intake configurations. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 1500 to 1250rpm. Its ultra-low-loss etaPERF™ motor with Smooth Commutation Drive 2 technology doesn’t only provide unprecedented energy efficiency and running smoothness, but thanks to the new SupraTorque™ feature, it can also leverage extra torque headroom to keep the fan at its desired speed when working against back pressure, thereby ensuring even better performance on heatsinks and radiators. Topped off with ’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A14x25 G2 is a premium-quality product through and through. Its superior performance, comprehensive feature set, cutting-edge construction and state-of-the-art materials set a new standard within ’s portfolio and make it an elite choice for the most discerning demands.

Next-generation performance

’s NF-A14 is renowned as being among the best 140mm fans on the market and has received more than 100 awards and recommendations from the international press. With its further improved efficiency and novel, state-of-the-art engineering, the NF-A14x25 G2 represents another step up in performance and manufacturing.

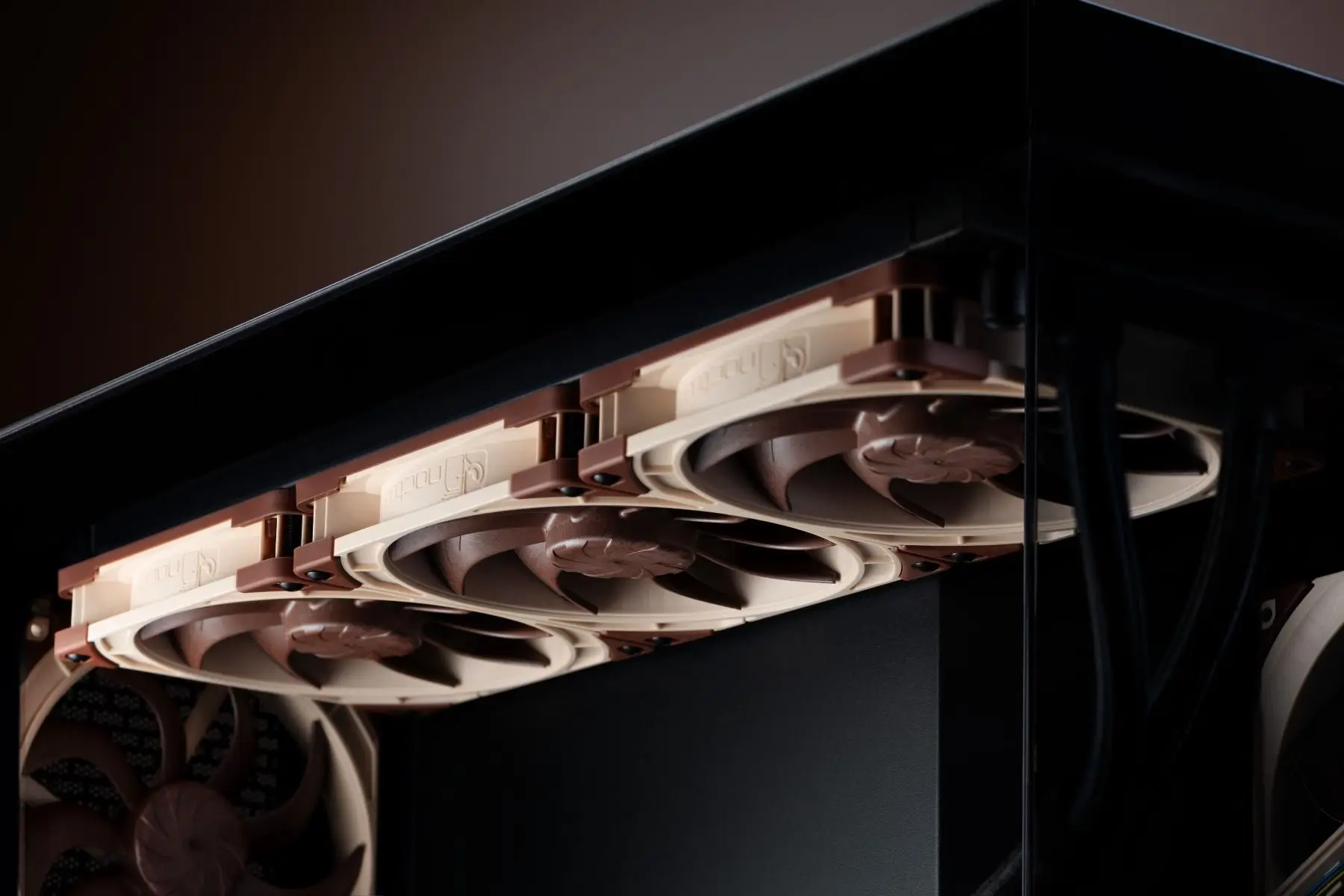

Excellent on-application acoustics

While many fans produce unpleasant, high-pitched noises when installed in typical applications such as on heatsinks or radiators, the NF-A14x25 G2 has been carefully fine-tuned for optimal on-application acoustics. It produces a smooth, pleasant frequency profile and surprisingly low sound pressure levels (SPL) when working against back pressure.

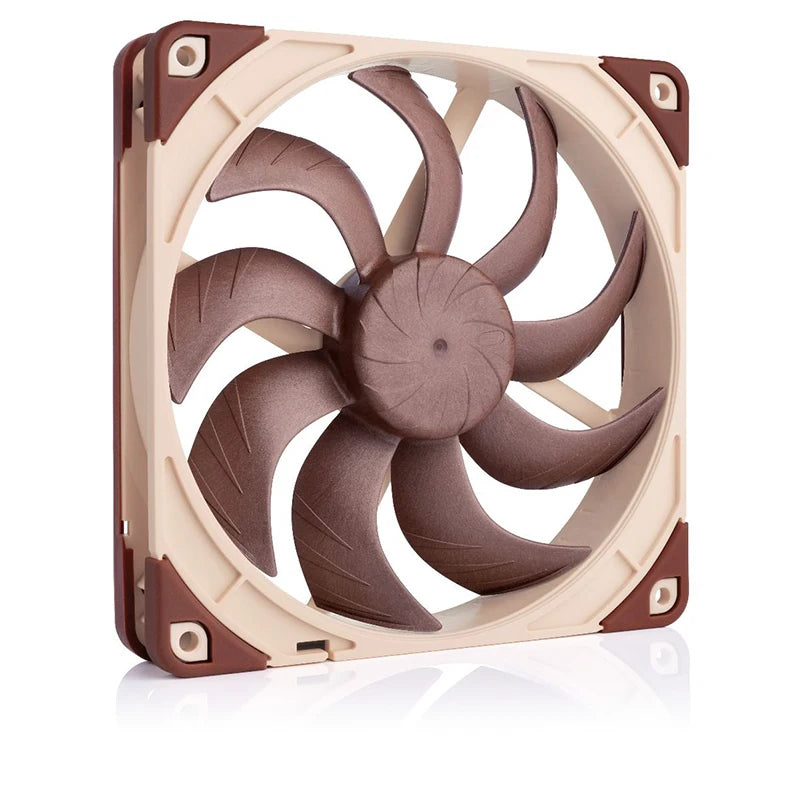

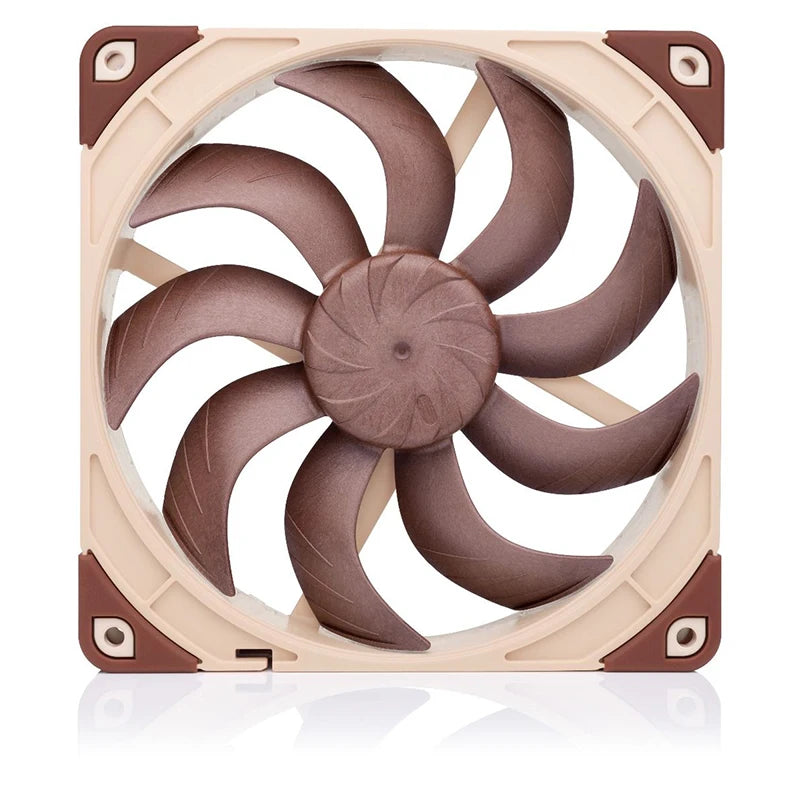

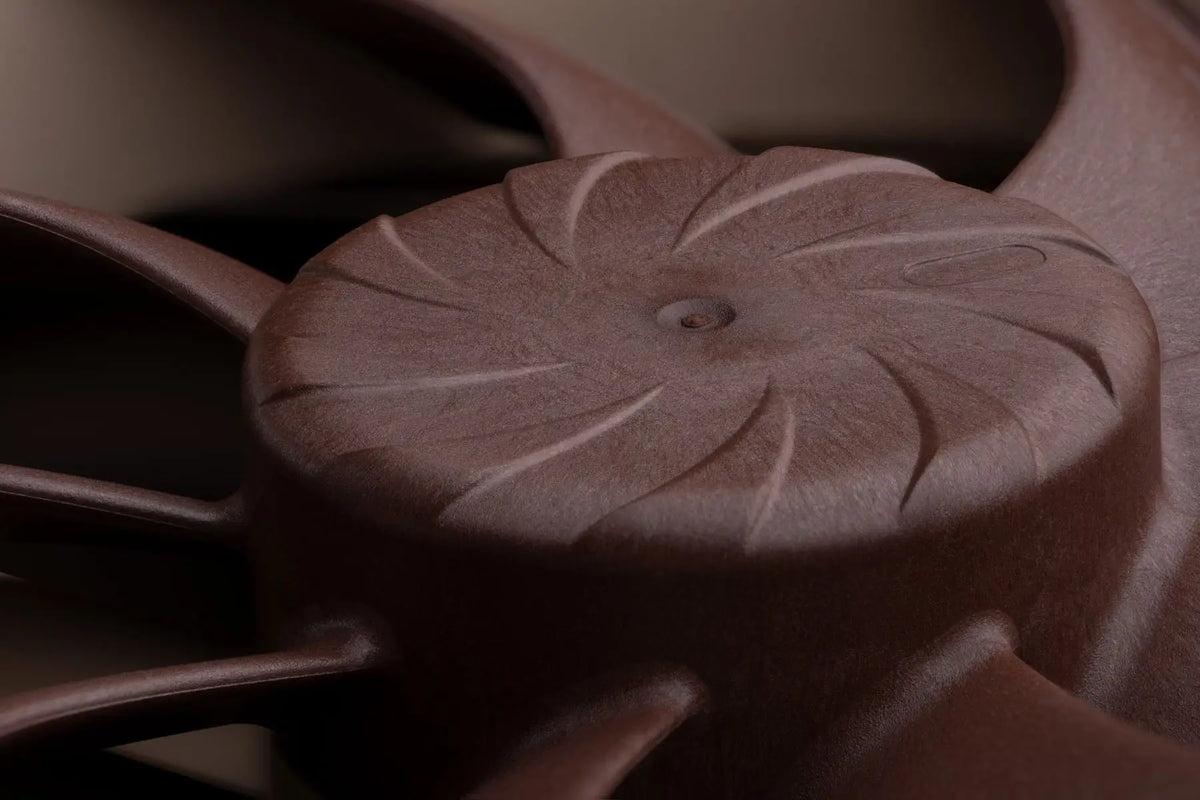

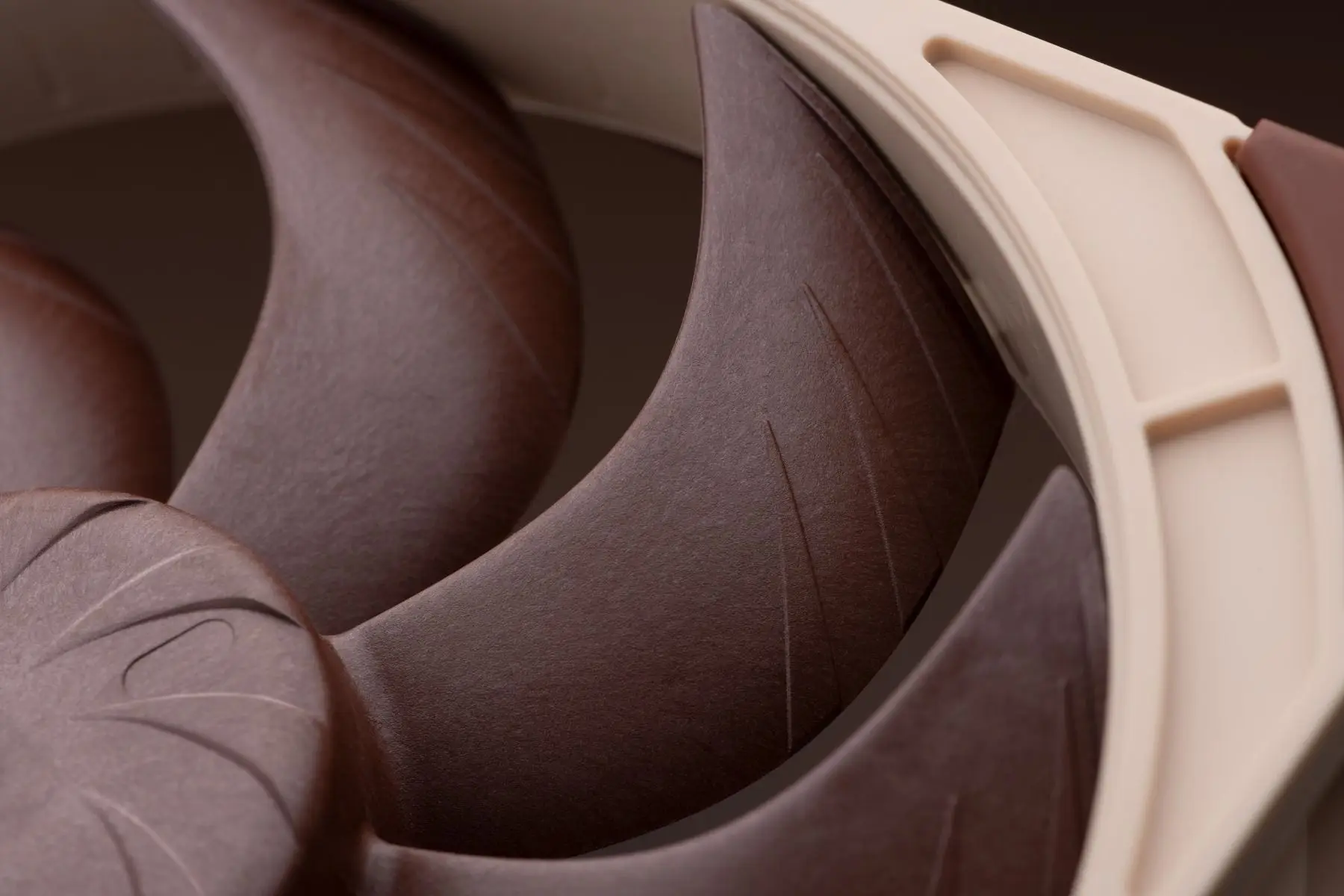

Progressive-Bend impeller

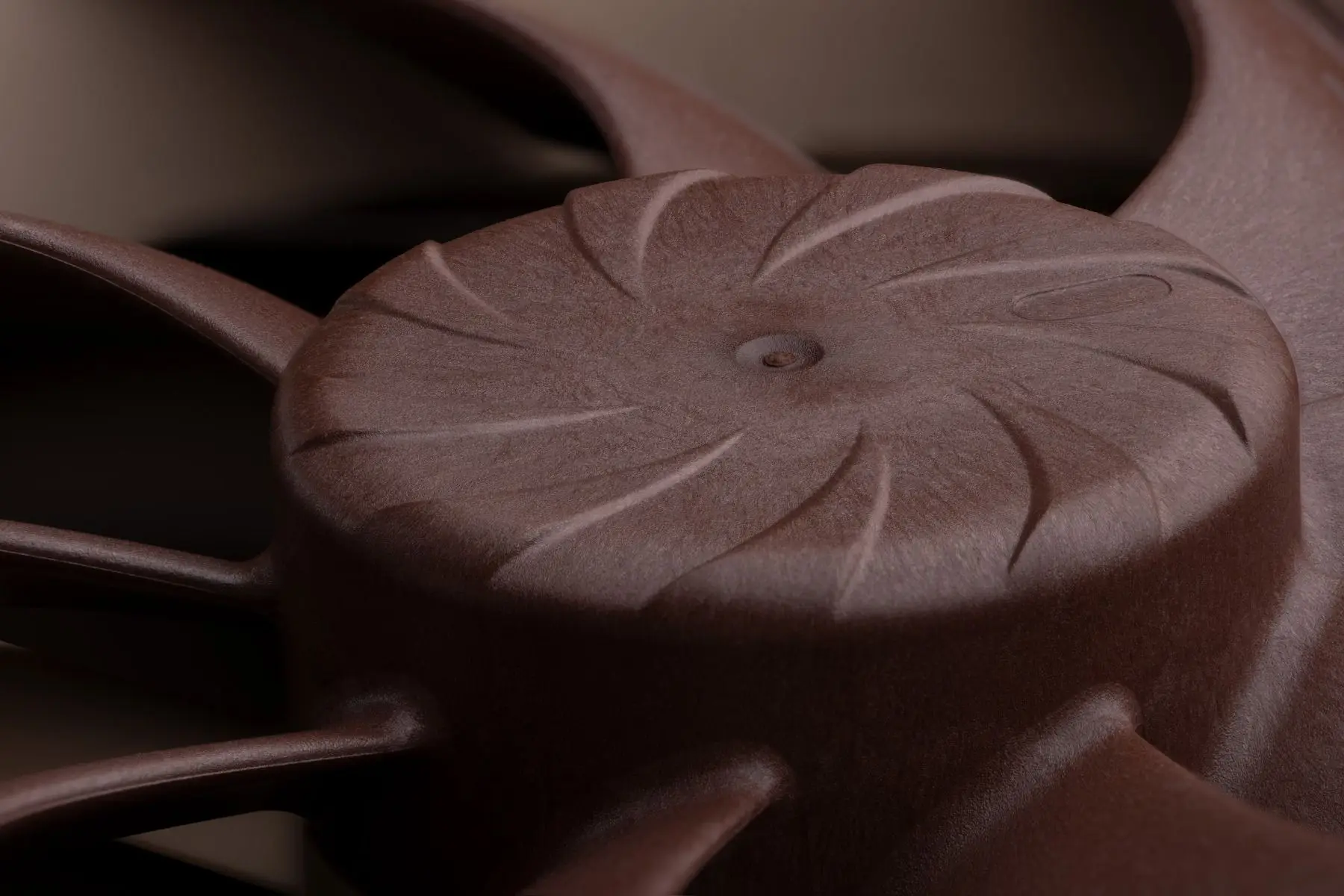

The NF-A14x25 G2 features a unique Progressive Bend Impeller with Flow Acceleration Channels and winglets. Its nine blades are swept backwards close to the hub and progressively bent forward further out. Working in tandem with the Centrifugal Turbulator hub, this design not only helps to push more air towards the outer blade areas where efficiency is higher but also assures maximum lift and near uniform loading across the entire blade span.

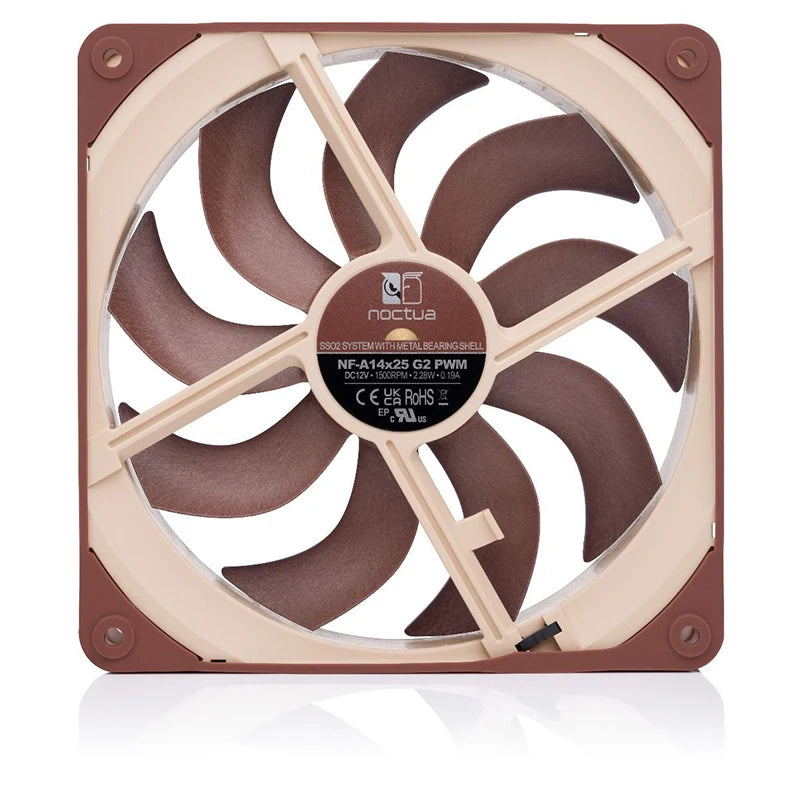

SSO2 bearing

The NF-A14x25 G2 features the further optimised second generation of 's renowned, time-tested SSO2 bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
