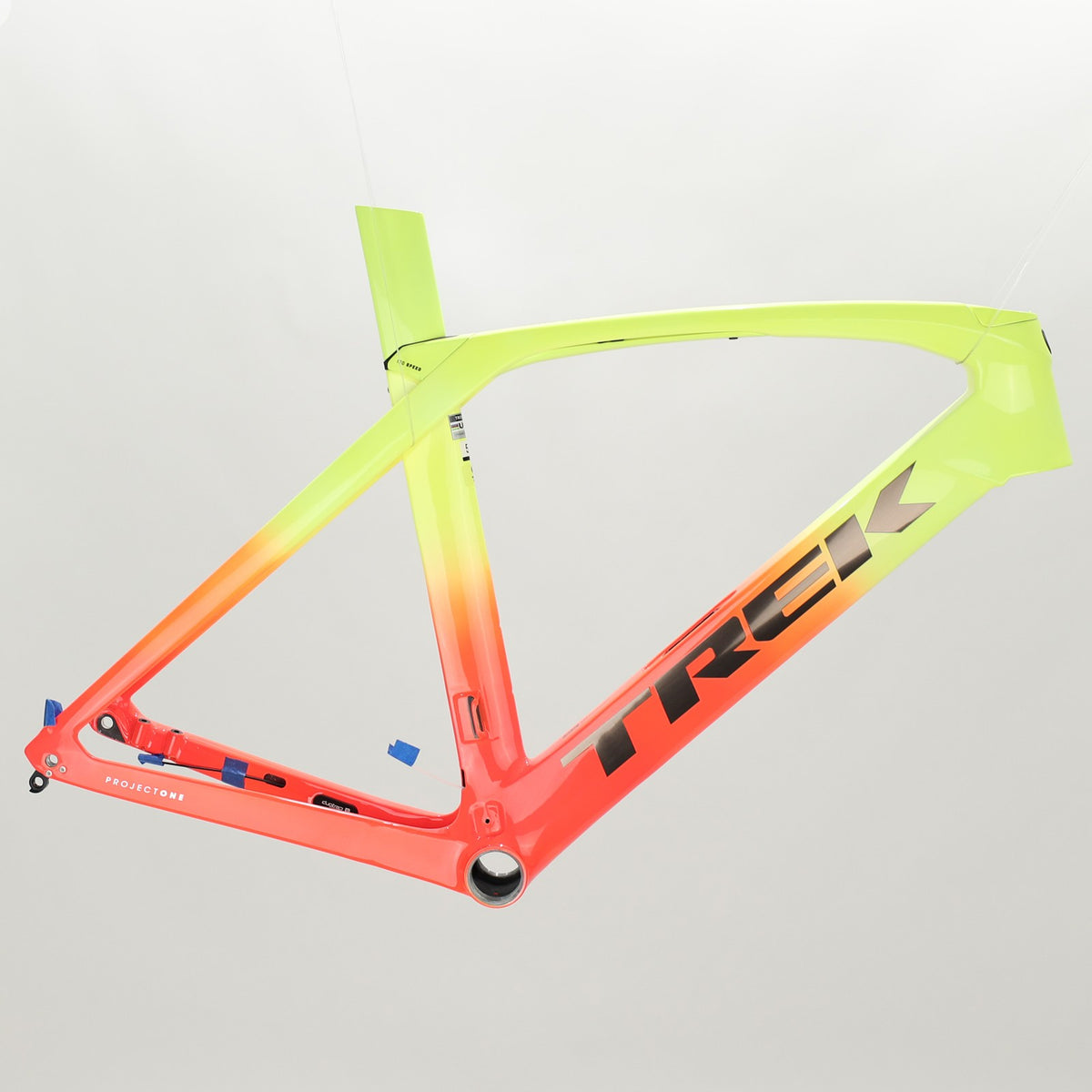

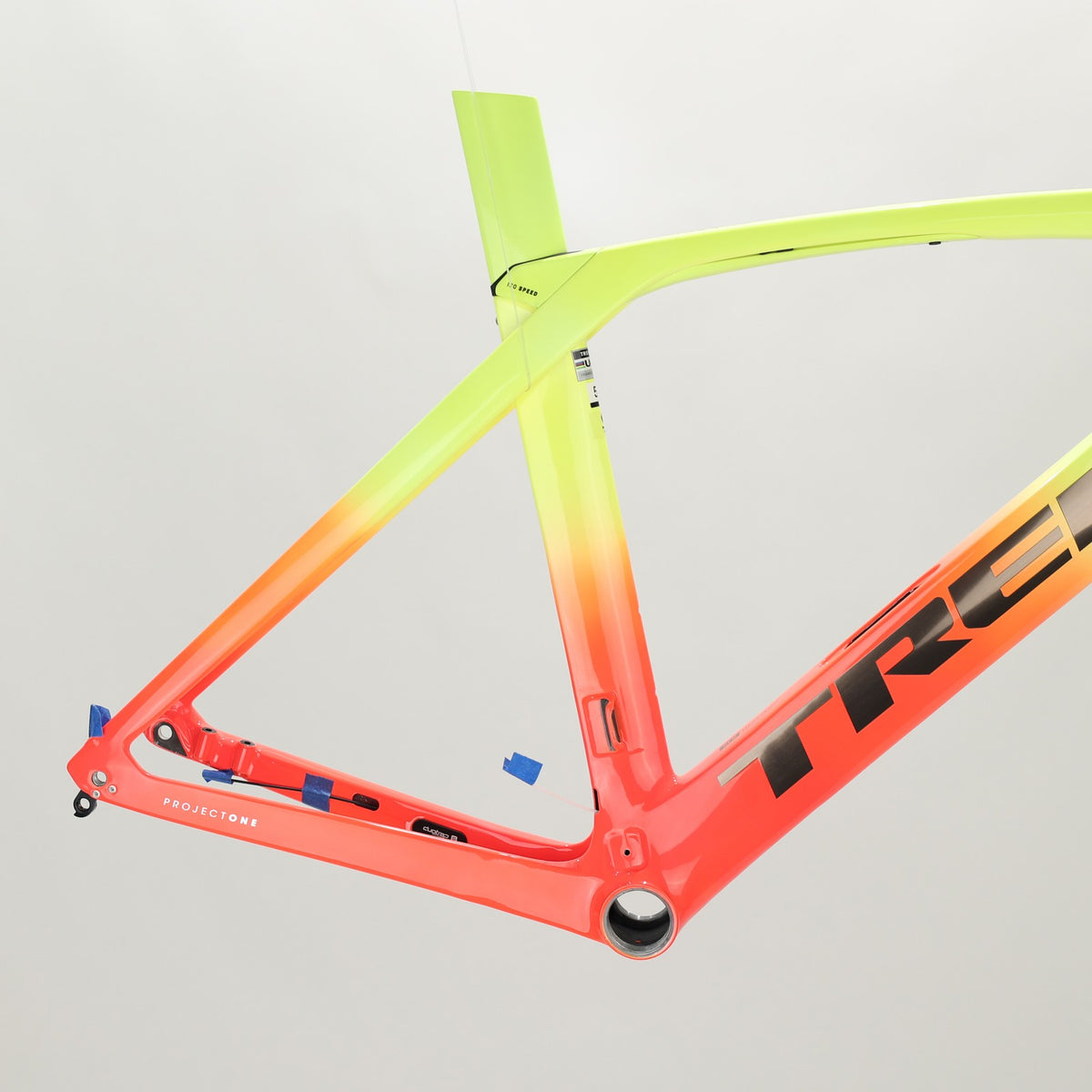

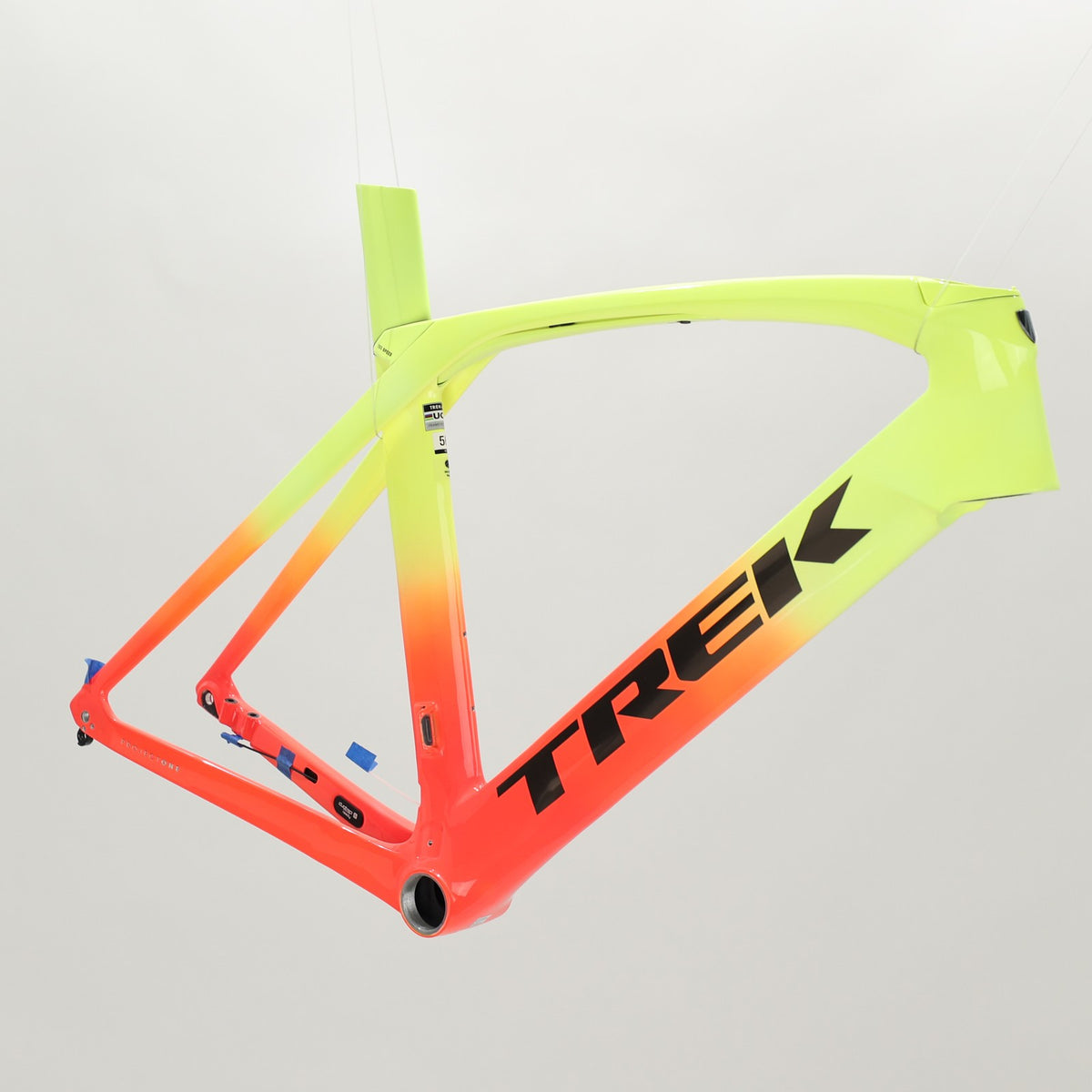

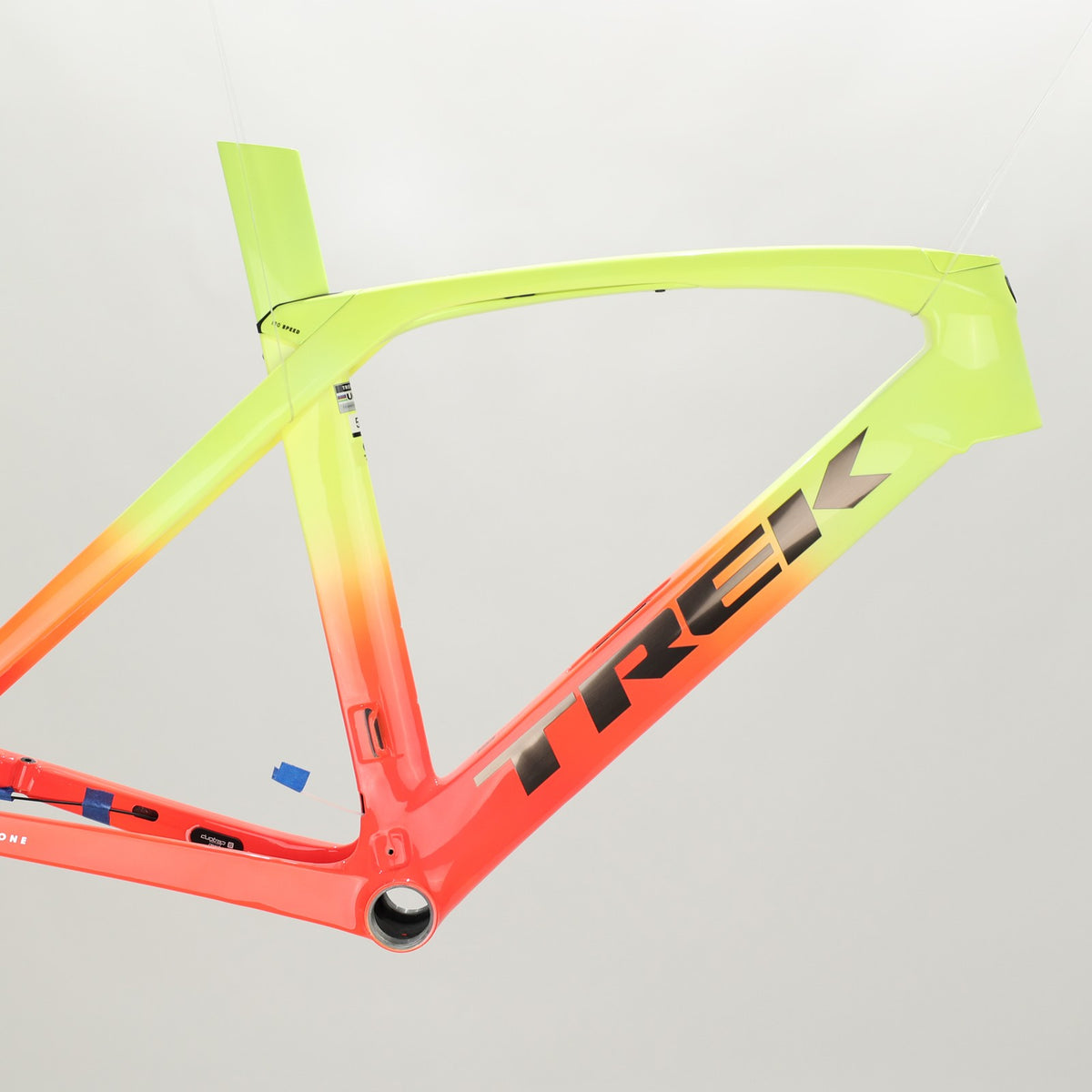

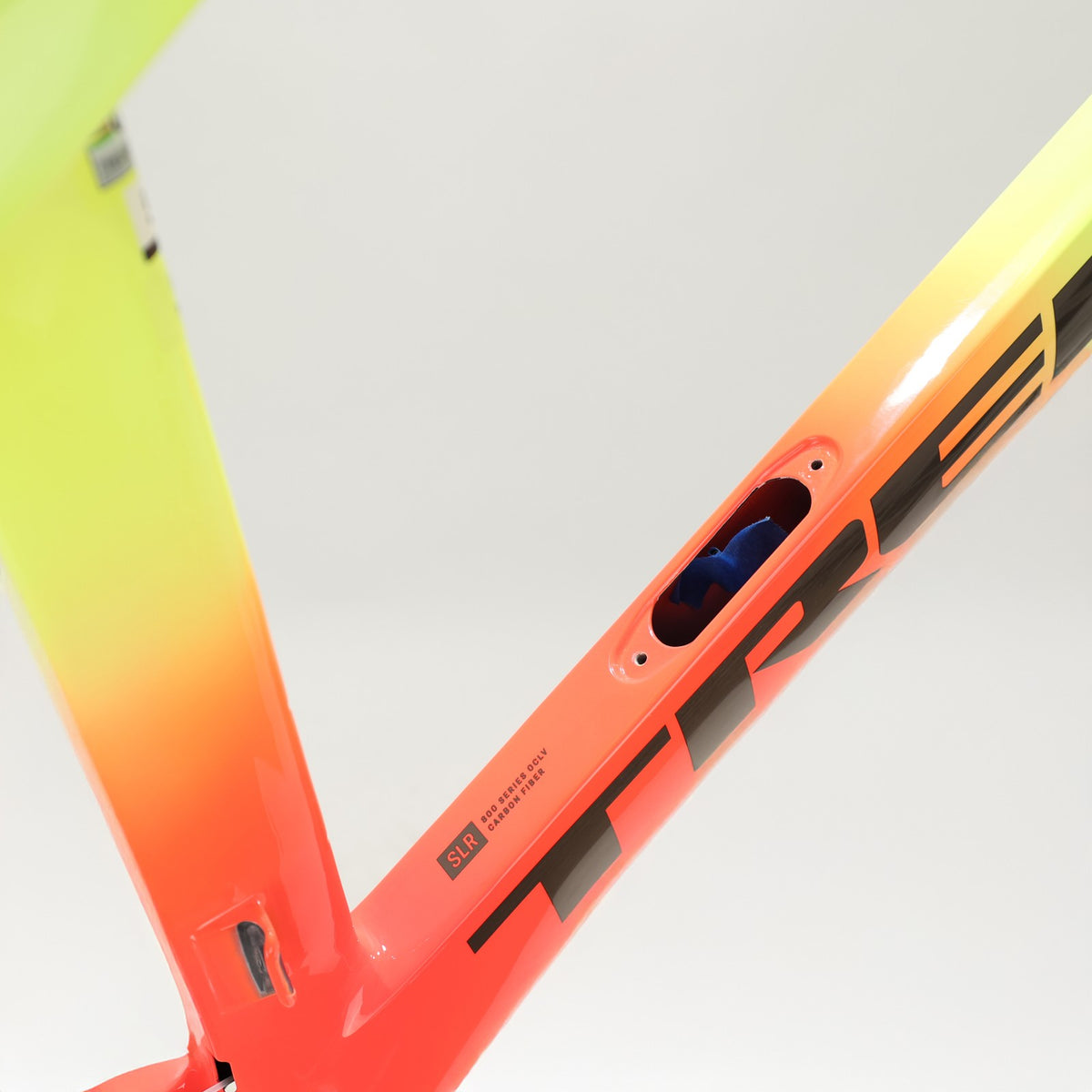

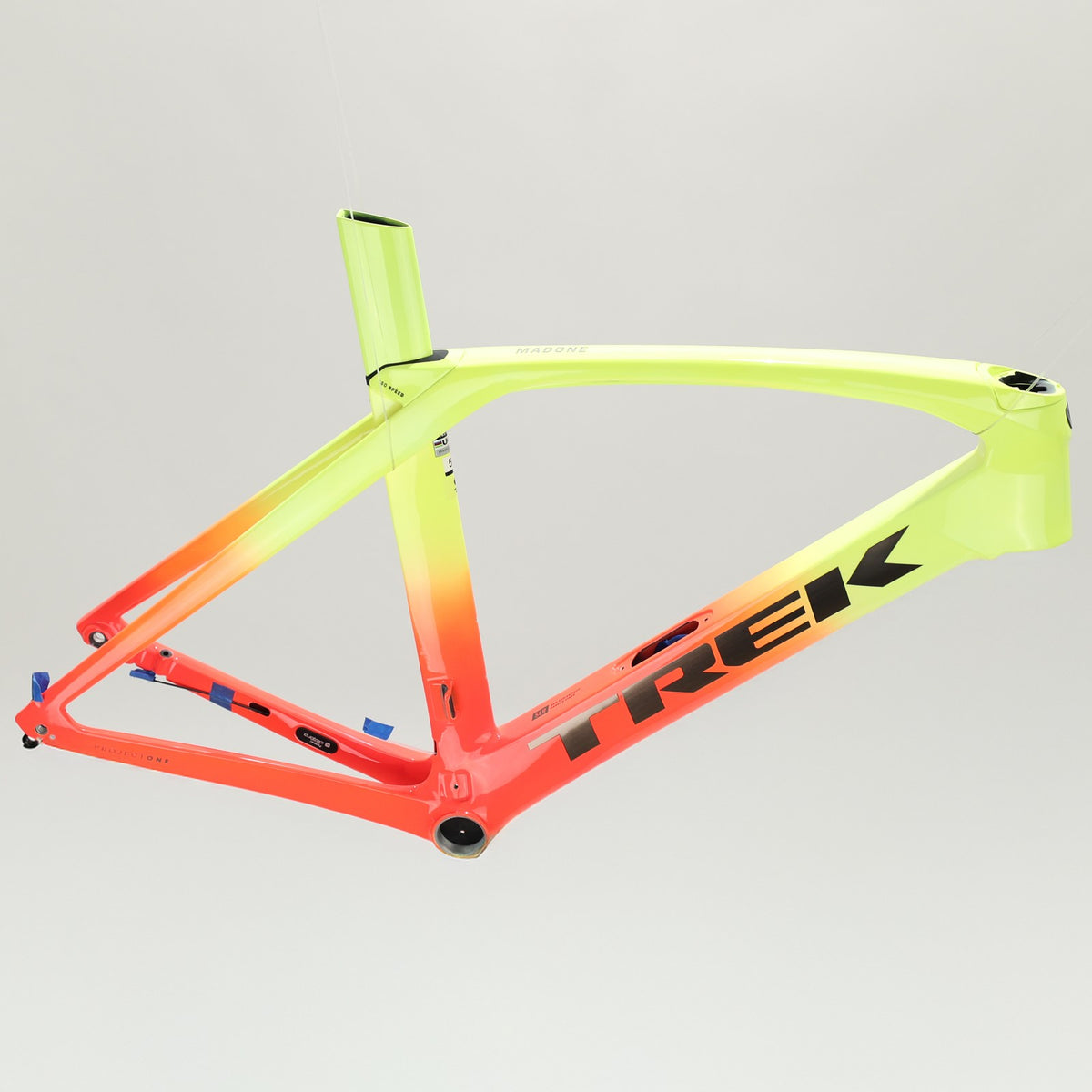

Trek Project 1 Madone SLR Gen 6 Disc Frame 56cm Coral Yellow Fade 2022
About This Item
Product Description
The Trek Project One Madone SLR Gen 6 is a premium aerodynamic road platform built from ultralight 800 Series OCLV Carbon and designed for riders who want maximum speed, efficiency, and race-focused performance. This bare frame features Trek’s Adjustable Top Tube IsoSpeed system to help smooth rough roads while preserving the fast, responsive ride feel Madone is known for.
This frame uses Trek’s Gen 6 Madone platform with KVF tube shaping, invisible cable routing, flat mount disc brake compatibility, and a T47 bottom bracket shell. As a Project One frame, it is a unique custom Trek offering rather than a standard off-the-shelf frameset.
Key Features
Trek Project One Madone SLR Gen 6 bare frame
800 Series OCLV Carbon construction
KVF (Kammtail Virtual Foil) aerodynamic tube shaping
Adjustable Top Tube IsoSpeed
Built for high-speed aerodynamic road performance
Invisible cable routing
Flat mount disc brake compatible
T47 threaded bottom bracket shell
142x12mm rear thru-axle frame standard
3S aero chain keeper
DuoTrap S compatible
Mechanical front derailleur setups require a full-housing stop such as Shimano toggle style
Uses Trek H1.5 Race fit
Specifications
Brand: Trek
Model: Project One Madone SLR Gen 6
Frame Material: 800 Series OCLV Carbon
Frame Fit: H1.5 Race
Brake Type: Flat Mount Disc
Rear Spacing: 142x12mm
Front Spacing: 100x12mm
Bottom Bracket: T47
Cable Routing: Invisible internal routing
Tire Clearance: 28mm max
Rotor Compatibility: 140mm / 160mm front and rear
Frame Features: Adjustable Top Tube IsoSpeed, KVF shaping, 3S aero chain keeper, DuoTrap S compatible
Weight Limit: 275 lb / 125 kg total system weight
Compatibility
Compatible with:
Flat mount disc road components
12x100mm front and 12x142mm rear thru-axle wheel systems
T47 bottom brackets
Aftermarket 30mm spindle-compatible T47 bottom brackets, when properly matched
Modern drivetrain systems
Mechanical drivetrains using full-housing front derailleur designs such as Shimano toggle front derailleurs
Tires up to 28mm
Fit and frame notes:
Uses Trek H1.5 Race fit
No fender provisions
Compatible with 140mm or 160mm rotors front and rear
Blendr front and rear lights compatible, same as previous model
Included
Trek Project One Madone SLR Gen 6 frame
Self-contained IsoSpeed components
Not Included
Fork
Headset
Axles
Seatpost
Hardware
Grommets / cable stops
Bottom bracket
Additional parts needed for a complete bike build
Warranty and Notes
Bare frame only. This is not a traditional complete off-the-shelf frameset.
This is a unique Trek Project One frame and a genuine direct-purchased Trek product.
Includes only what is pictured.
Includes self-contained IsoSpeed components.
For the best guidance on sourcing the correct build parts, we recommend working with your local Trek dealer. They can help confirm compatibility based on your fit needs and intended groupset.
For size recommendations and geometry charts, please refer to Trek’s official website for the most accurate model-specific fit information.
This is a genuine Trek product and is eligible for Trek’s full factory warranty when assembled by an authorized Trek dealer. Please retain your build invoice and proof of purchase for any future warranty claim.
Condition
New
Genuine OEM product
Includes only what is shown or described
Specifications
Brand Trek
Condition New
Bike type Road
Size 56cm
Colour Coral Yellow Fade
Manufacturer part number 1478PM05622Q
UPC 617395142002
