SPECIFICATIONS

Certification: CE

High-concerned chemical: none

Model Number: DN8 DN10 DN15 DN20 DN25

Motivity Type: Other

Origin: Mainland China

Type: Valves

Product description

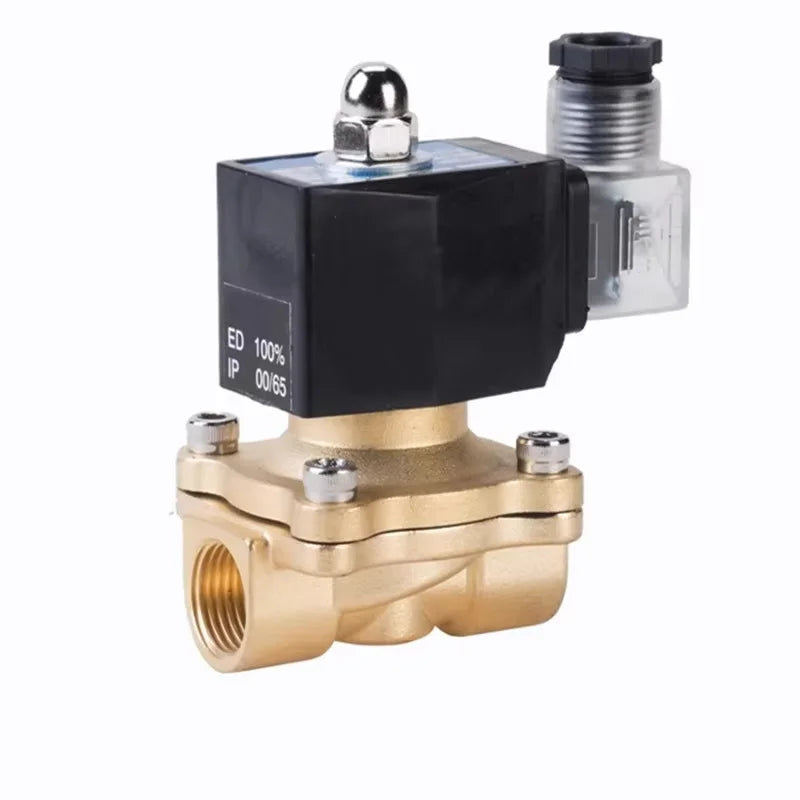

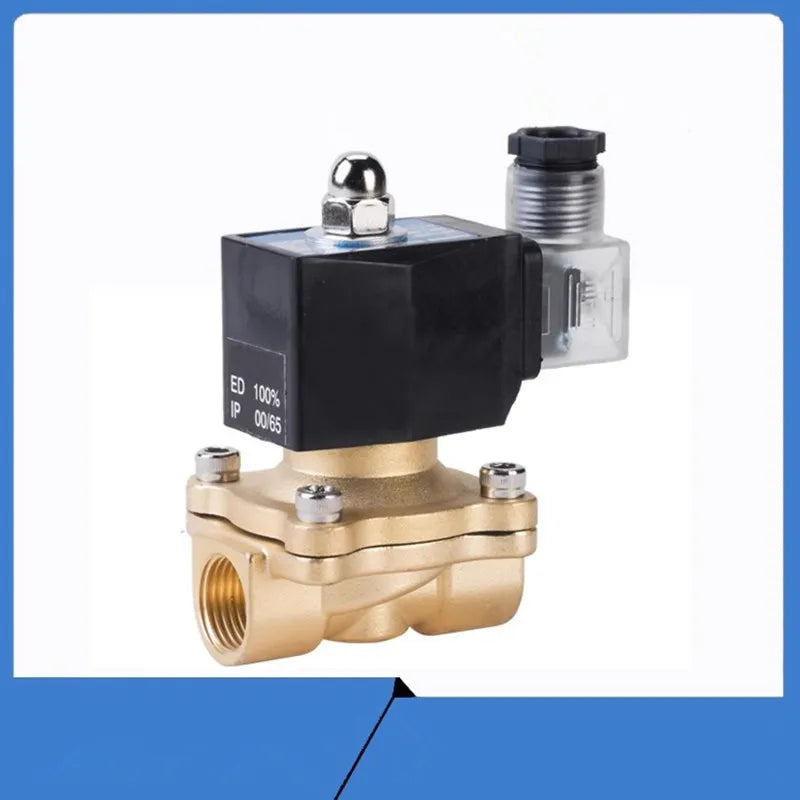

Name: Electric Solenoid Valve

Model: 2W025-08,2W040-10,2W160-15,2W200-20,2W250-25

Body Material:Brass

Voltage: AC220V AC110V DC24V DC 12V

Type: Normally Closed type(N/C)

Acting Motion: Direct action

Connecting Format: Inside thread

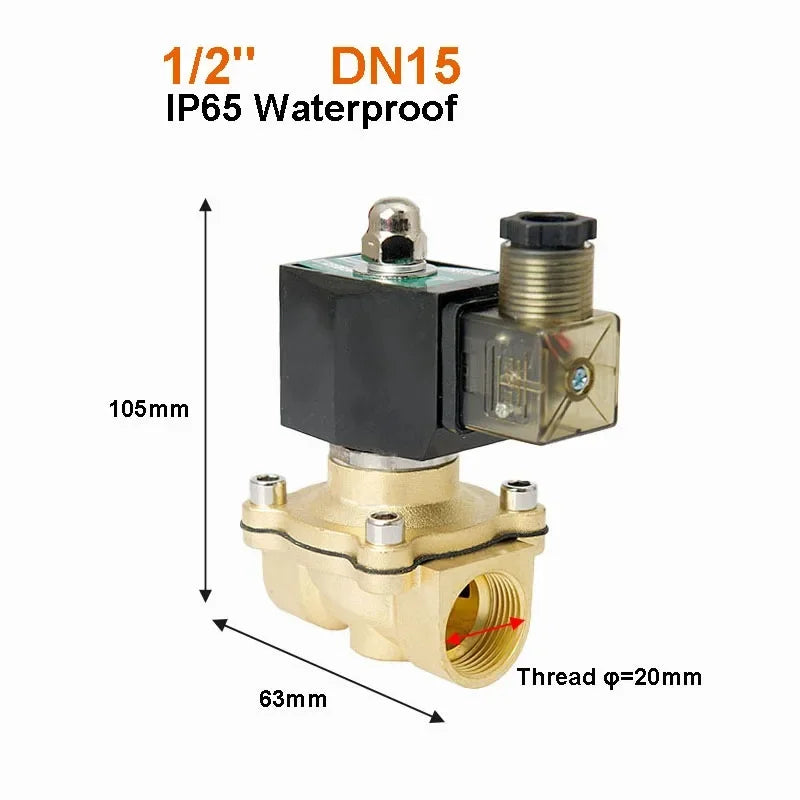

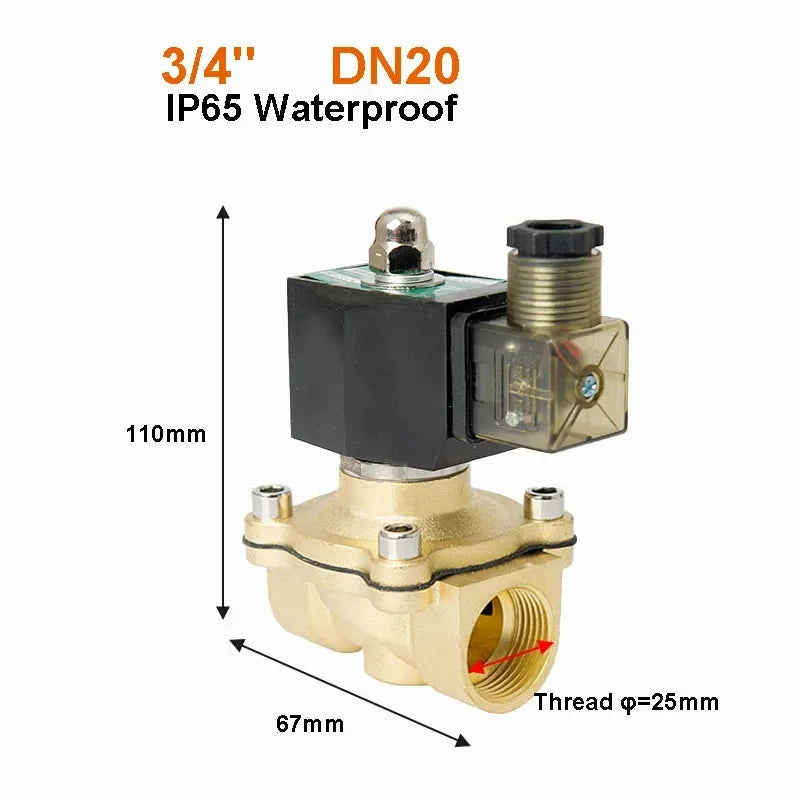

Pipe Diameter: DN08(1/4" ) ,DN15(1/2" ), DN20 (3/4") ,DN25(1"),DN32(1-1/4"),DN40(1-1/2"),DN50(2").

Orifice Size: DN08(2.5mm),DN15(16mm),DN20(20mm) DN25(25mm),DN32(32mm),DN50(50mm).

Fluid Temperature:-5~+80℃(NBR Seal),-5~+150℃(VITON Seal)

Work Pressure: 0-10Kg/cm⊃2;

Protect Class: IP65

IP65 Coil: Waterproof( suitable for outdoor)

Ports: 1/4",1/2",3/4",1",1-1/4",1-1/2",2" Inlet and Outlet Ports.

Working Medium: Air, Water, Oil

Features:

- Two-position, one-way, normal close switch, magnetic solenoid water valve.

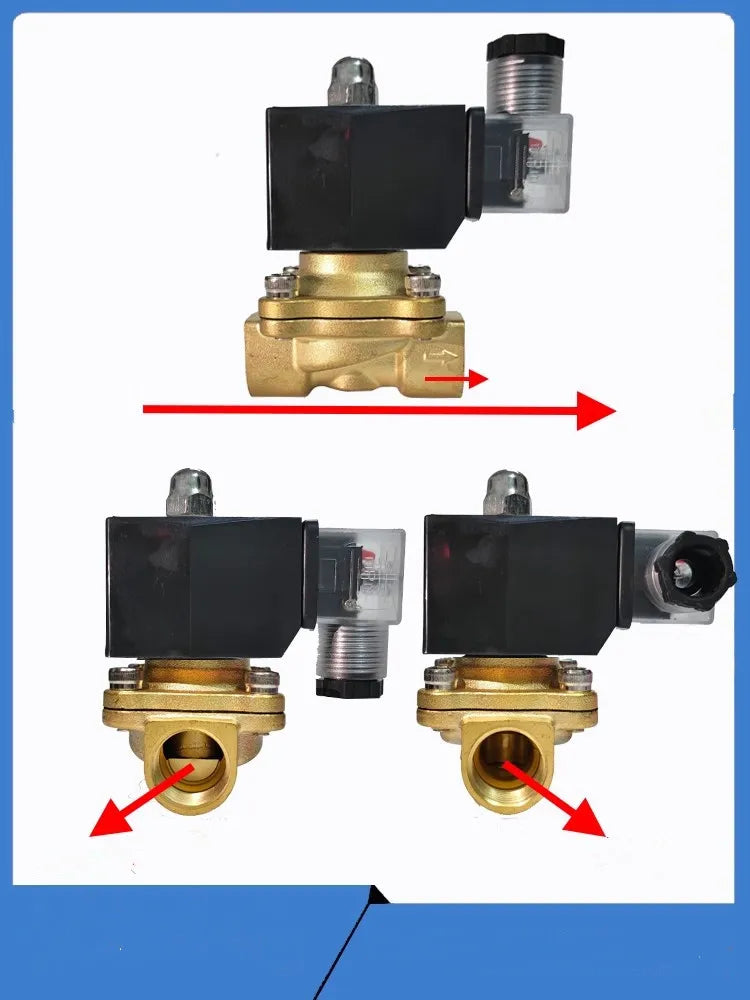

- High-quality aluminum alloy gravity casting, hard and durable, non-corrosive, the product has the direction of water inlet and outlet.

- Can be installed at any angle, but it is a good
