Product details
SPECIFICATIONS
Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee
DIY Supplies: Plumbing
High-concerned chemical: none
Model Number: Digital Ultrasonic Flow Meter
Origin: Mainland China
Semi-finishedproduct: No
Size: DN15/DN20/DN25/DN32/DN40 Optional
Type 1: Measuring instruments
Type 2: Measuring tools
Type 3: water meter consumption
Type 4: diving tank
Type 5: flow meter portable
Type 6: flowmeter display

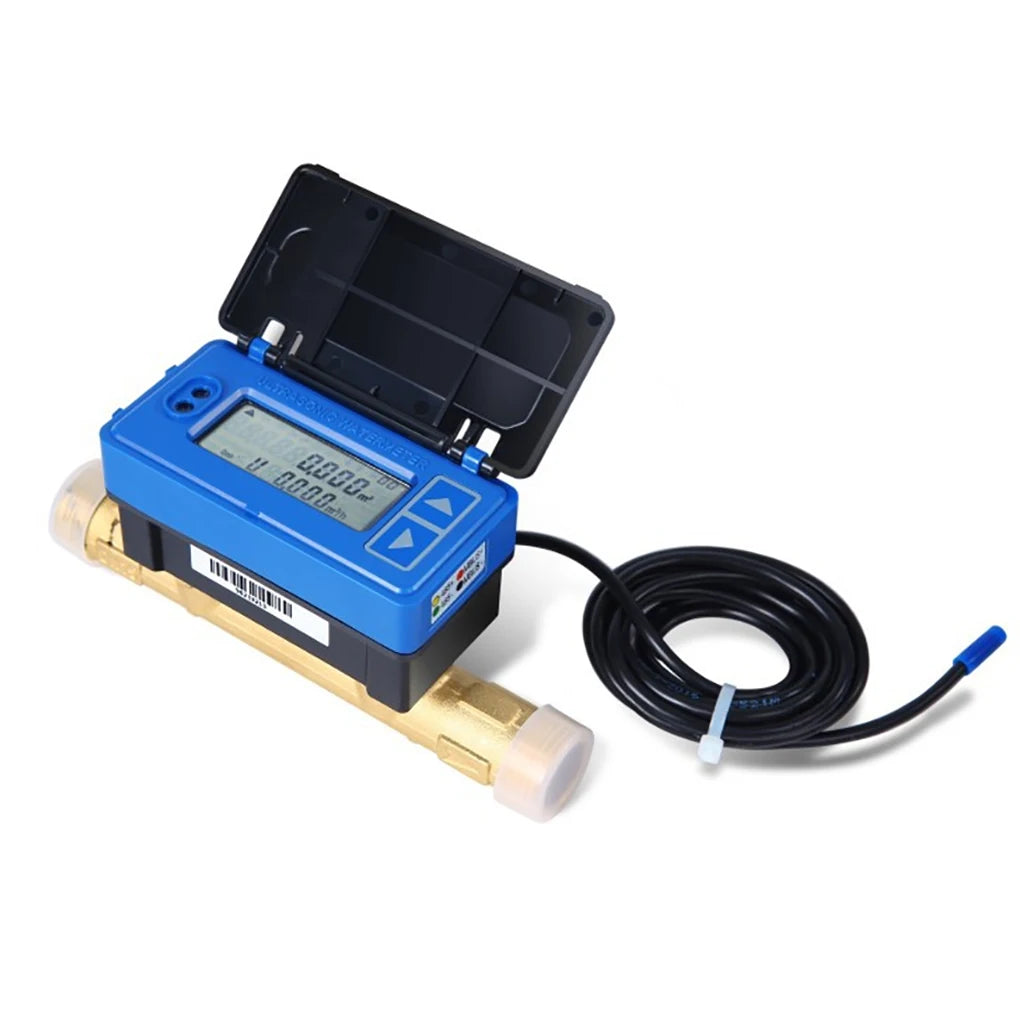

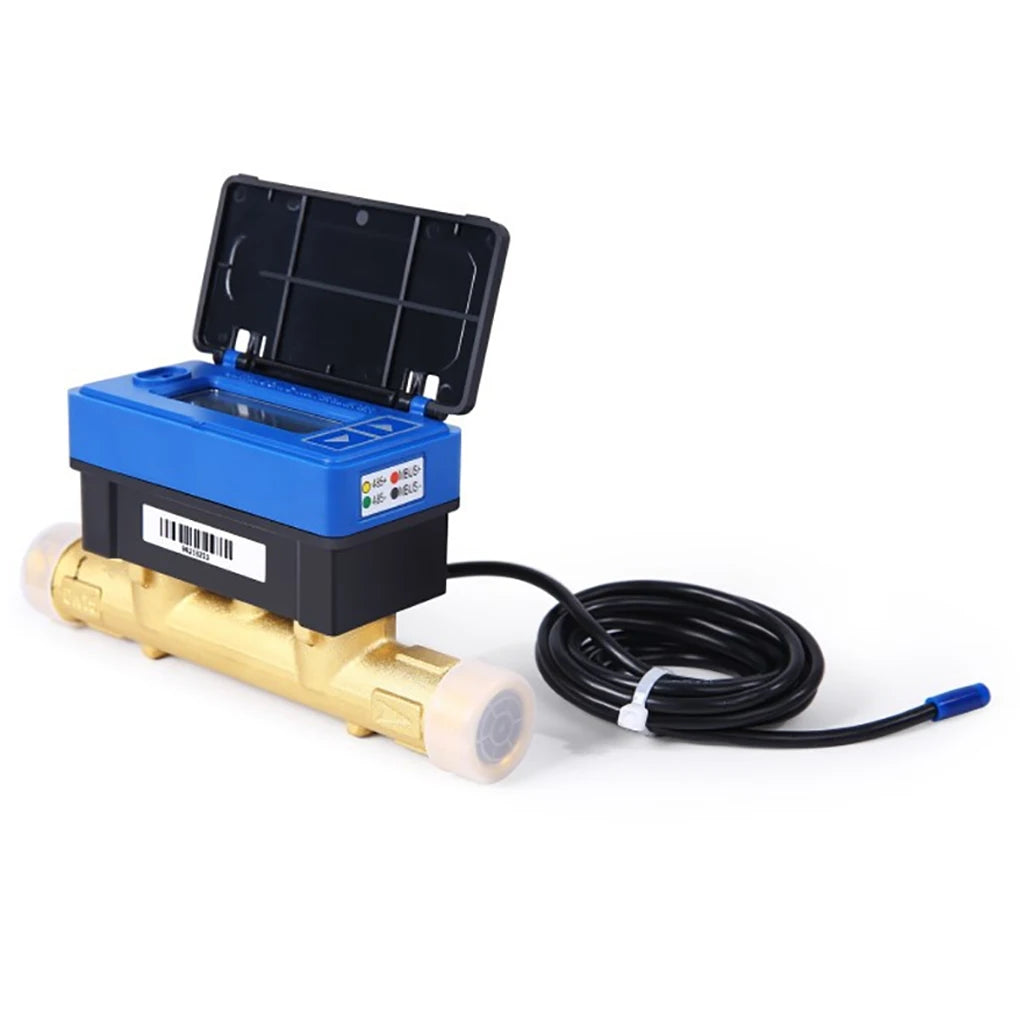

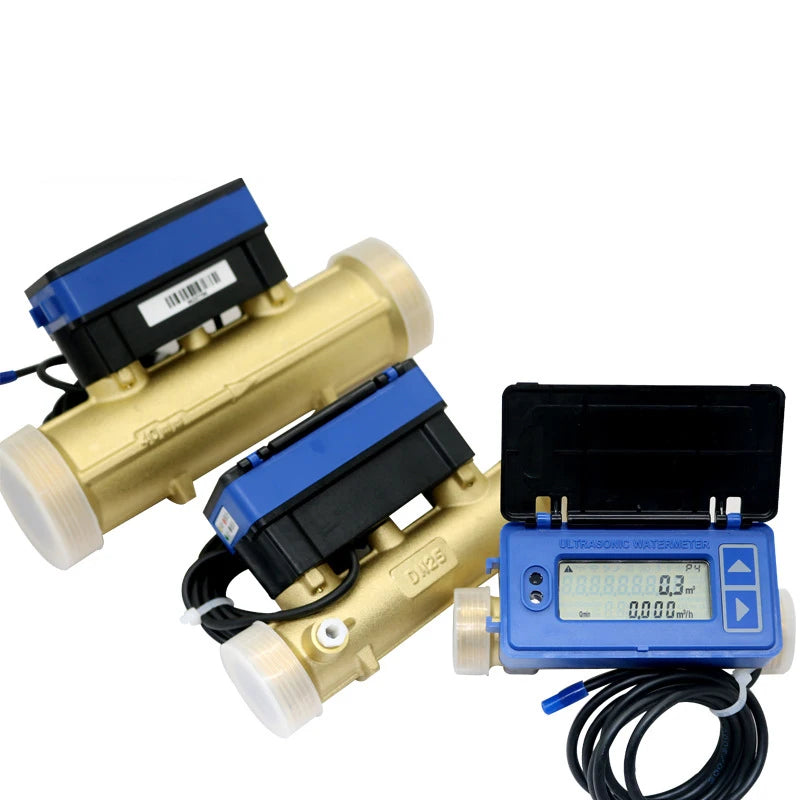

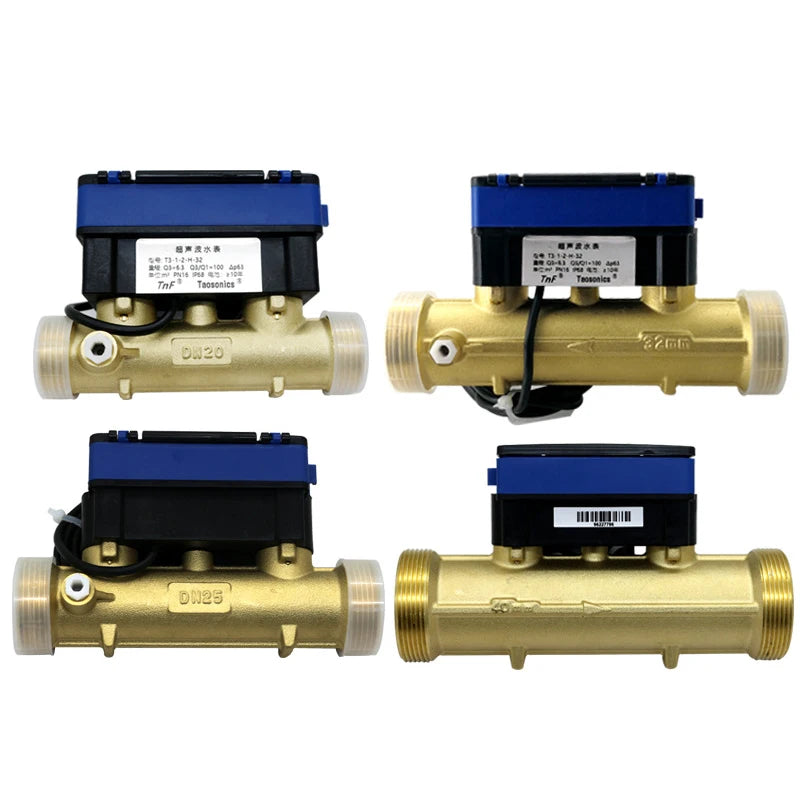

Digital Ultrasonic Water Meter RS485 Remote Transmission Flow Meter Wireless Intelligent Tap Water Meter Agriculture Irrigation

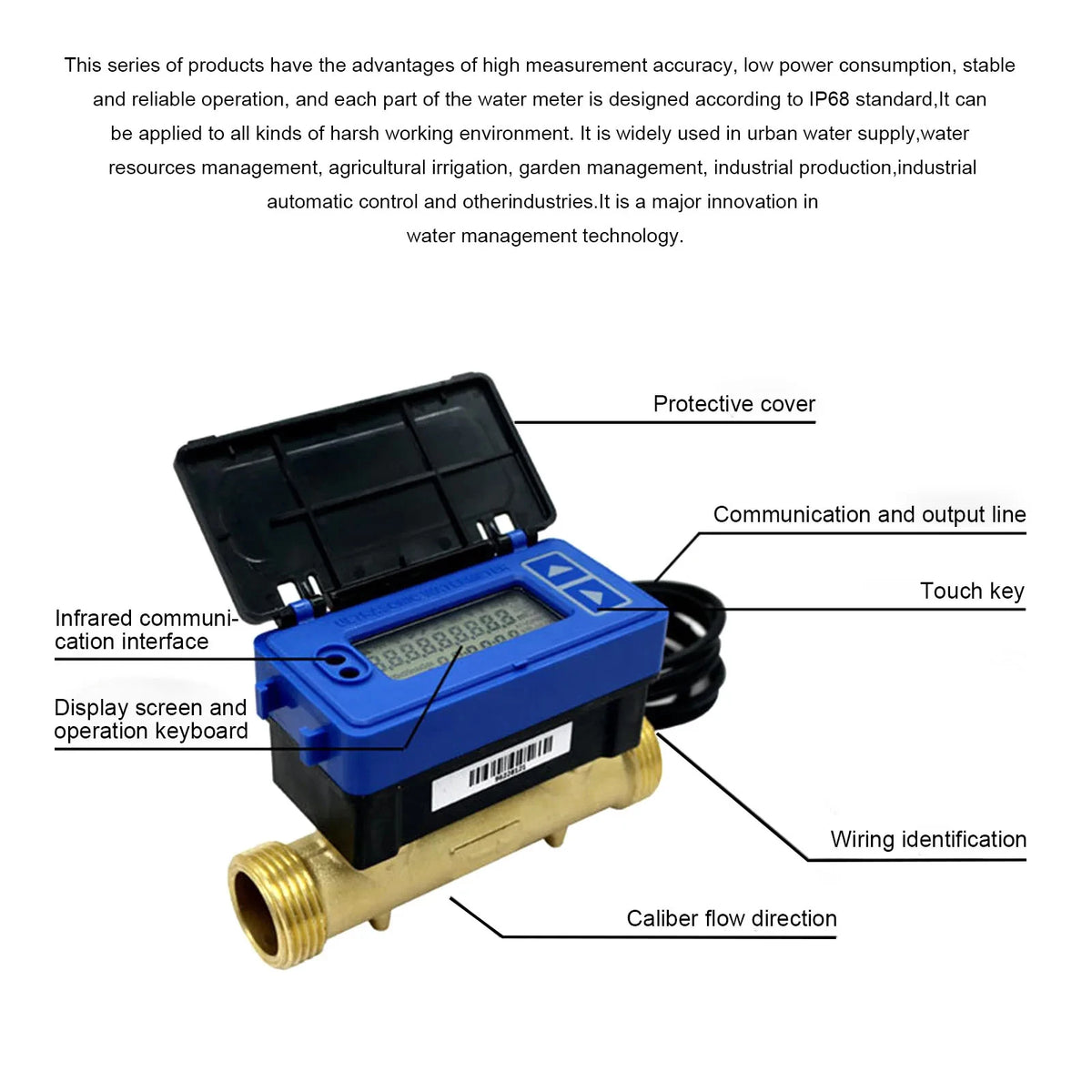

1. IP68: This series of products have the advantages of high measurement accuracy, low power consumption, stable and reliable work, and each component of the water meter is designed in accordance with the IP68 standard.
2. Wide application: It can be applied to all kinds of harsh working environment. It is a major innovation in water management technology in industries such as urban water supply, water resource management, agricultural irrigation, garden management, industrial production, and industrial automatic control.
3. Timing: Built-in volume controller, built-in time accumulator. Automatically start the controller at a fixed time, and automatically supply water at a fixed time. Accumulate the flow in time-sharing within the set time period to reach the gradient rate.
4. Independent measurement, no rotation, no moving parts, to ensure high long-term measurement accuracy.
5. Suitable for high-quality water varieties, including water containing gravel and weeds.

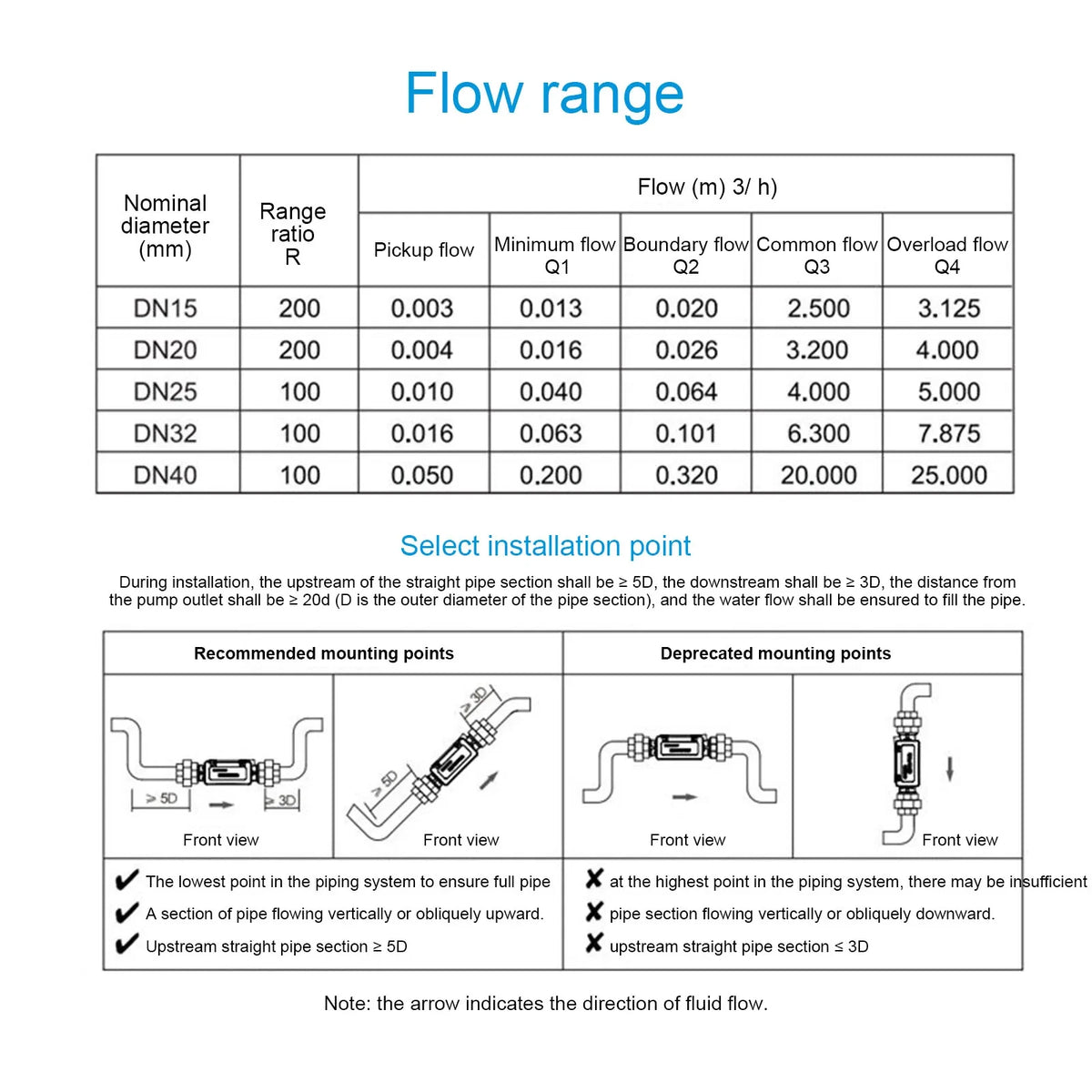

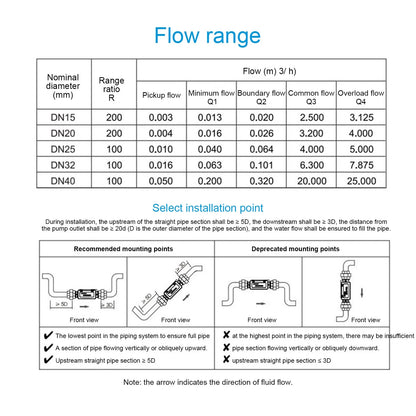

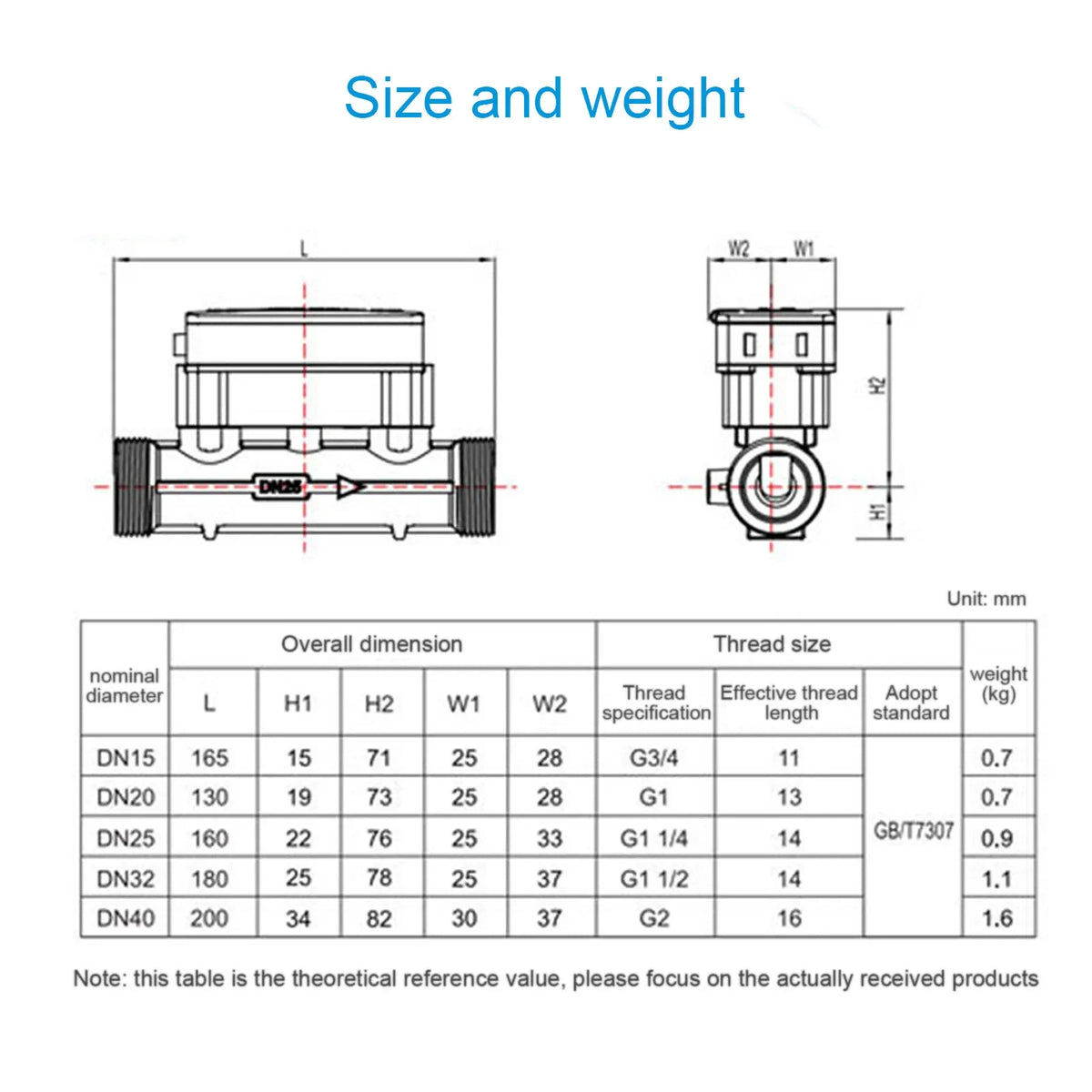

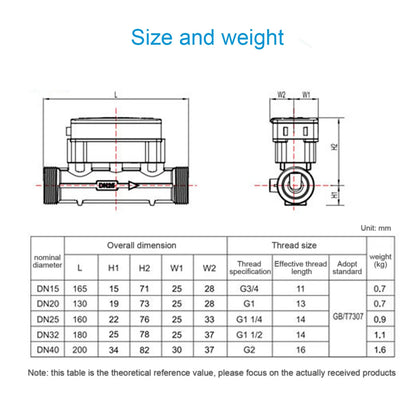

Model: DN15/DN20/DN25/DN32/DN40 (Optional)
Working pressure: 2.5 Mpa
Temperature class: T30
Pressure loss: △P63
Working environment: -25℃~55℃, IP68 protection grade

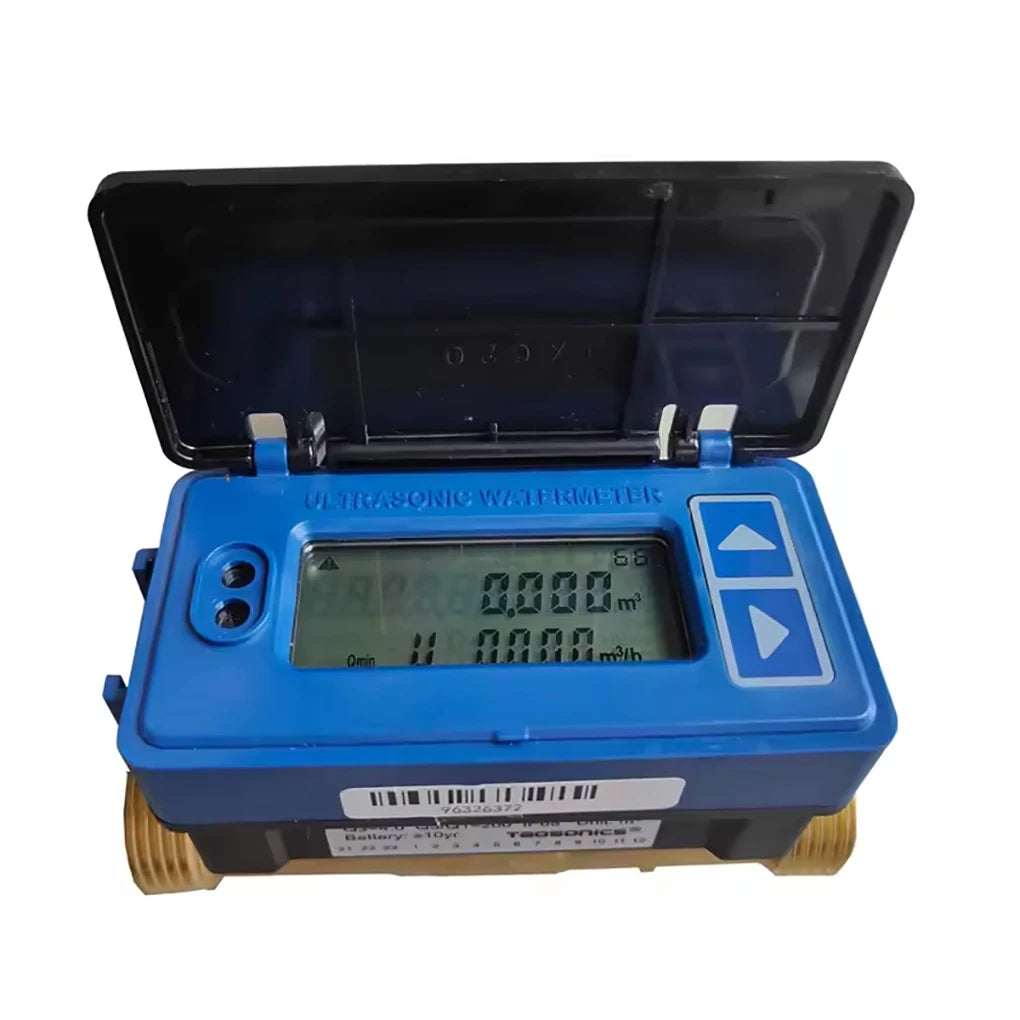

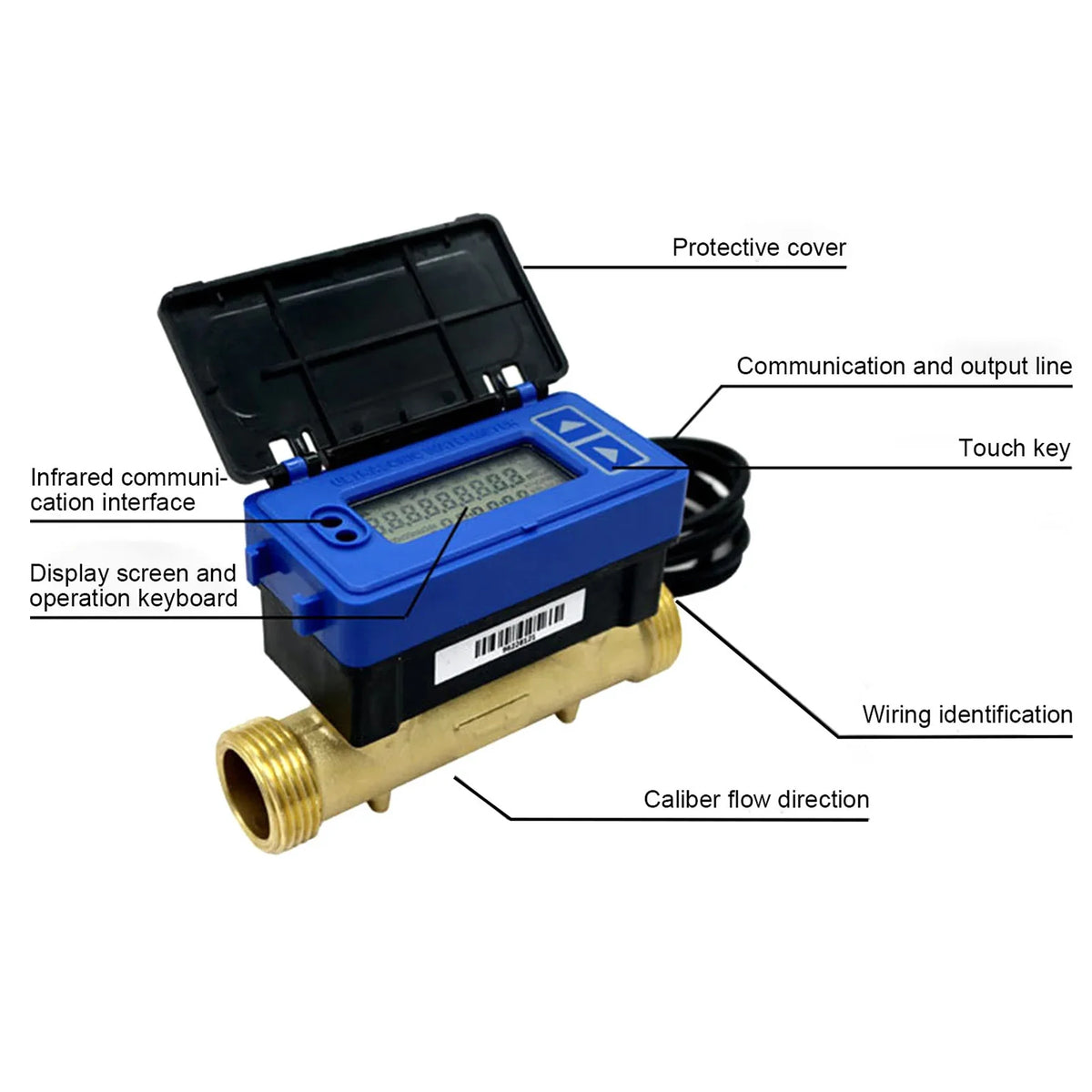

Display: Multi-line simultaneous display of 9-digit long cumulative quantity, 6-digit long instantaneous quantity, signal strength, battery status, flow direction, fault, communication status, etc.
Flow unit selection: Cubic meters, US gallons, liters, cubic feet, acre feet
Operation mode: Double capacitive touch button, support sliding operation

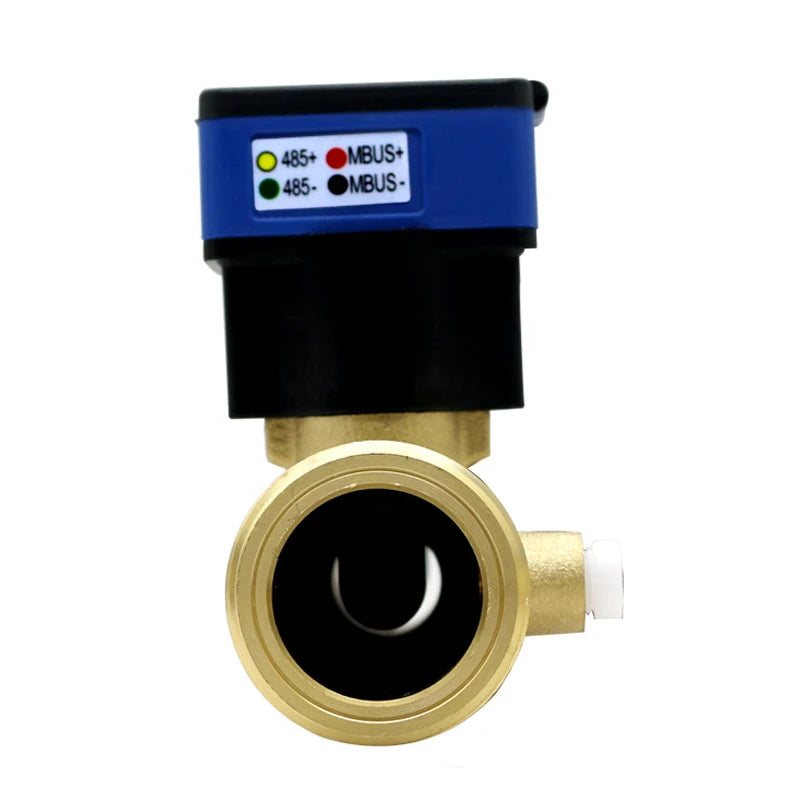

Communication interface: Physically independent RS485 and infrared interface. Optional MBUS interface, Lora/Nb-iot wireless communication function, USART interface
Output: Optional 2-channel OCT output, which can simulate the double pulse output of a mechanical water meter
Communication protocol: Support MBUS, MODBUS, ASCII, CJ188 at the same time
Power supply: 36V 4Ah lithium battery power supply, life>10 years, automatic power saving function under empty pipe and zero flow rate
DC12-30V, external power supply through MBUS interface; data will be saved permanently after power off
Power consumption: <0.1mW

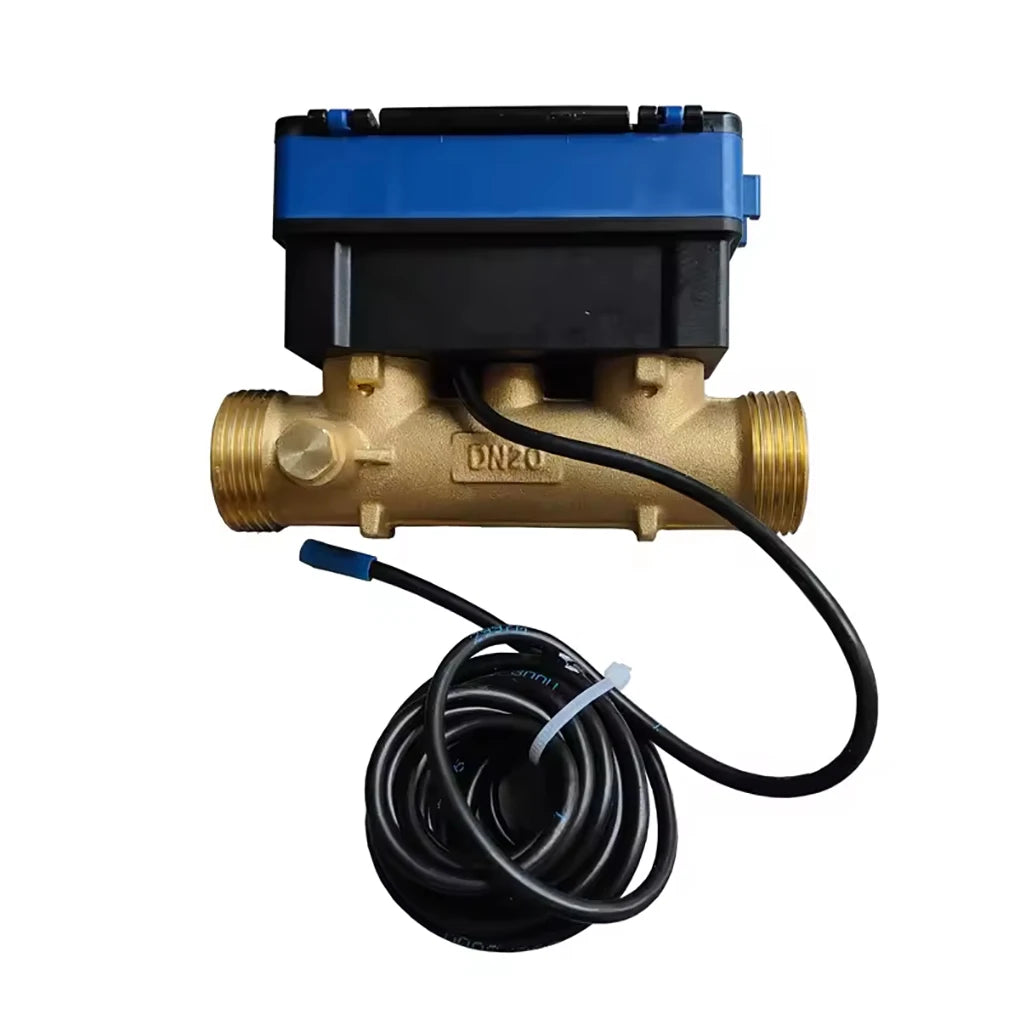

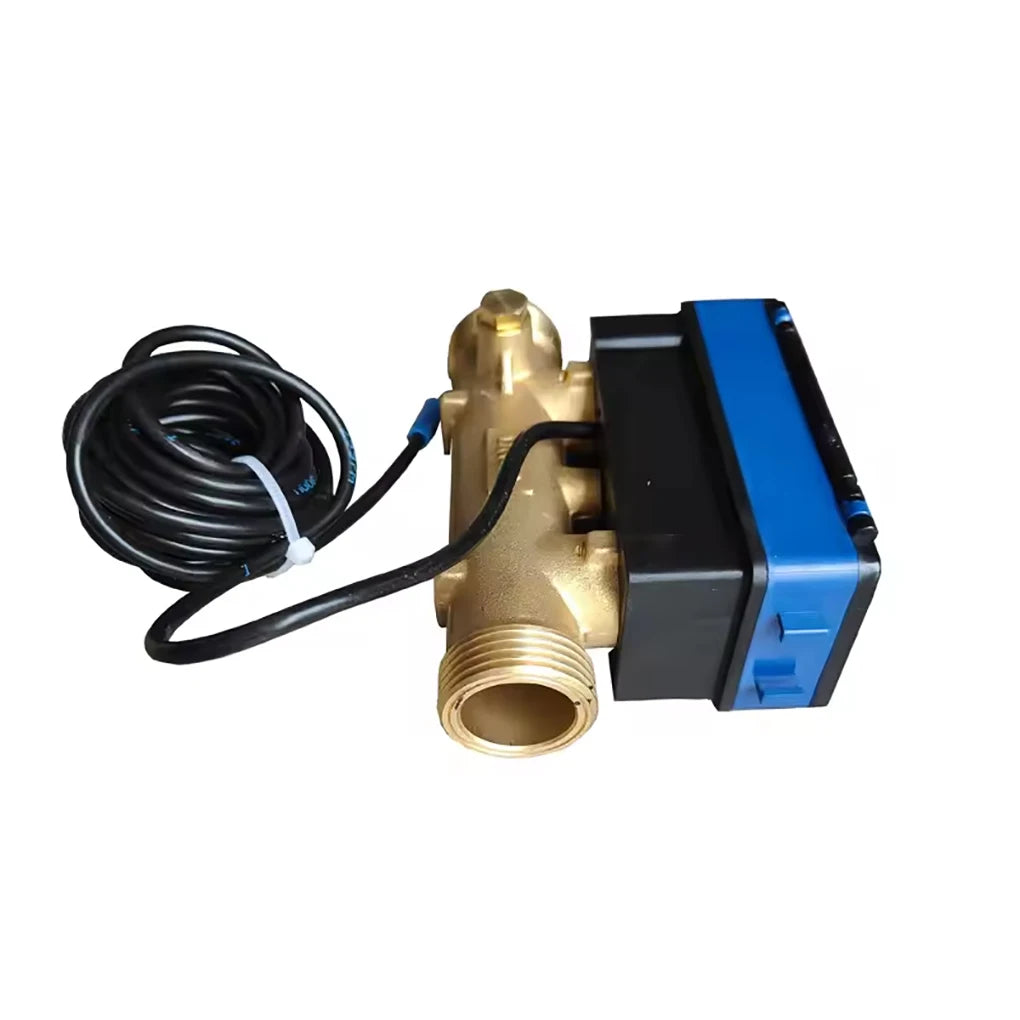

Material: Tube body material: Copper; Others: PEEK
Digital Ultrasonic Flow Meter*1
