Product details

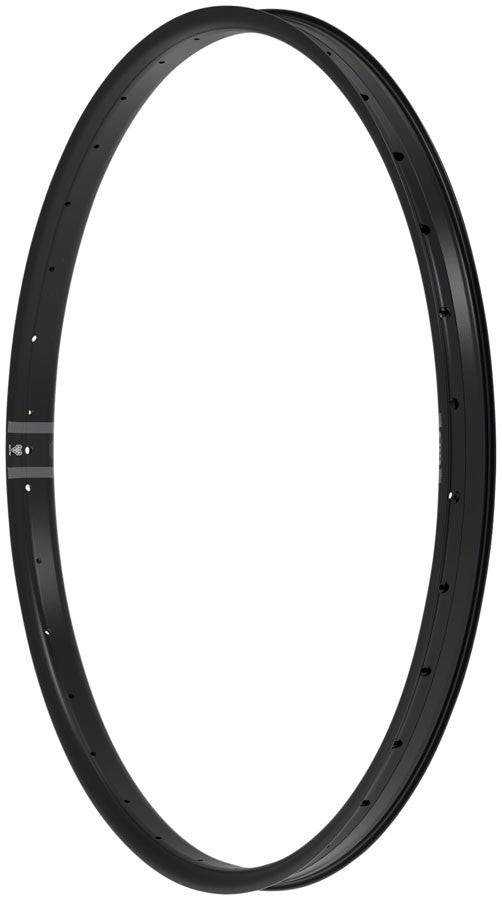

E-bikes add to the riding experience by simply providing more for less. More distance, more laps, more climbs and more descents. With all those ?Ç£mores?Ç¥ also comes more weight continually bashing on the components of an e-bike. In order to overcome the increased forces induced by the technological progression of modern e-bikes, WTB designed the HTZ rims with more material in every area of the rim profile. Every wall of the rim is 25-30% thicker in comparison to those of standard rims, which are then paired with the proven I-Beam center support to ensure no beating was too great for these rims. All HTZ rims are TCS 2.0 tubeless, feature asymmetrical spoke drilling, and are available in widths ranging from i23 to i35 in order to provide options for e-bikes ranging from e-assist gravel bikes to dual-crown downhill bikes that no longer need a truck to be shuttled.
Features:
Capable of withstanding the forces of a modern e-bike
4D angled spoke drilling eliminates binding and lateral loading
and disperses tension more evenly over a greater area
Symmetric outer profile provides equal dissipation of impact forces on both sides of the rim while asymmetric spoke hole drilling allows for more even spoke tension and increased wheel strength
Disc-brake only
TCS 2.0 Tubeless ready and comes with a preinstalled Solid Strip
which lies beneath the tubeless tape and prevents sagging at the spoke holes
creating a smooth interface between the rim and tire bead. This prevents air from escaping around the bead and therefore requires less air volume and pressure to mount a tire. Solid Strip also protects the airtight tubeless system from being punctured in the case of a broken spoke.TCS 2.0 creates a more robust
easily installed and dependable tubeless system
Specifications:
Defined Color: Black
Wheel Size: 29"
Color: Black
ISO Diameter: 622 / road / 29"
Valve: Presta
Rim Center Offset (mm): 7
Weight: 768
Tire Type: Tubeless Ready
Rim Material: Alloy
Hub Drilling: 32
Brake Track: None
Manufacturer Spec ERD (mm): 604
Rim Width (Internal): 35
keyword search: ebike
keyword search_2: ebike
Designed for ebike: Yes
$135.95
768 g
NEW
WTB
Powered by Frooition
Item specifics
| Condition | New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... |
|---|---|
| Brand | WTB |
| Part Type | HTZ Rim |
| Wheel Size | 29" |
| Color | Black |
| MPN | W020-0607 |
| Item Weight | 1.7000 |
| Model | HTZ Rim |
| Department | Unisex Adult |
