SHIMANO TIAGRA FC-4700 165MM 10-SPEED ROAD CRANKSET 52/36 110 BCD GRAY
Reference Number: 0N10V7

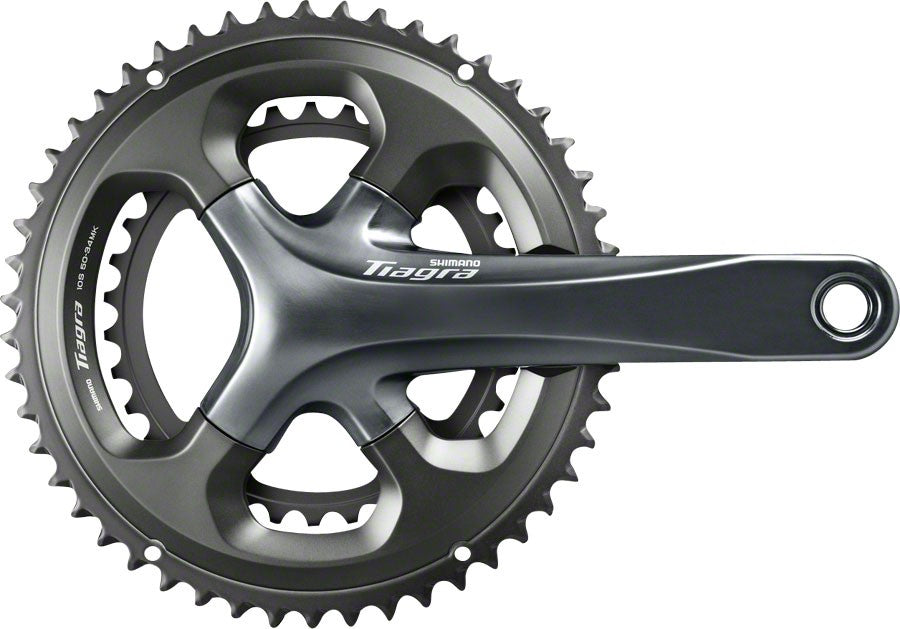

The Shimano Tiagra FC-4700 Crankset features an aluminum construction with an anodized gray finish. It has a 165mm crank length and includes double chainrings with a 52/36 tooth configuration. The crankset uses a 110mm asymmetric bolt circle diameter (BCD) and is designed for 10-speed drivetrains.
This crankset incorporates a Shimano Hollowtech II spindle interface with a 24mm integrated axle, which helps reduce weight and increase rigidity. It maintains a 43.5mm chainline and a 150mm Q-factor. The crankset is intended for road use and is compatible with 130mm hubs as well as 135mm and 142mm road disc hubs with chainstays longer than 415mm. Note that the bottom bracket is not included. Pedals with a 9/16" spindle size are required.
Shimano Tiagra FC-4700 crankset designed for road cycling with a 165mm crank length.
Features a double chainring setup with 52/36 teeth for 10-speed drivetrains.
Constructed from aluminum with an anodized gray finish for durability and style.
Uses Shimano Hollowtech II spindle interface with a 24mm integrated axle for reduced weight and improved rigidity.
Includes a 110mm asymmetric BCD and a 43.5mm chainline compatible with 130mm, 135mm, and 142mm road hubs.
ITEM SPECIFICATIONS
COLOR Gray
RINGS 52/36
NUMBER OF CHAINRINGS Double
CRANK LENGTH (MM) 165
CRANK INTENDED USE Road
DRIVETRAIN SPEEDS 10
BB INCLUDED No
PEDAL SPINDLE 9/16"
SPINDLE INTERFACE TYPE Shimano Hollowtech II
CHAINRING BCD 110 Shimano Asymmetric
CHAINLINE/HUB COMPATIBILITY 130 Hubs
CHAINLINE/HUB COMPATIBILITY 135/142 Road Disc Hubs > 415 Mm Chainstay
DEFINED COLOR Gray
