MANITOU MEZZER PRO SUSPENSION FORK 27.5" 180MM 15X110MM 44MM OFFSET
Reference Number: 1Q61V8

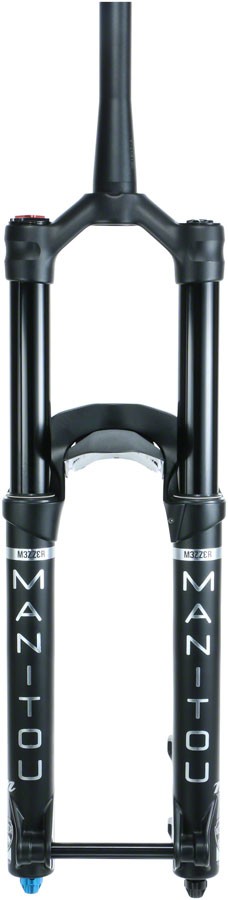

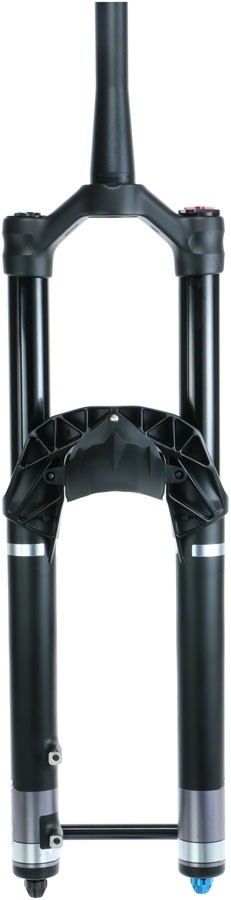

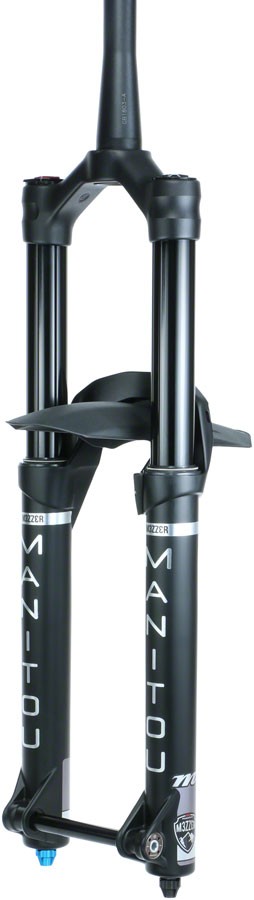

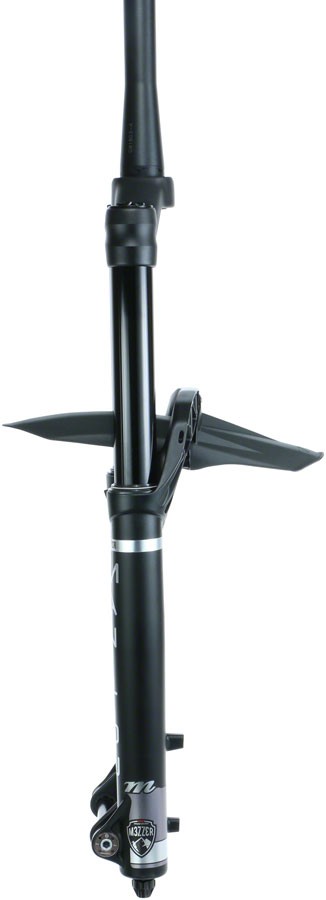

The Manitou Mezzer Pro Suspension Fork is designed for 27.5" wheels and offers 180mm of travel with adjustable settings. It features a 15x110mm Hexlock SL2 axle and a 44mm offset. The fork is built with 37mm stanchions and a Reverse-Arch lower leg design to provide exceptional stiffness and control.
The Mezzer Pro includes a fully adjustable IRT air spring for tuning the ride feel, along with a sealed MC2 damper that allows separate adjustments for high-speed and low-speed compression, as well as rebound damping. Travel can be internally adjusted from 140mm to 180mm in 10mm increments using included spacers.
Other specifications include a tapered steerer tube measuring 248mm in length, post mount 180 brake compatibility, a 28.6mm stem clamp diameter, and support for tires up to 74mm wide. The fork weighs 2000g and is designed for use with e-bikes.
Manitou Mezzer Pro suspension fork offers 180mm travel adjustable in 10mm increments for versatile enduro riding.

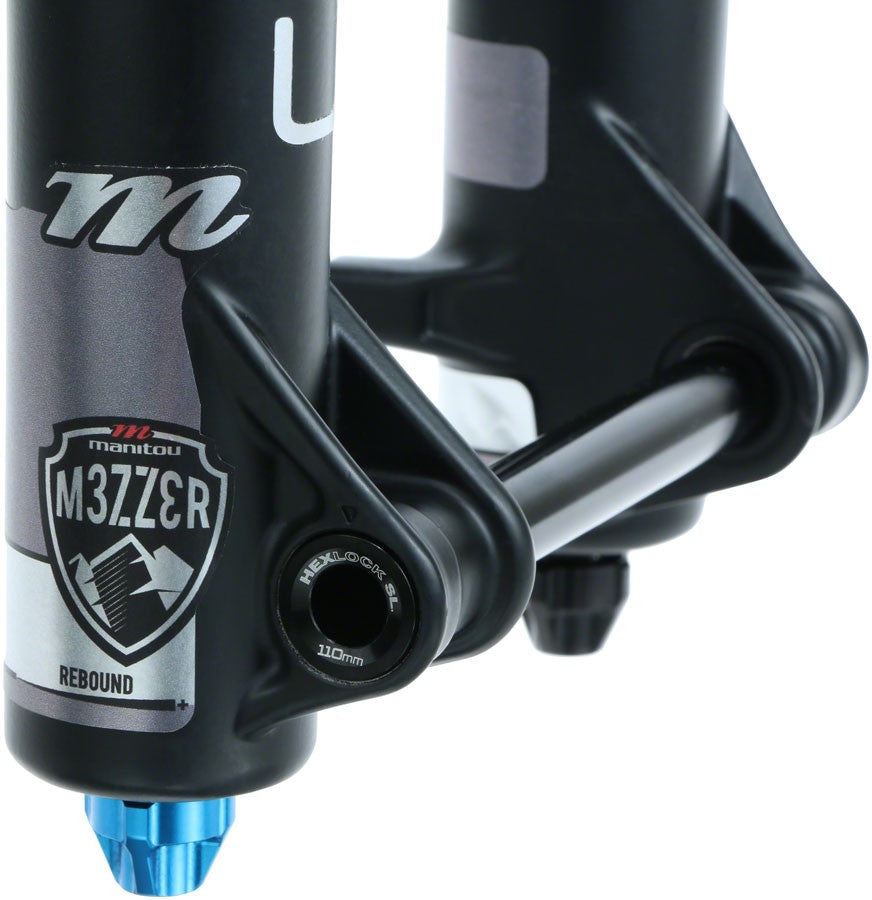

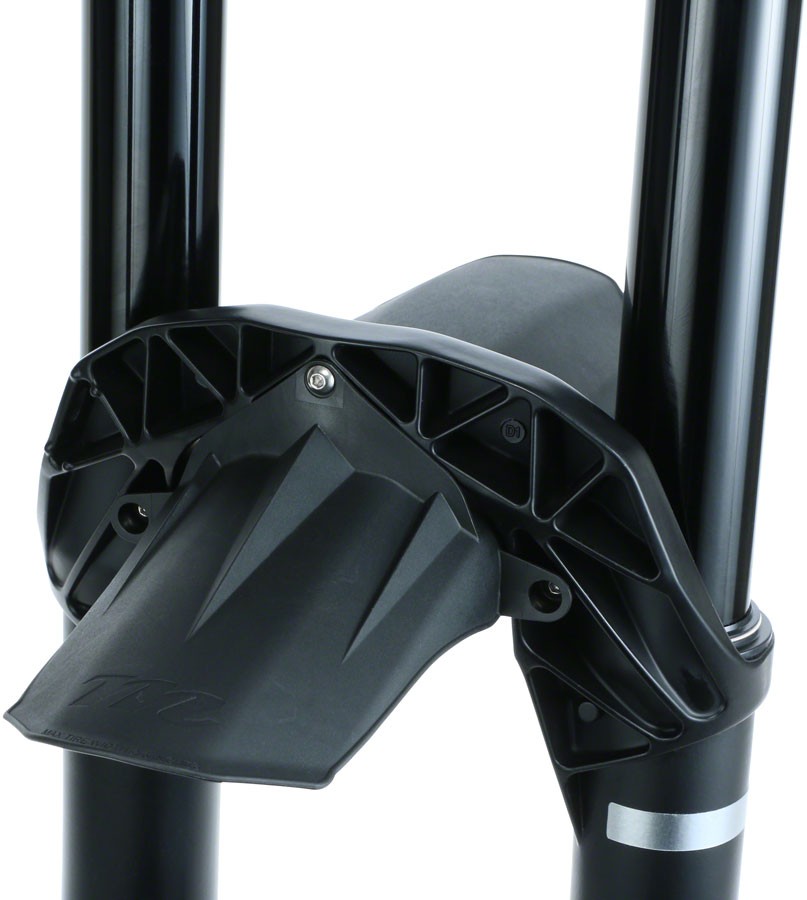

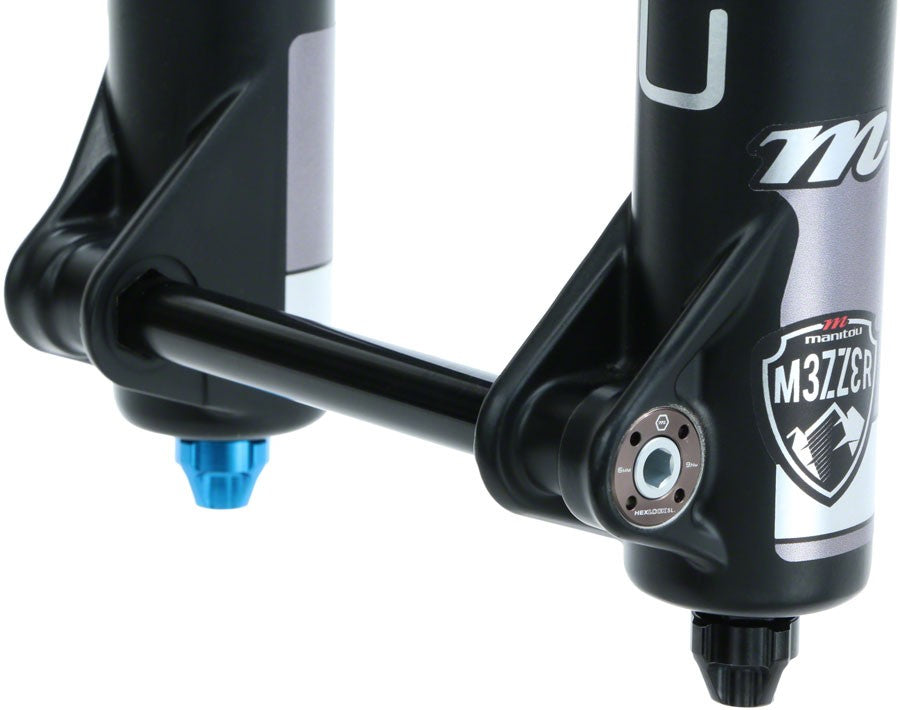

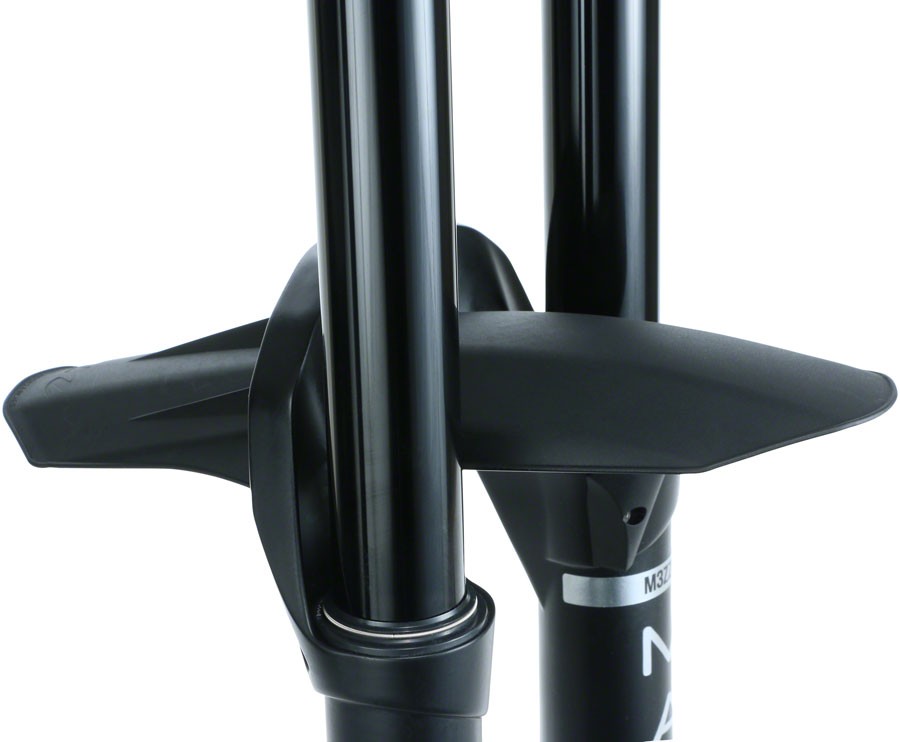

Built with 37mm stanchions, Reverse-Arch lower leg design, and Hexlock SL2 axle for maximum chassis stiffness.

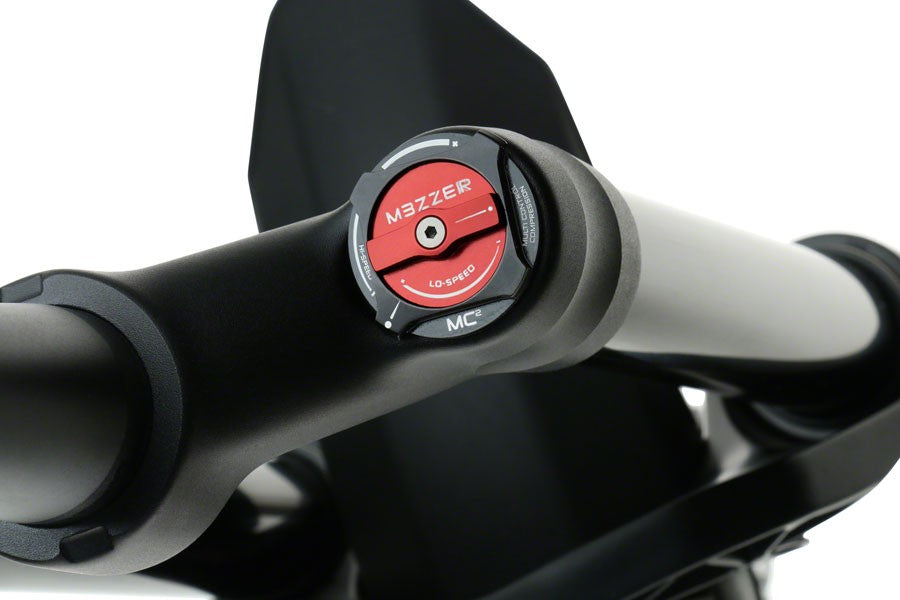

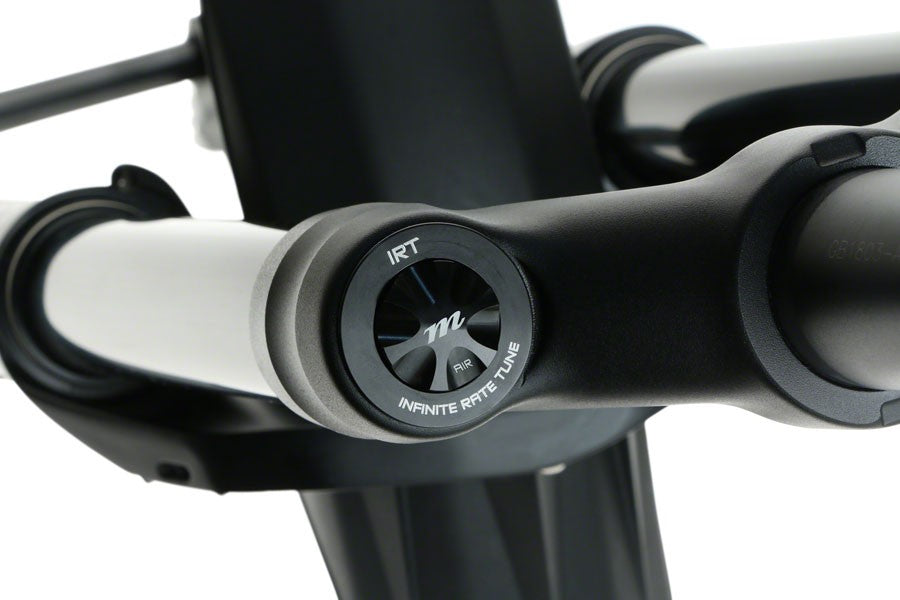

Features fully adjustable IRT air spring for precise ride tuning and sealed MC2 damper with separate high- and low-speed adjustments.
Compatible with 27.5" wheels and a 15x110mm front thru-axle for secure and reliable fitment.
Includes a 44mm offset and tapered steerer tube with a 28.6mm stem clamp diameter to fit a variety of setups.
ITEM SPECIFICATIONS
STEERER TYPE Tapered
LOCKOUT SWITCH None
BRAKE TYPE Post Mount 180
NEGATIVE SPRING Air
TRAVEL (MM) 180
OFFSET 44
AXLE TO CROWN LENGTH 574
FRONT AXLE 15mm Thru X 110mm
MAXIMUM TIRE WIDTH 74
S.H.I.S. STEM CLAMP DIAMETER 28.6
COLOR Black
CROWN RACE 40
WEIGHT 2000
WHEEL SIZE 27.5"
DESIGNED FOR EBIKE Yes
EXTERNAL ADJUSTMENTS Low Speed Compression Damping
EXTERNAL ADJUSTMENTS High Speed Compression Damping
EXTERNAL ADJUSTMENTS Rebound Damping
DEFINED COLOR Black
POSITIVE SPRING Air
STANCHION DIAMETER 37
STEERER TUBE LENGTH (MM) 248
