Product details
Detailed Specifications:
Brand: Fox Racing Shox

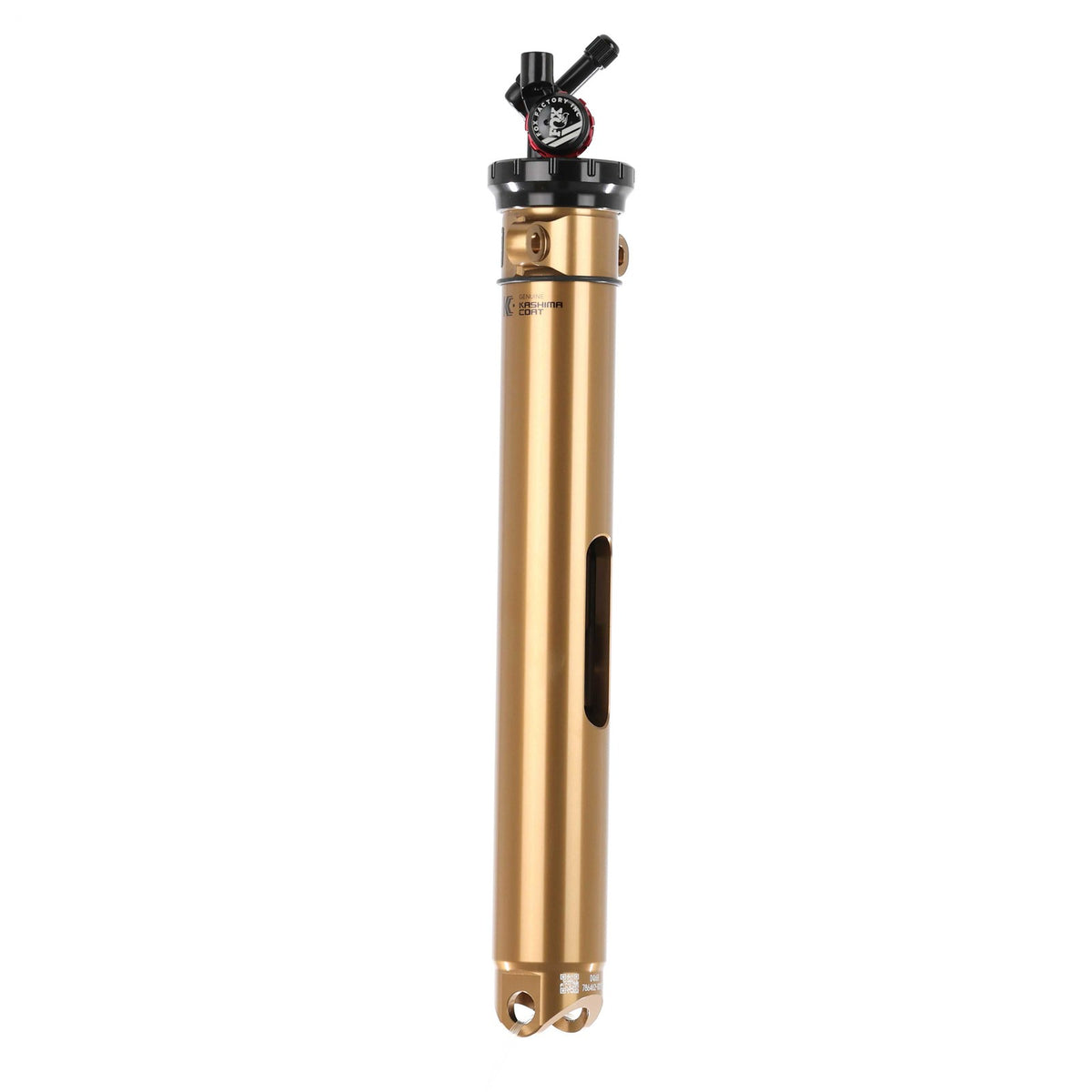

Model: FLOAT IsoStrut Factory Series A Remote PTL (Push-to-Lock)
Series: 2021 Factory Series — Genuine Kashima Coat
Part Number: 972-61-257

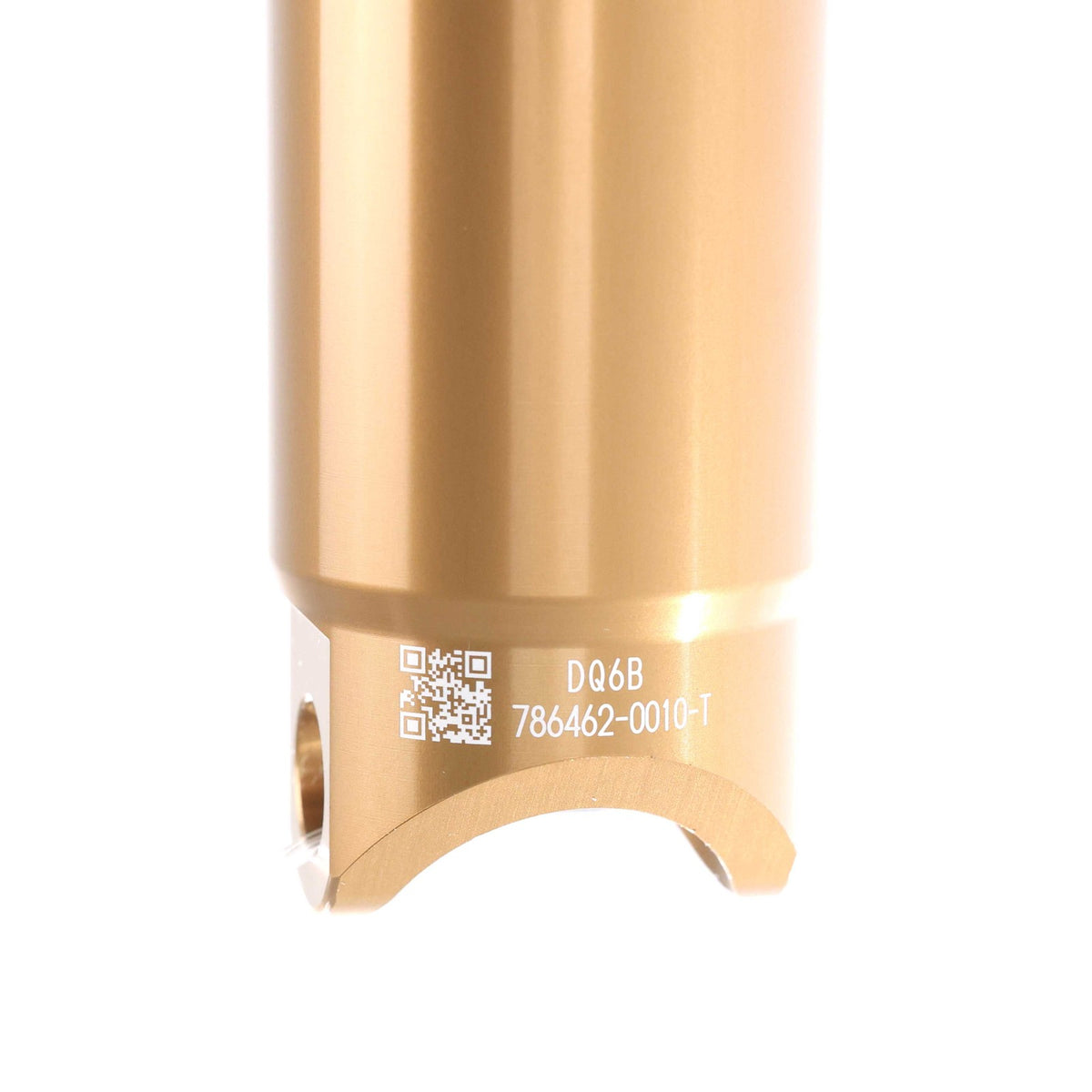

Example Serial Number: 1012985-0030-T (Example Only – may differ per unit)
Frame Compatibility: Trek Supercaliber / eCaliber Gen 1 (Small frame only)
Shock Length: 235 mm (strut length)
Damper Length: 135 mm
Stroke / Travel: 32.5 mm
Outer Diameter: 36 mm
Rotation / Eyelet Angle: 60° (specific to Small frame geometry)
Spacer Configuration: 0.1 Spacer
Damper Type: FLOAT IsoStrut with Charger Race Day Remote PTL Damper

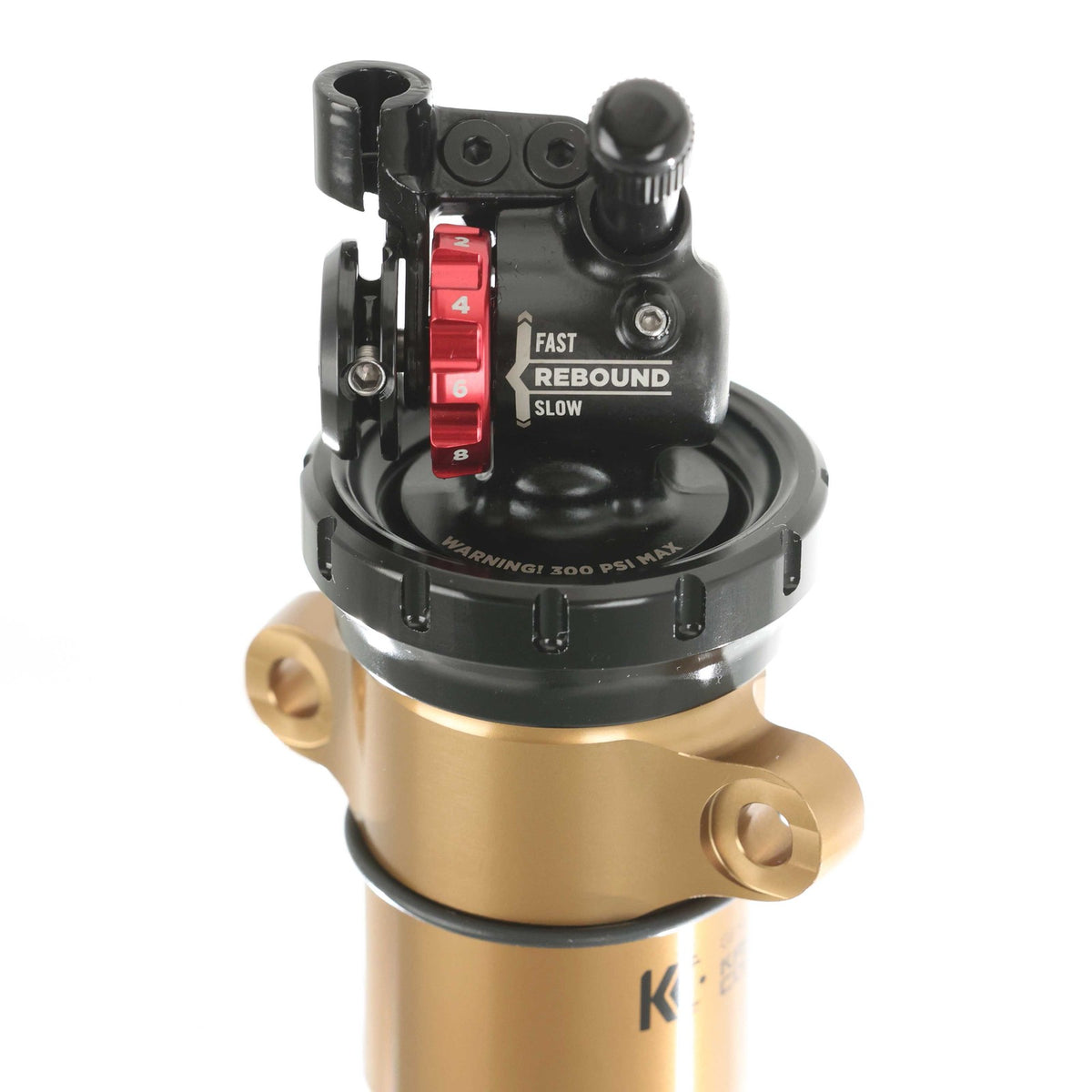

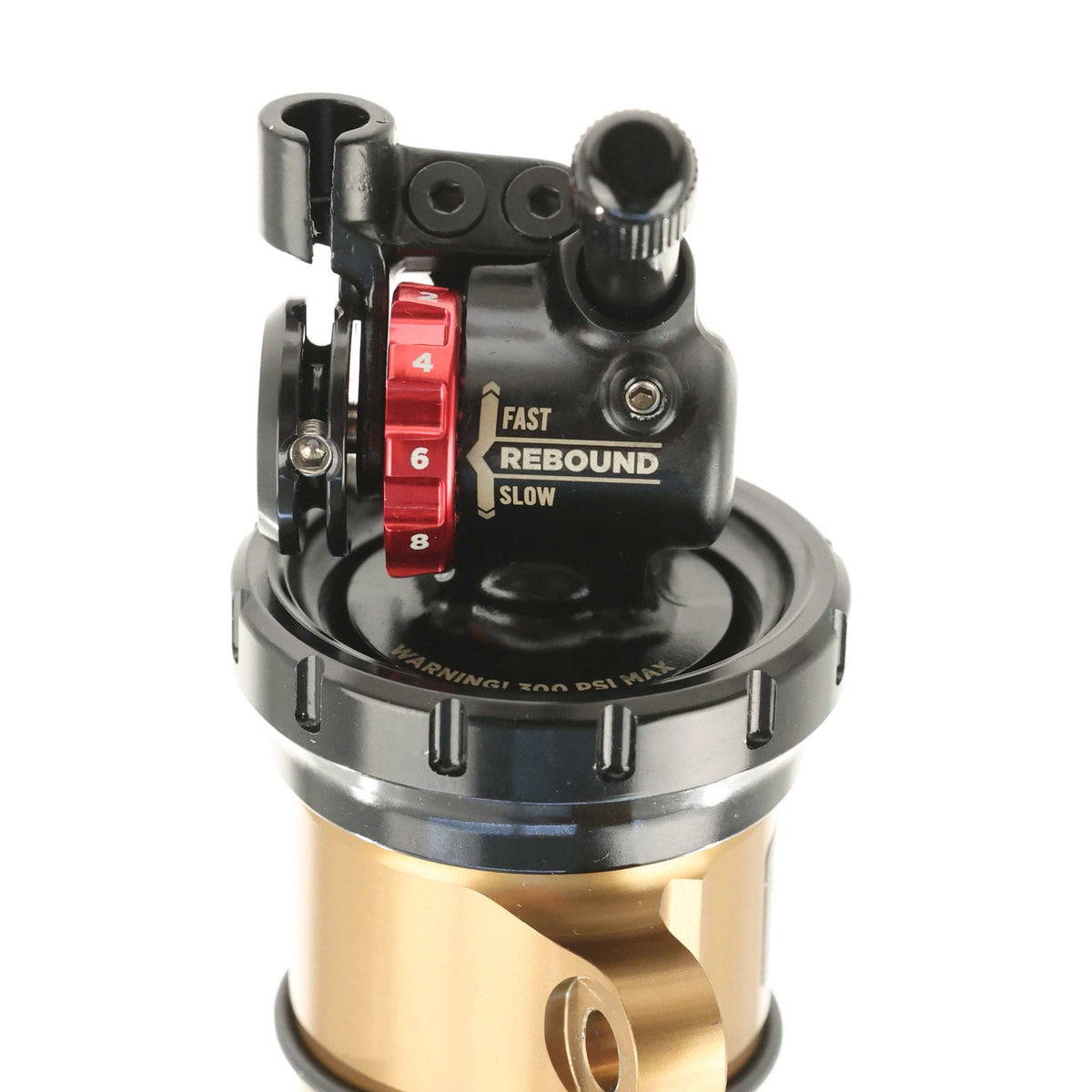

Adjustments: External rebound, 2-position remote compression (Open / Lock)
Air Spring: FLOAT Air Spring
Axle / Mount Type: Proprietary Trek IsoStrut integrated design
Material: Forged aluminum body with Kashima-coated aluminum stanchion
Color: Gloss black body / Gold anodized stanchion
Intended Use: Cross-Country / Marathon / Light Trail
Additional Features:

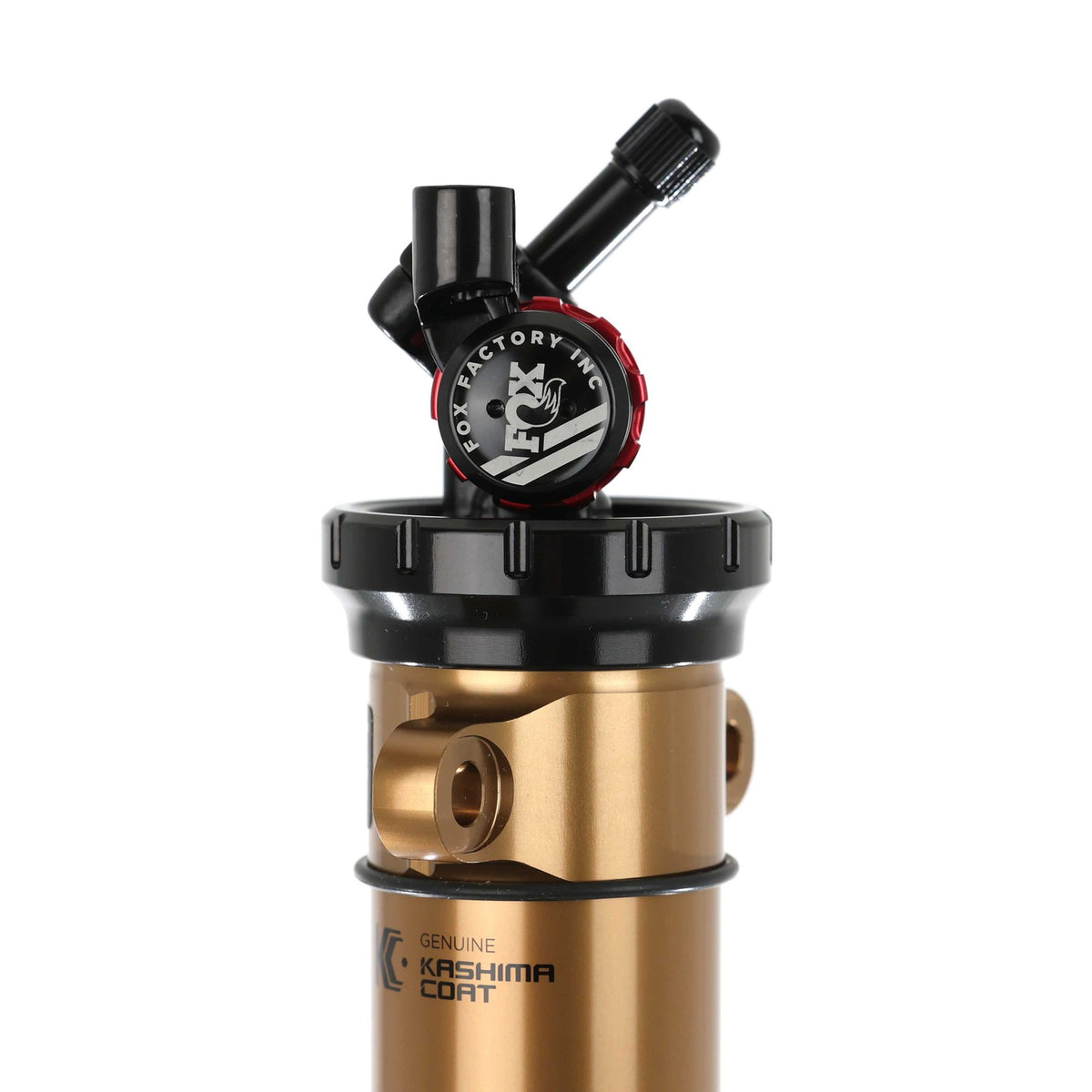

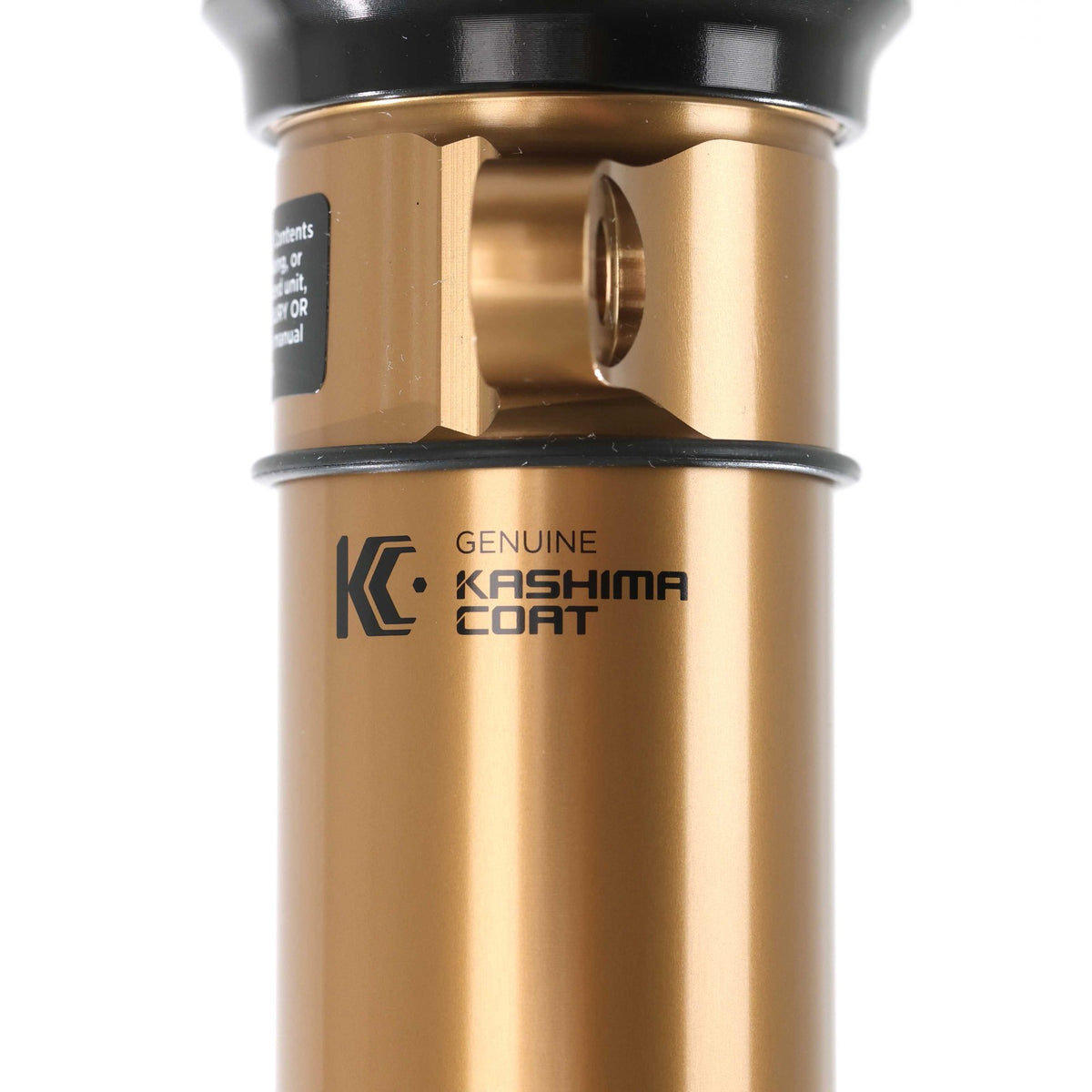

Factory Series performance: Fox’s premium-level damper with genuine Kashima Coat for reduced friction and superior wear resistance.
FLOAT air spring provides tunable support and sensitivity for lightweight XC control.
Remote PTL (Push-to-Lock) system delivers instant lockout and firm platform for sprinting and climbing.
Integrated IsoStrut design maximizes frame stiffness and improves rear-end tracking precision.
Race Day Damper tuned specifically for Trek’s Supercaliber/eCaliber Gen 1 suspension kinematics.
36 mm outer body diameter provides structural rigidity while maintaining low weight.
Factory-built and serviceable by Fox or Trek service centers worldwide.
Important Usage Notes:
Fits Trek Supercaliber and eCaliber Gen 1 (Small) frames only.
60° rotation/eyelet orientation is specific to Small frame geometry and not compatible with Medium or Large.
Not compatible with Gen 2 Supercaliber or other eye-to-eye rear shocks.
Requires Fox remote lockout lever and cable (sold separately).
Installation should be performed by a Trek or Fox-certified technician to ensure proper alignment and function.
Riding Impressions:
The Fox FLOAT IsoStrut Factory Series defines top-tier XC performance with unmatched smoothness and pedaling efficiency. The Kashima-coated stanchion minimizes friction, giving riders a supple yet precise feel throughout the stroke. With the remote PTL lockout, riders can switch instantly between plush control and sprint-ready stiffness. It’s the choice for racers and performance-focused riders seeking the best from their Supercaliber or eCaliber Gen 1 platform.
Disclosure:
This listing includes one genuine Fox FLOAT IsoStrut Factory Series A Remote PTL Rear Shock (235 mm).
Example serial number provided for reference — actual unit number may differ.
Non-retail packaged – includes only what is shown in photos.
Designed for Trek Supercaliber/eCaliber Gen 1 Small frames only.
Remote lockout lever, mounting hardware, and bolts not included.
Professional installation recommended.
$249.95
NEW
Fox
Powered by Frooition
Item specifics
| Condition | New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... |
|---|---|
| Brand | Fox |
| Item Weight | 3.0000 |
| MPN | 5252563 |
| Size | 235m x 32.5mm |
| Country of Origin | Taiwan |
